1-1

IM MX100-01E

Explanation of Functions

Index

Chapter 1 Explanation of Functions

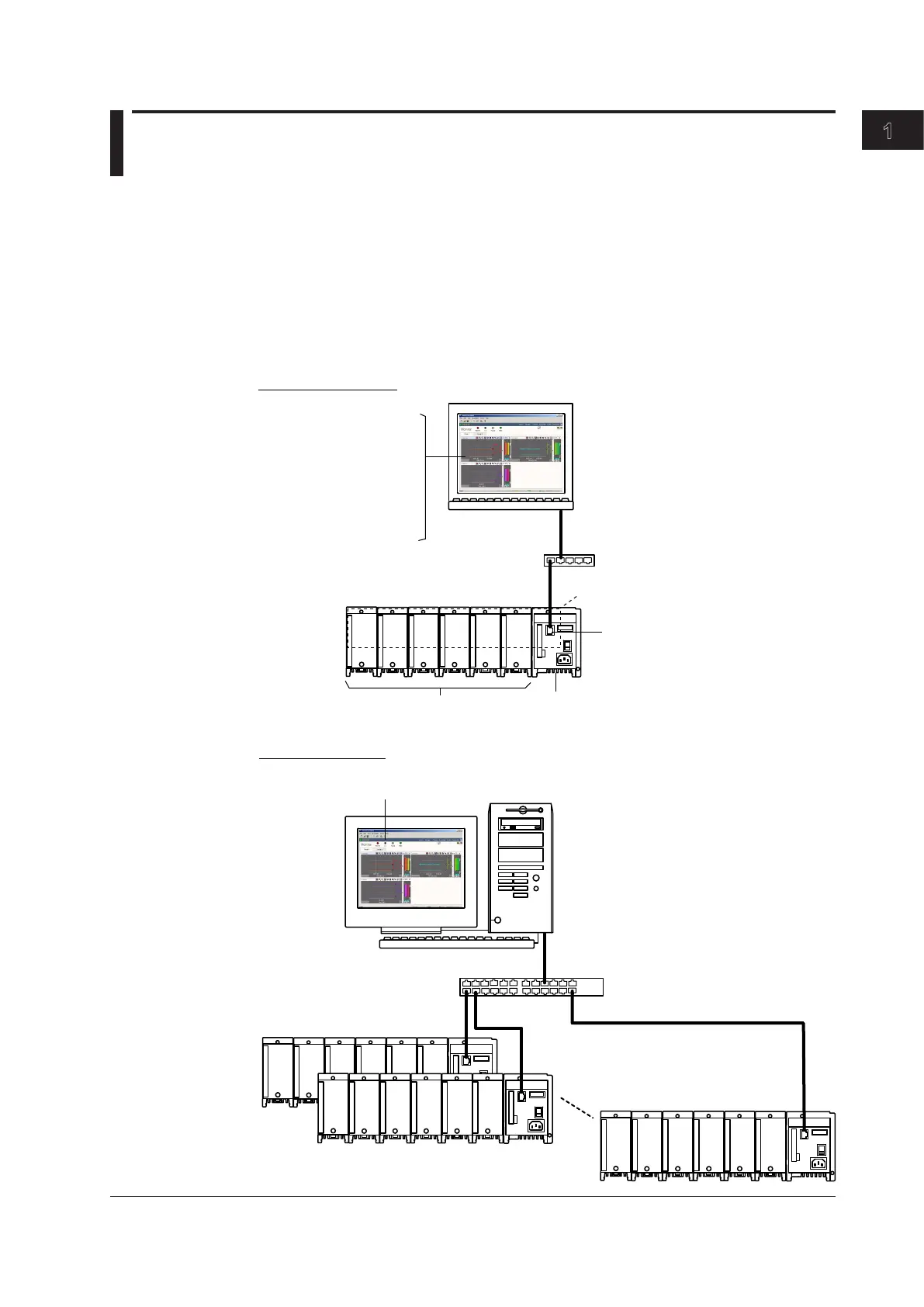

1.1 Overview of the MX100 Data Acquisition Unit

The MX100 Data Acquisition Unit consists of (1) the main module equipped with an

Ethernet port, (2) input/output modules that perform input or output of signals, and (3) the

base plate that attaches and connects the modules. By connecting the main module and

a PC via the Ethernet interface and installing one of the dedicated software programs

indicated below into the PC, you can configure the acquisition conditions of the measured

data from the PC as well as monitor and acquire the measured data on the PC. One to

twenty MX100 Data Acquisition Units can be connected to a single PC (one unit using

the MX100 Standard Software, or one to twenty units (or up to 1200 input channels)

using MXLOGGER).

MX100

One-to-one connection

One-to-N connection

• MX100 Standard

Software

• MXLOGGER (sold

separately)

• Software created using

the API for the

MX100/DARWIN

(sold separately)

Connect up

to 20 units

Hub

MX100 Data Acquisition

Unit

Input/Output module

Main module

Base plate

Ethernet port

MX100 Data Acquisition

Unit

• MXLOGGER (sold separately)

• Software created using the API for the MX100/DARWIN (sold separately)
