4.3 Base Plate Specifications
Number of main modules that can be attached:
1 (always attached)
Number of input/output modules that can be attached:
 1to6(speciedbythesufxcode)
External dimensions: Approximately 118-408 (W) × 75 (H) × 35 (D) mm
Weight: Approximately 0.37 kg (1 main module, for connecting six
input/output modules)

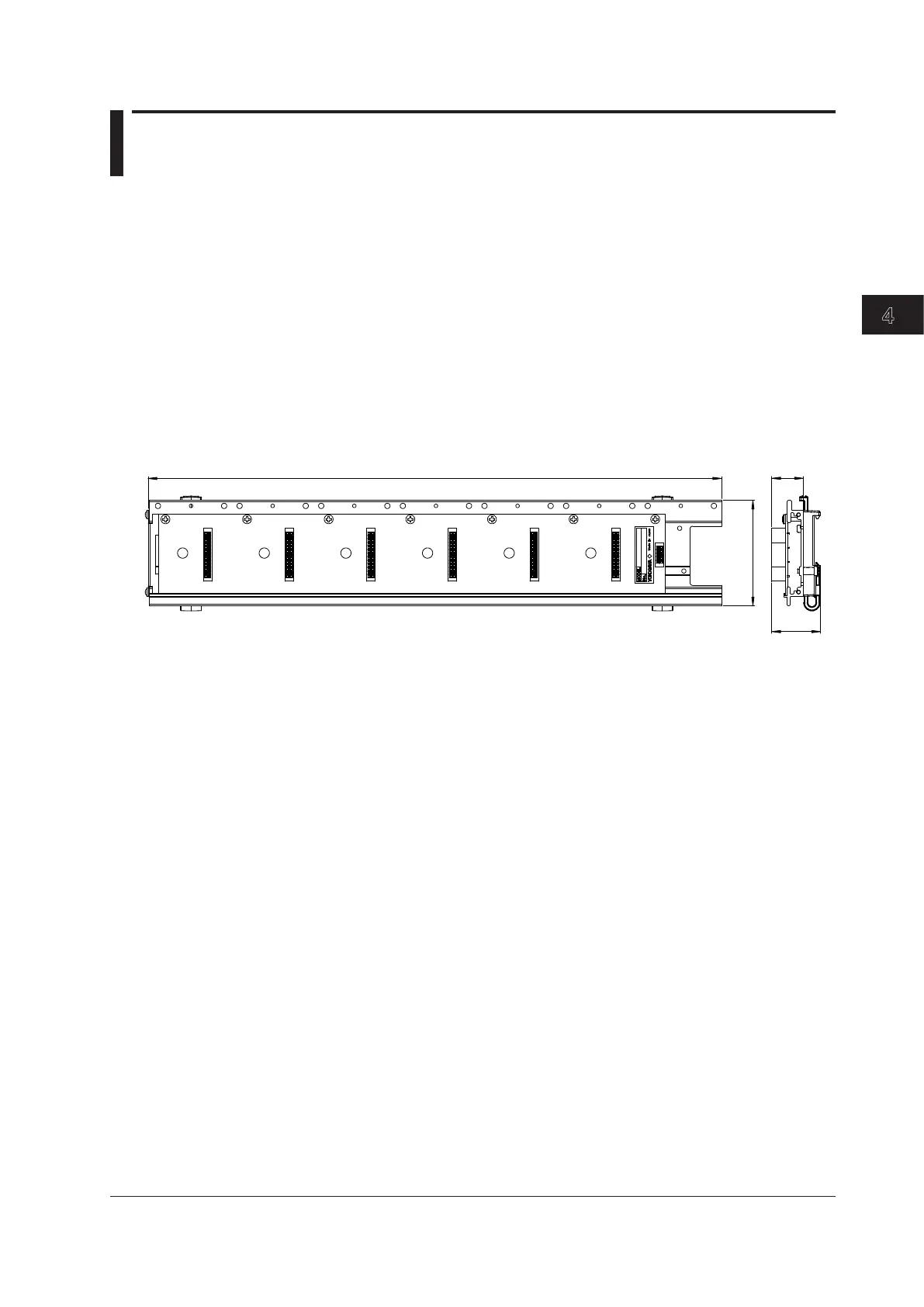

External Dimensions
Unit: mm
22.5
75
34.6
MX150-1, -2, -3, -4, -5, -6
407.5 (1 main module, for connecting six input/output modules)
58 pitches in between
117.5 (1 main module, for connecting one input/output module)
Ifnotspecified,thetoleranceis±3%.However,incasesoflessthan10mm,the
toleranceis±0.3mm.
