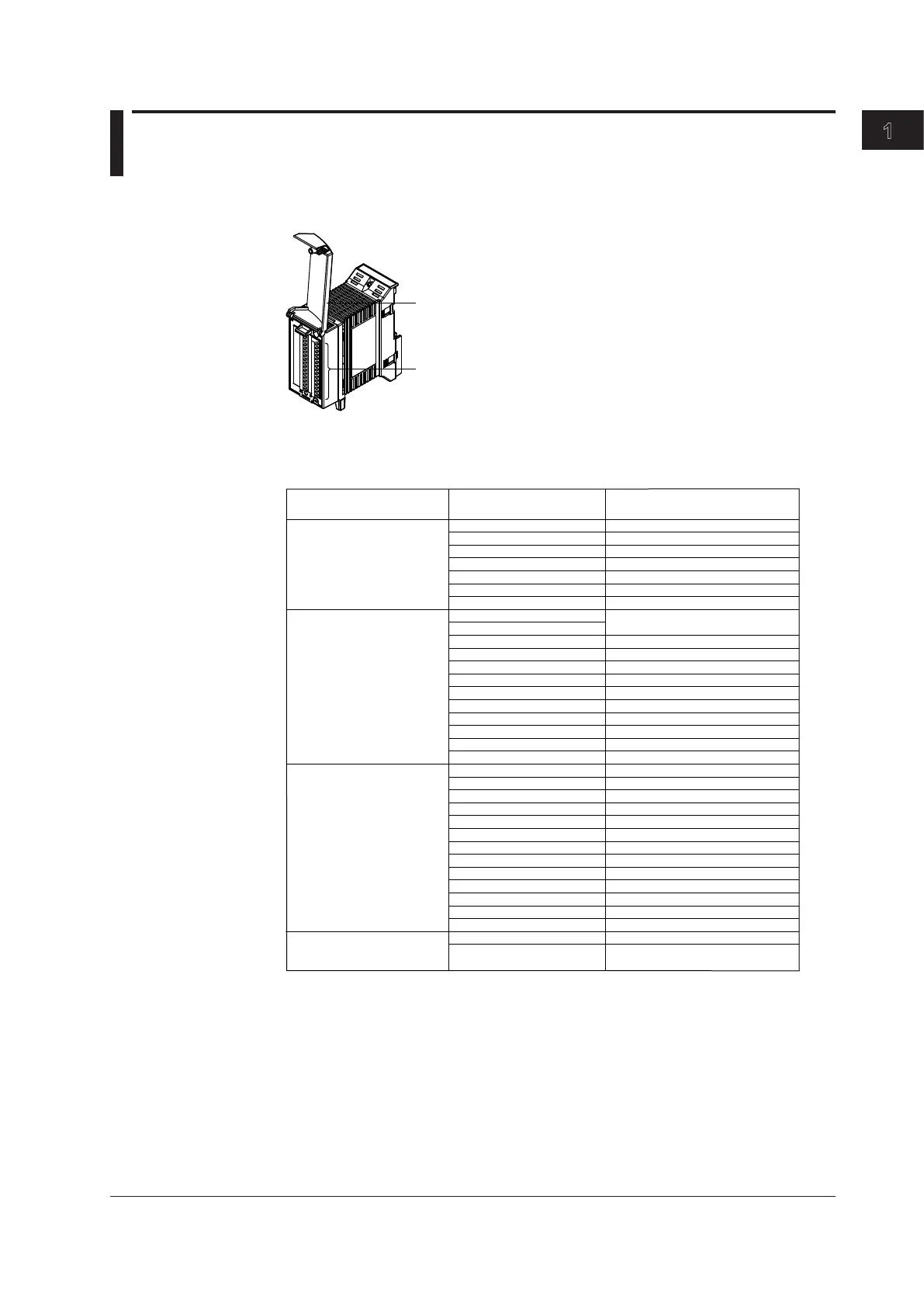

1.4 Functions of the 10-CH, Medium-Speed
Universal Input Module
This module is equipped with ten inputs and measures DC voltage, TC, three-wire RTD,
and digital input (DI) at a minimum measurement interval of 100 ms.
Input terminal (clamp terminal)
Terminal cover
Input Type and Measurement Range
The following measurements are possible.
Input
DC voltage
20 mV
60 mV
200 mV
2 V
6 V
20 V
100 V
R
S
B
K
E
J
T
L
U
N
W
KPvsAu7Fe
Pt100
JPt100
Pt100 (high resolution)
JPt100 (high resolution)
Ni100 SAMA
Ni100 DIN
Ni120
Pt50
Cu10 GE
Cu10 L&N
Cu10 WEED
Cu10 BAILEY
J263B
Level
Contact input
-20.000 to 20.000 mV
-60.00 to 60.00 mV
-200.00 to 200.00 mV
-2.0000 to 2.0000 V
-6.000 to 6.000 V
-20.000 to 20.000 V
-100.00 to 100.00 V
0.0 to 1760.0°C
0.0 to 1820.0°C
-200.0 to 1370.0°C
-200.0 to 800.0°C
-200.0 to 1100.0°C
-200.0 to 400.0°C
-200.0 to 900.0°C
-200.0 to 400.0°C
0.0 to 1300.0°C
0.0 to 2315.0°C
0.0 to 300.0K
-200.0 to 600.0°C
-200.0 to 550.0°C
-140.00 to 150.00°C
-140.00 to 150.00°C
-200.0 to 25.00°C
-60.0 to 180.0°C
-70.0 to 200.0°C
-200.0 to 550.0°C
-200.0 to 300.0°C
-20 0.0 to 300.0°C
-200.0 to 300.0°C
-200.0 to 300.0°C
0.0 to 300.0K
Vth = 2.4 V
ON: 1 kΩ or less, OFF: 100 kΩ or more
(parallel capacitance: 0.01 µF or less)
Rated Measurement Range
DI
RTD
(Measurement current:1 mA)
Thermocouple
Measurement Range Type
