YOKOGAWA MX100 User Manual

4-22
IM MX100-01E
4.9 8-CH, Medium-Speed Analog Output Module
Specifications
Style number: S2
Number of outputs: 8
Update interval: Output per 100 ms (not synchronized to the measurement interval)
Output types: DC voltage, DC current (external 24-V power supply required
when using current output)
Rated output range: Voltage: -10 to 10 V
Current: 0 to 20 mA sourcing (for 1-5 V output, 4-20 mA is output)
Max. output range: Voltage: -11 to 11 V, Current: 0 to 22 mA
Loadimpedance: Voltage5kΩormore,Current600Ωorless
Accuracy: ±0.2%ofFSattheratedoutputrangeorless(F.S.=10Vor20
mA). However, for current output, accuracy is met at 1 mA or more.
The accuracy applies to standard operating conditions:
 ambienttemp:23±2°C,ambienthumidity:55±10%RH,supplyvoltage:
90to250VAC,powerfrequency:50/60Hz±1%,warm-uptime:at
least 30 minutes, without adverse conditions such as vibrations.
Output resolution: 12 bits of F.S. or more
Setting resolution is as follows (the actual module resolution is
rounded).
PC Software: -10.000 V to 10.000 V (1 mV resolution)
0.000 mA to 20.000 mA (1 mA resolution)
API, MX main unit: Set-10 V to 10 V with -20000 to 20000 digits
(or approx. 2000 - 10000 digits for 4-20 mA)
Effectsofambienttemperature:±(50ppmofsetting+50ppmofF.S.)perdegreeCor
less (F.S. = 10 V or 20 mA)
Externalpowersupply:24V±10%(requiredwhenusingcurrentoutput)
Connect a device with ampacity of 250 mA or more.
Insulationresistance: 20MΩormore(500VDC)betweenoutputterminalandearth
Across output terminals: non-isolated (- terminal common potential)
Withstand voltage: 2300 VAC (50/60 Hz) for one minute between the output terminal
and earth
Across output terminals: non-isolated (- terminal common potential)
Power consumption: Approx. 2.5 W (not including power consumption of external
power supply)
Terminal type: Clamp, attached and removed in units of 4 channels
Applicable wire size: 0.08 to 2.5 mm
2
(AWG28 to 12)
External dimensions: Approx. 57 (W) × 131 (H) × 151 (D) mm (including the terminal cover)
Weight: Approximately 0.5 kg

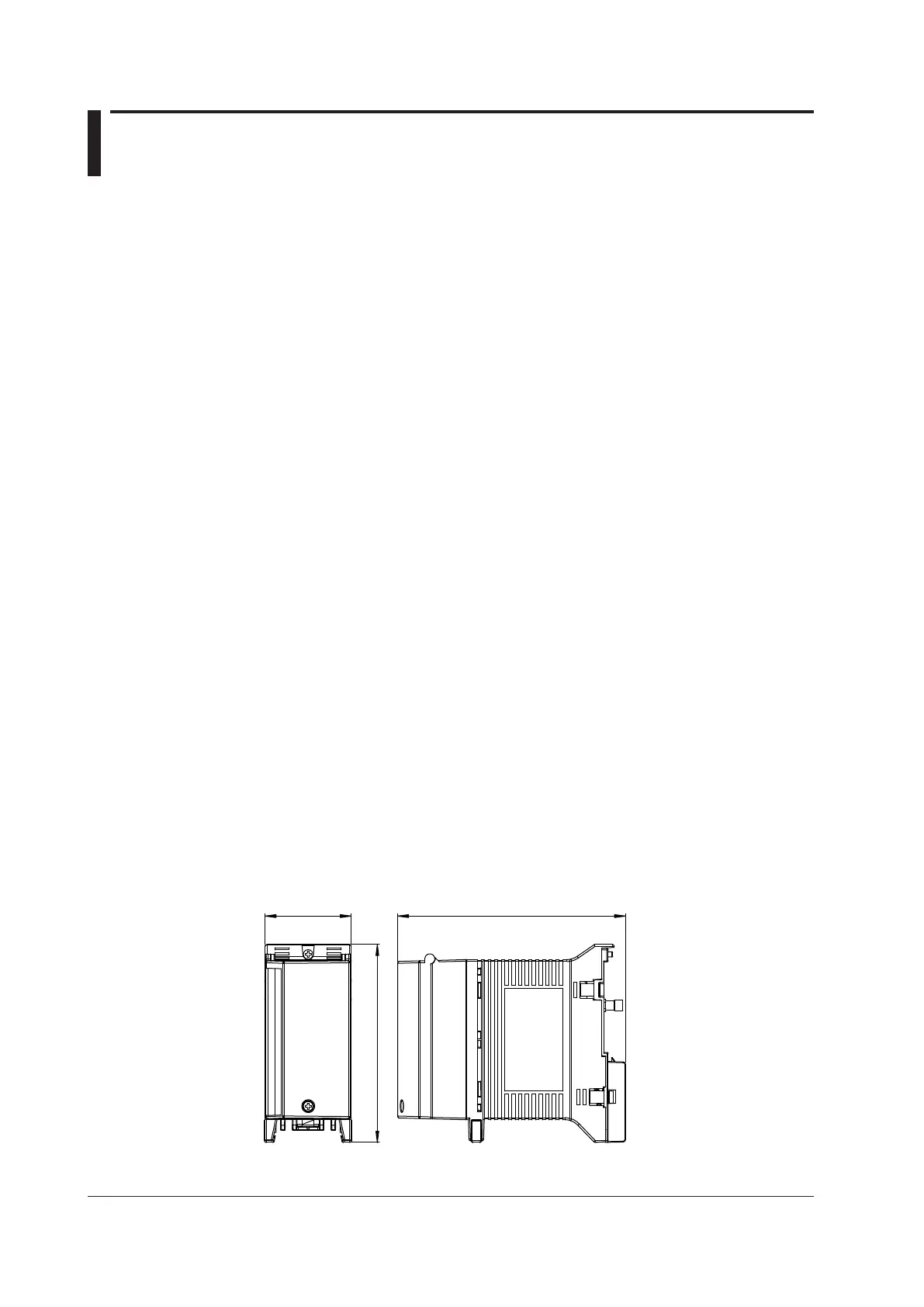

External Dimensions
Unit: mm
57
131
150.8
Ifnotspecified,thetoleranceis±3%.However,incasesoflessthan10mm,the
toleranceis±0.3mm.
