1-17
IM MX100-01E
Explanation of Functions
3
2
1
4
5
Index

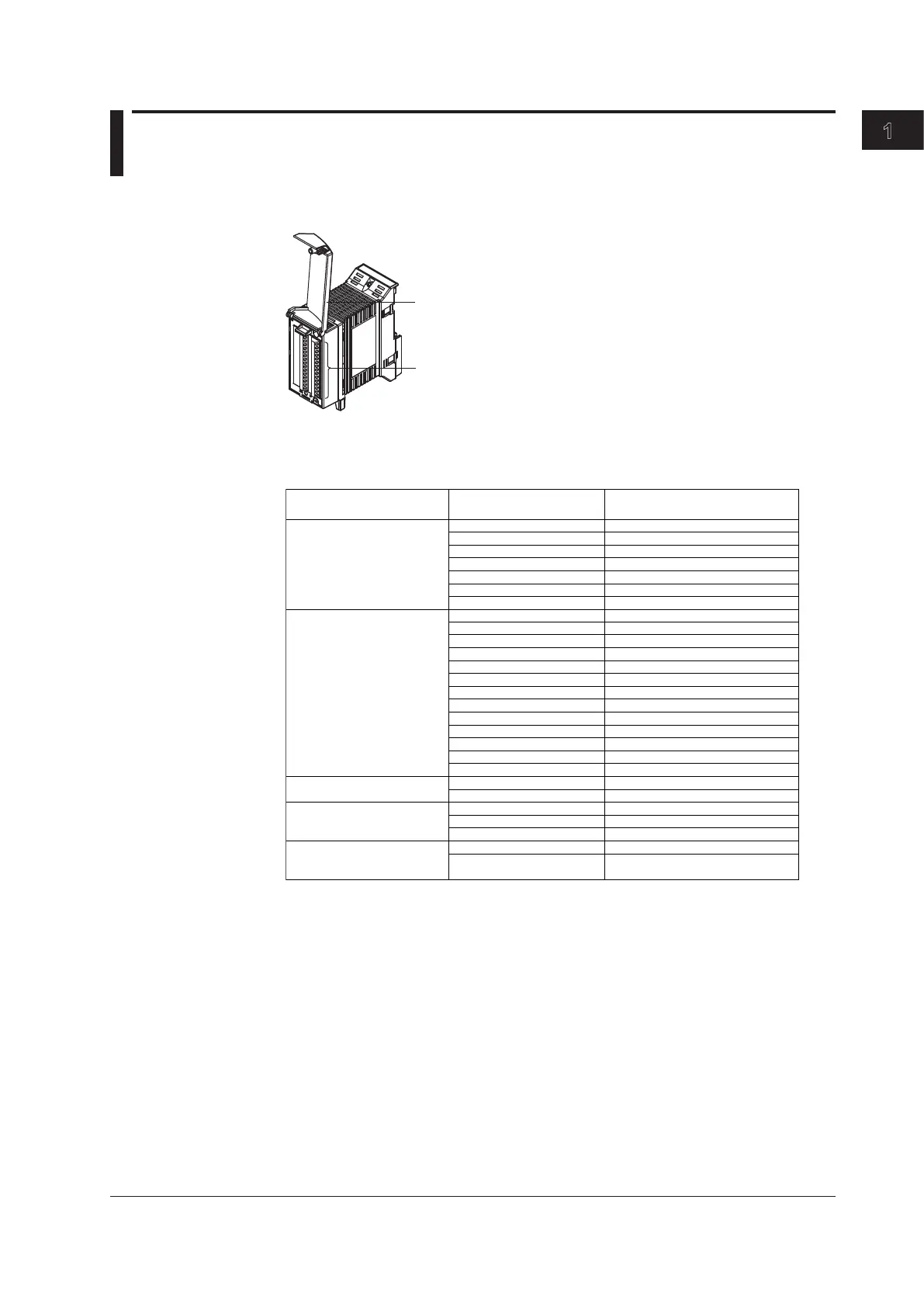

1.5 Functions of the 6-CH, Medium-Speed Four-
Wire RTD Resistance Input Module
This module is equipped with six inputs and measures DC voltage, four-wire RTD, four-
wire resistance, and digital input (DI) at a minimum measurement interval of 100 ms.
Input terminal (clamp terminal)
Terminal cover
Input Type and Measurement Range
The following measurements are possible.
20mV
60mV
200mV
2V
6V
20V
100V
Pt100
JPt100
Pt100 (high resolution)
JPt100 (high resolution)
Ni100 SAMA
Ni100 DIN
Ni120
Pt50
Cu10 GE
Cu10 L&N
Cu10 WEED
Cu10 BAILEY
J263B
Pt500
Pt1000
20Ω
(Measurement current: 1mA)
200Ω
(Measurement current: 1mA)
2kΩ
(Measurement current: 0.25mA)
Level
Contact input
Input
DC voltage
-20.000 to 20.000mV
-60.00 to 60.00mV
-200.00 to 200.00mV
-2.0000 to 2.0000V
-6.000 to 6.000V
-20.000 to 20.000V
-100.00 to 100.00V
-200.0 to 600.0°C
-200.0 to 550.0°C
-140.00 to 150.00°C
-140.00 to 150.00°C
-200.0 to 250.0°C
-60.0 to 180.0°C
-70.0 to 200.0°C
-200.0 to 550.0°C
-200.0 to 300.0°C
-200.0 to 300.0°C
-200.0 to 300.0°C
-200.0 to 300.0°C
0.0 to 300.0K
-200.0 to 600.0°C
-200.0 to 600.0°C
0.000 to 20.000Ω
0.00 to 200.00Ω
0.0 to 2000.0Ω
Vth=2.4V
ON: 1 kΩ or less, OFF: 100 kΩ or more
(parallel capacitance: 0.01 mF or less)
Rated Measument Range
DI
RTD
(Measurement current: 1mA)
*
RTD
(Measurement current: 0.25mA)
*, **
Measument Range Type
Resistance
*
*
**
RTD and resistance are all 4-wire measument
The Pt500 resistance table is Pt100 × 5, and the resistance table for Pt1000 is Pt100 × 10
