5.4 CF Card Data File
File Name
Data files created using the 5s-SW or Dual Save function are named based on the date
and time of creation, as follows.
MDDIXXXX.MXD
M: Month (local time) when file created, 1 to 9, X (October), Y (November),
Z (December)
DD: Date when file created (local time), 1 to 31
I: Meas. interval number 0 to 2
XXXX: Sequence number (incremented by 1 each time new file created)
0000-9999
MXD: Extension (uppercase characters) specific to the MX100
The month and date of backup start is used during normal functioning (see page 4-4).

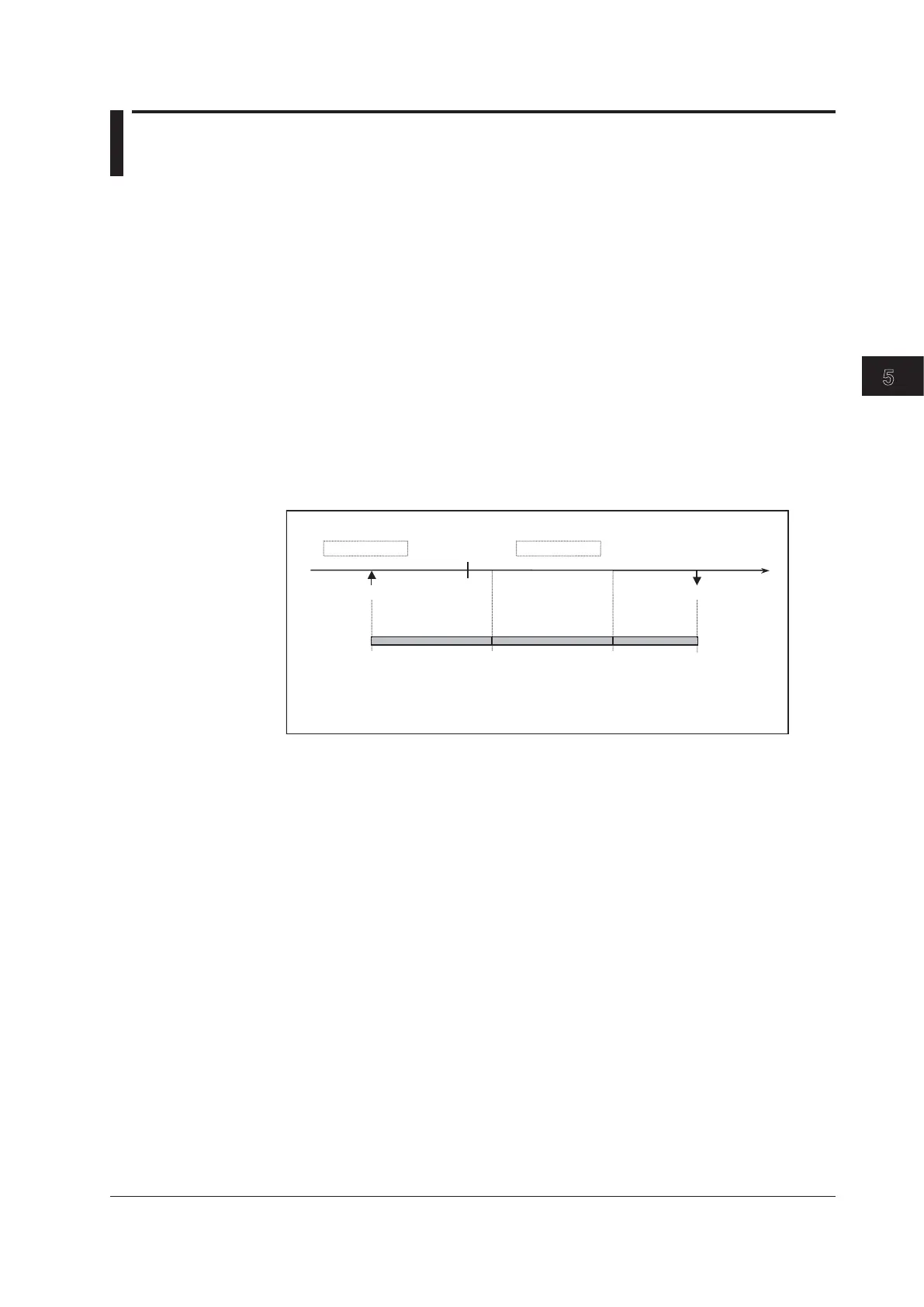

File Name
2004/12/31 2005/01/01
00:00:00
5s-SW 5s-SW
Time
File name “Z3100123.MXD” “10100124.MXD” “10100125.MXD”
CF File Info
FileNo. = 0 FileNo. = 1 FileNo. = 2
“Z3100123.MXD” “Z3100124.MXD” “Z3100125.MXD”
Start New fileNew file
(normal
functioning)
Stop
