2-16
IM MX100-01E

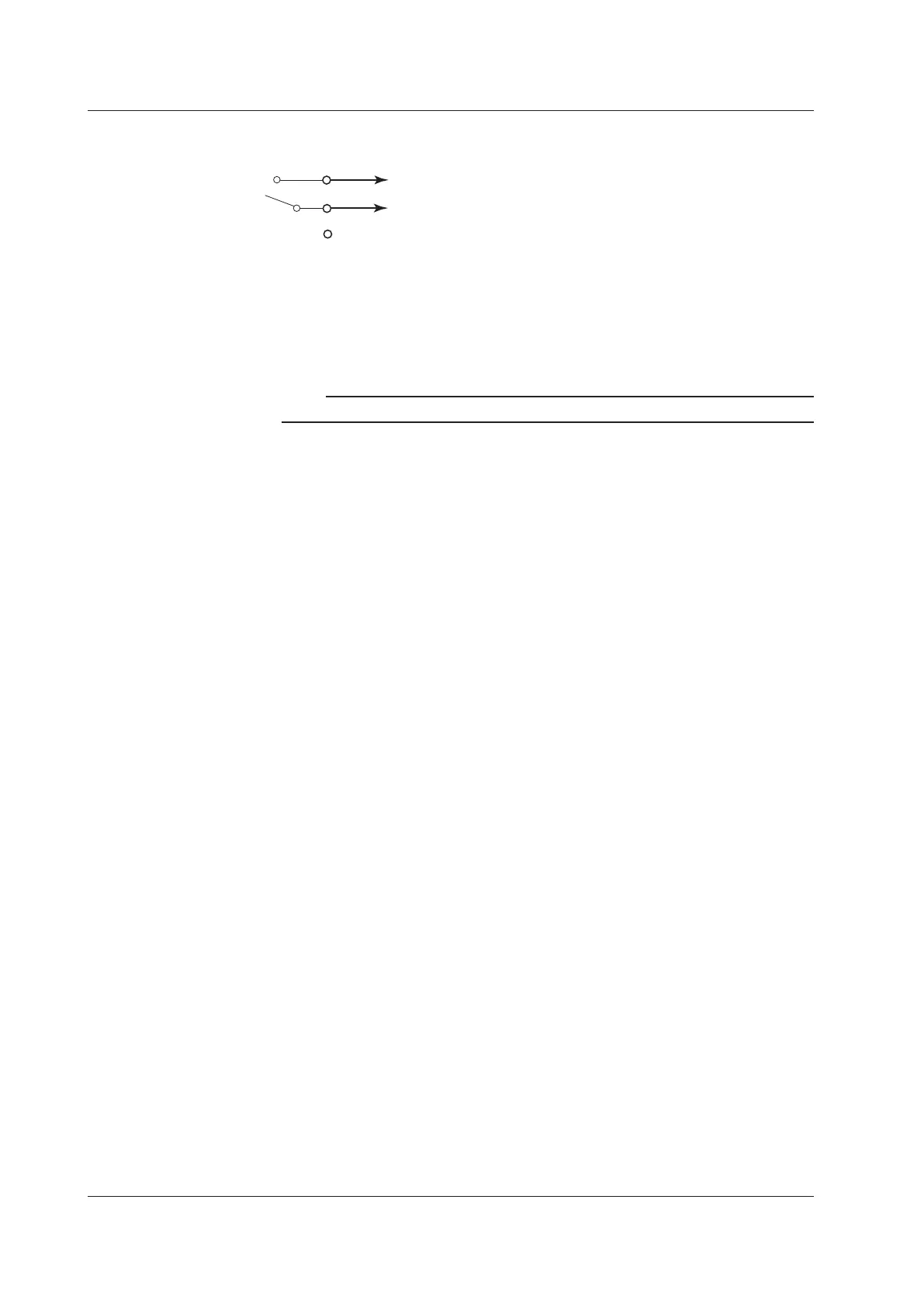

Wiring the Digital Output Modules
C
NO
250 VDC/0.1
A, 250 V
AC/2 A, or
30 VDC/2
A (resistance load)
Main Output Specifications
Contact mode:
A
contact (SPST)
Contact capacity:
250 VDC/0.1
A, 250 V
AC/2
A, or 30 VDC/2
A
(resistance load)
T
erminal type:
Clamp, attached and removed in units of 5 channels
Applicable wire size:
0.08 to 2.5 mm
2
(A
WG28 to 12)
Note
Do not connect anything to the empty terminals of the digital output module.
2.4 Connecting the Signal Wires
