10-CH, Medium-Speed Universal Input Module/
6-CH, Medium-Speed 4-wire RTD Resistance
Input Module/
10-CH, High-Speed Digital Input Module
(-D05, -D24)
8-CH, Medium-Speed Analog
Output Module/
8-CH, PWM Output Module/
10-CH, Medium-Speed Digital
Output Module
The terminal plate can be
attached and detached.
Attachment screw
(Loosen before removing the terminal plate.)
Attachment screw
(Loosen before removing the terminal block.)
Pull-out
handle
The terminal block can be attached and
detached (fixed with screws).
Note
The terminal cover can be removed by pressing backward with the cover lifted up.

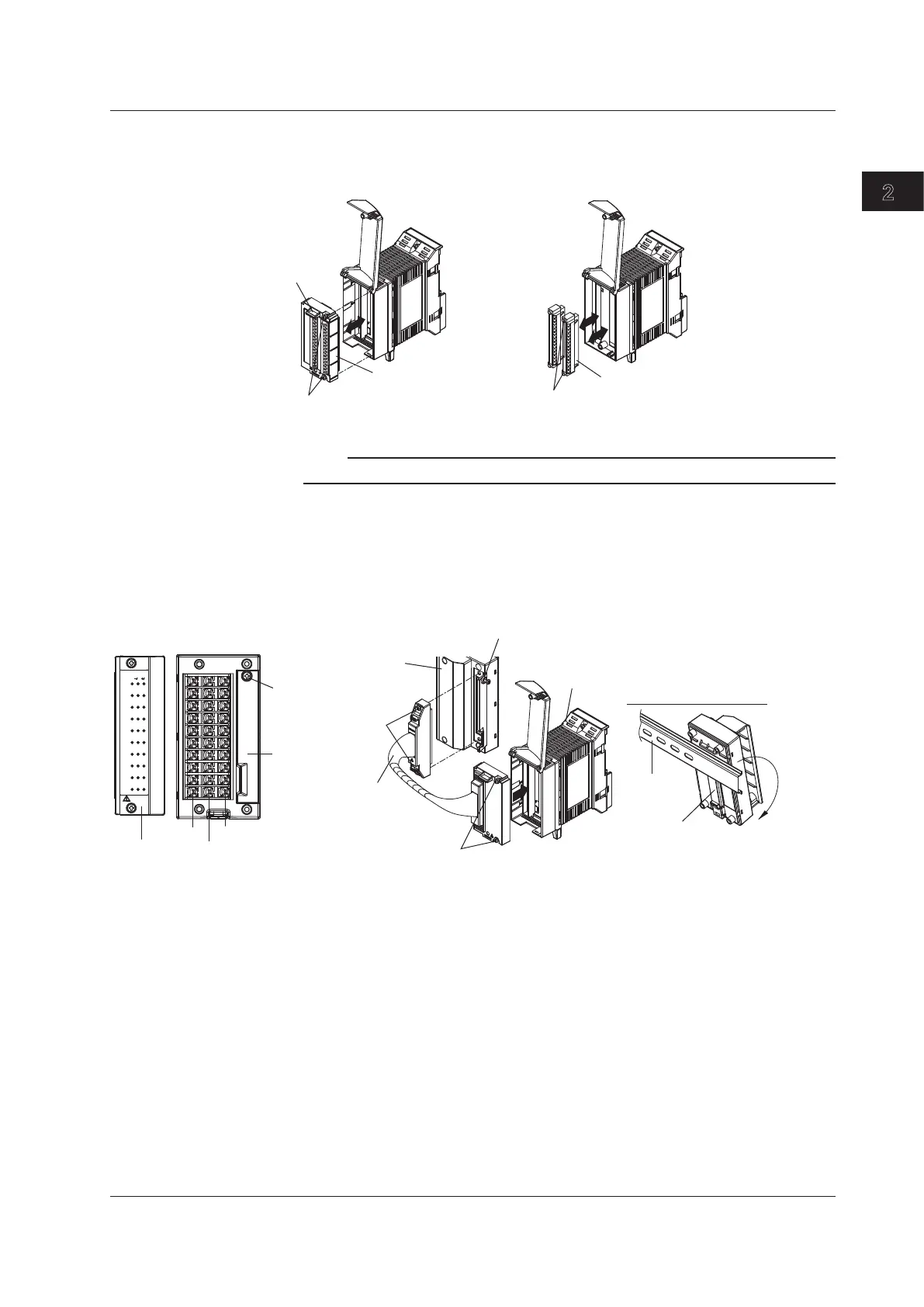

Screw Terminal Block
The 10-CH, Medium-Speed Universal Input modules and 10-CH, High-Speed Digital
Input modules allow you to remove the terminal plate and connect a 10-channel screw
terminal block (M4 screws, sold separately) that can be attached to a DIN rail (see the
figure below).
CH 1
CH 2
CH 3
CH 4
CH 5
CH 6
CH 7
CH 8
CH 9
CH 10
b B A
10-CH, Medium-Speed Universal Input Module/
10-CH, High-Speed Digital Input Module
DIN rail
Latch lever
(Pull down to detach.)
Terminal cover
b
+/A
-/B
10-CH screw terminal block (772061)
10-CH screw terminal
block (772061)
Connection cable
between the input module
and screw terminal block
(772062-0XXX*)
* Length: 050 or 100 cm.
Attachment to a DIN Rail
Connector cover
Attachment screw
for connector cover
Loosen the attachment screw for the connector
cover and open the connector cover.
Attachment screw
Attachment screw
