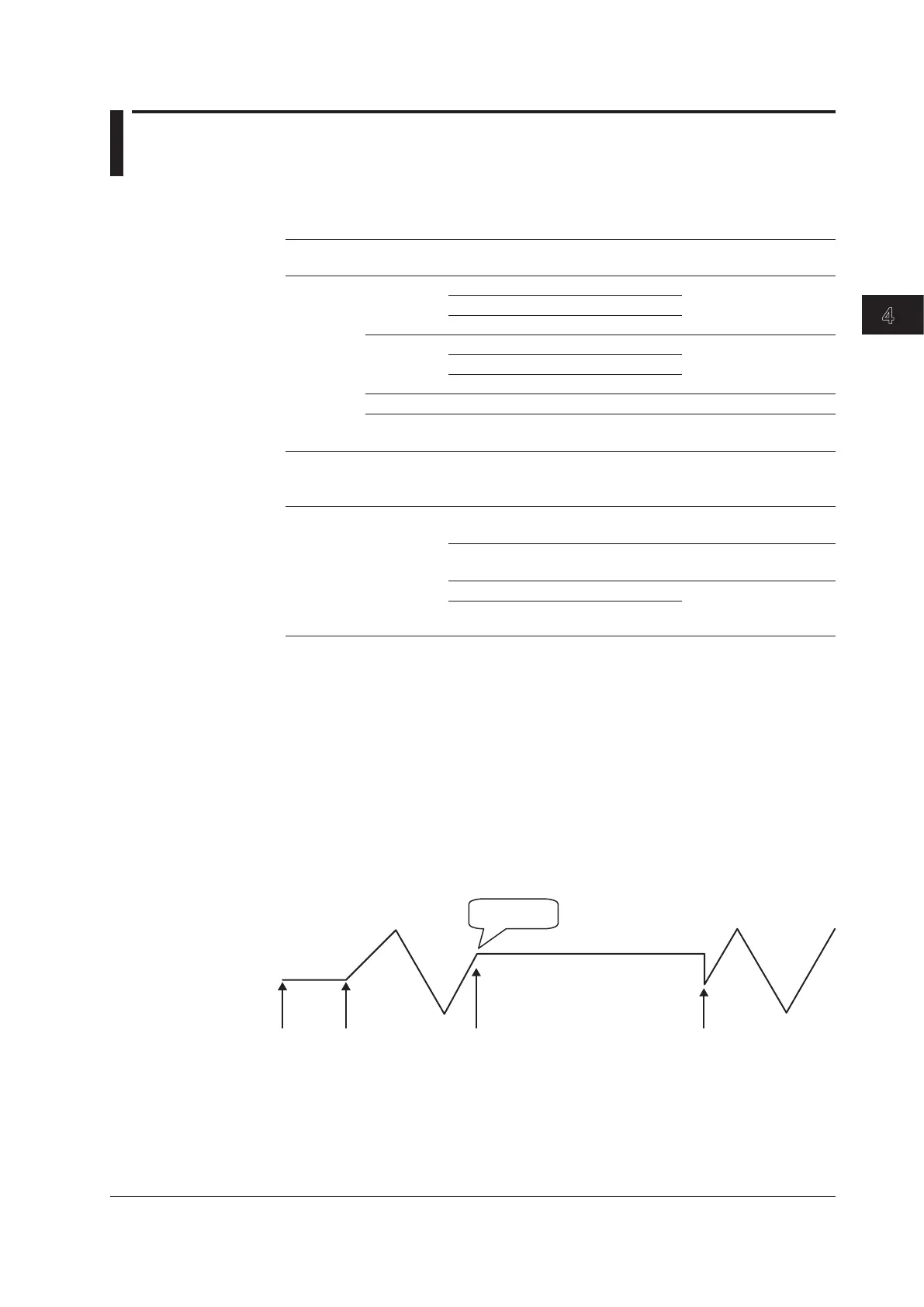

4-27
IM MX100-01E
Specification
4.11 Operations Common to the 8-CH Medium-
Speed Analog Output Module and the 8-CH
Medium Speed PWM Output Module
Specifications Regarding Settings (by Module)
Set Channels Setting Contents Setting Note
(Module)
Output Span AO(V) -10.000-10.000V - -
channels setting AO(mA) 0.000-20.000mA
(AO,PWM) range PWM 0.000-100.000%
Preset value AO(V) -11.000-11.000V -
setting range AO(mA) 0.000-22.000mA
PWM 0.000-100.000%
Setting span (minimum, maximum) specified in reverse Y -
Setting span (minimum, maximum) specified as No -
the same
Input Setting span
Channels
(Input)
Computation Reading of Transmission output channels within No -
Channels in equations units
Transmission output channels between No -
units
Manual output channel Y Depending on
Pattern output channel Y function
dedicated
Specifications Regarding Settings Changes (Automatic Setting upon Change
Event)
When a setting change occurs, transmission output on all channels specified for
transmission output within units is set from disabled to enabled. This operation is
performed even if the channel whose setting was changed is not a transmission output
channel.
Overview of Output Operation When Setting Holding of Previous Value of
Transmission Output
Measurement
start
Measurement
stop
(or Transmission output
execute disabled)
Measurement
restarts
(or Transmission output
execute enabled)
Previous value
(held)
Power ON
Output value
Value held
