YOKOGAWA MX100 User Manual

1-4
IM MX100-01E

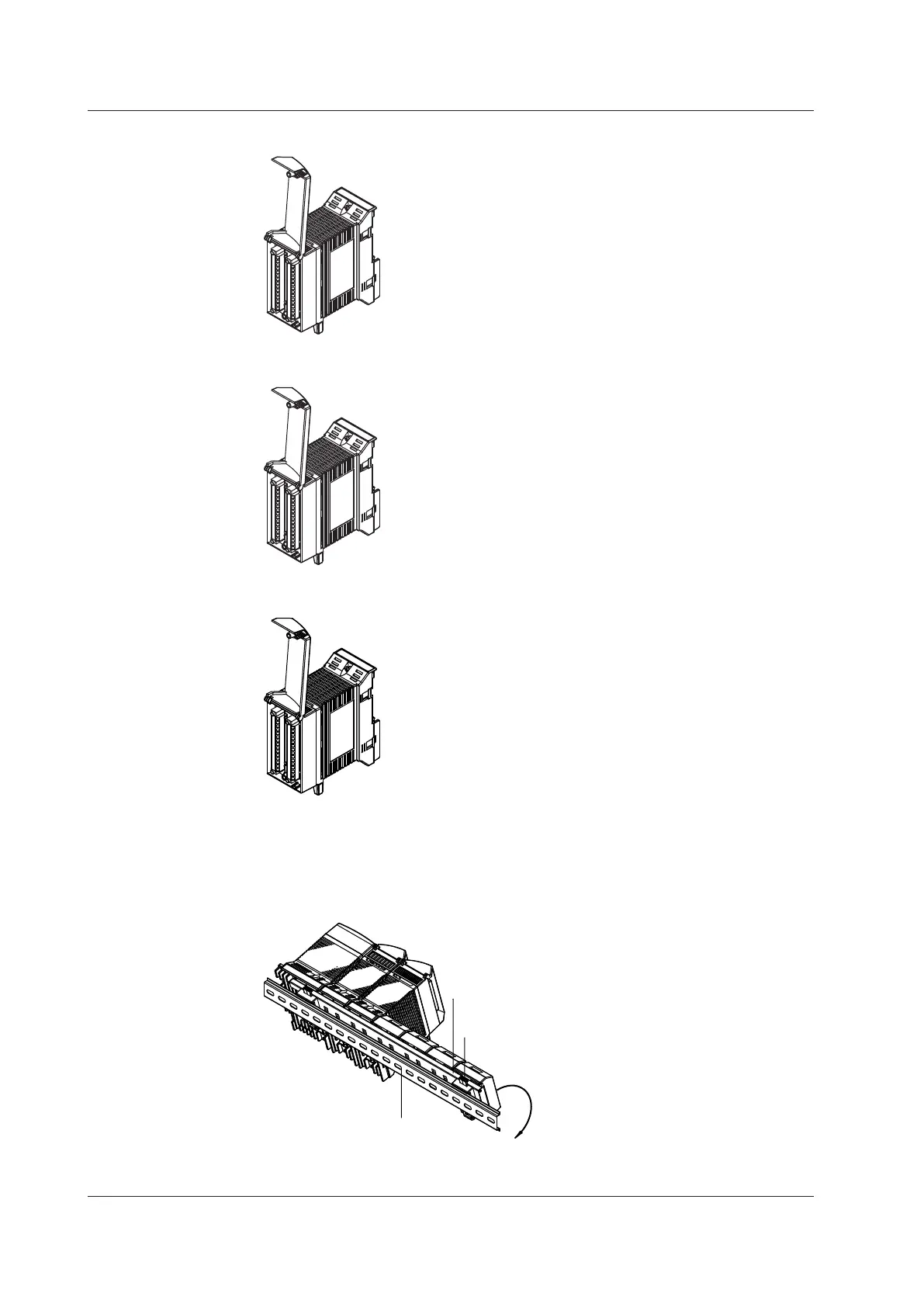

8-CH, Medium-Speed Analog Output Module (MX120-VAO-M08)
• Output update interval: 100 ms (shortest)
• Maximum number of inputs: 8 outputs
• Output type: DC voltage, DC current
8-CH, Medium-Speed PWM Output Module (MX120-PWM-M08)
• Output update interval: 100 ms (shortest)
• Maximum number of inputs: 8 outputs
• Output type: PWM
10-CH, Medium-Speed Digital Output Module (MX125-MKC-M10)
• Output update interval: 100 ms (shortest)
• Maximum number of outputs: 10 outputs
• Output type: A contact (SPST)
Base Plate
The base plate is equipped with connectors for connecting the main module and input/
output modules. There are six types of base plates available (allowing connection of one
to six input/output modules). You can rack-mount or panel-mount the MX100 by attaching
a DIN rail mount bracket to this base plate.
DIN rail
Base plate
DIN rail mount bracket
1.1 Overview of the MX100 Data Acquisition Unit
