Other Functions
Time function: Normally operates using the PC clock
Backup function available (records the times of the data using
time stamps of the main module when communication is
disconnected)
Internalclockaccuracy:±100ppm
Dip switches: Used to initialize settings, etc. (number of switches: 8)
Access stop switch (CF card control switch):
 ClosestheletowhichdataisbeingwrittenontheCFcard
 Savesthelogle
General Specifications
Power consumption: Approximately 8 W
Insulationresistance: 20MΩormoreat500VDCbetweenthepowersupplyterminal
and earth terminal
Withstand voltage: 1500 VAC (50/60 Hz) for one minute between the power supply
terminal and earth terminal
External dimensions: Approximately 92 (W) × 131 (H) × 137 (D) mm
Weight: Approximately 0.85 kg

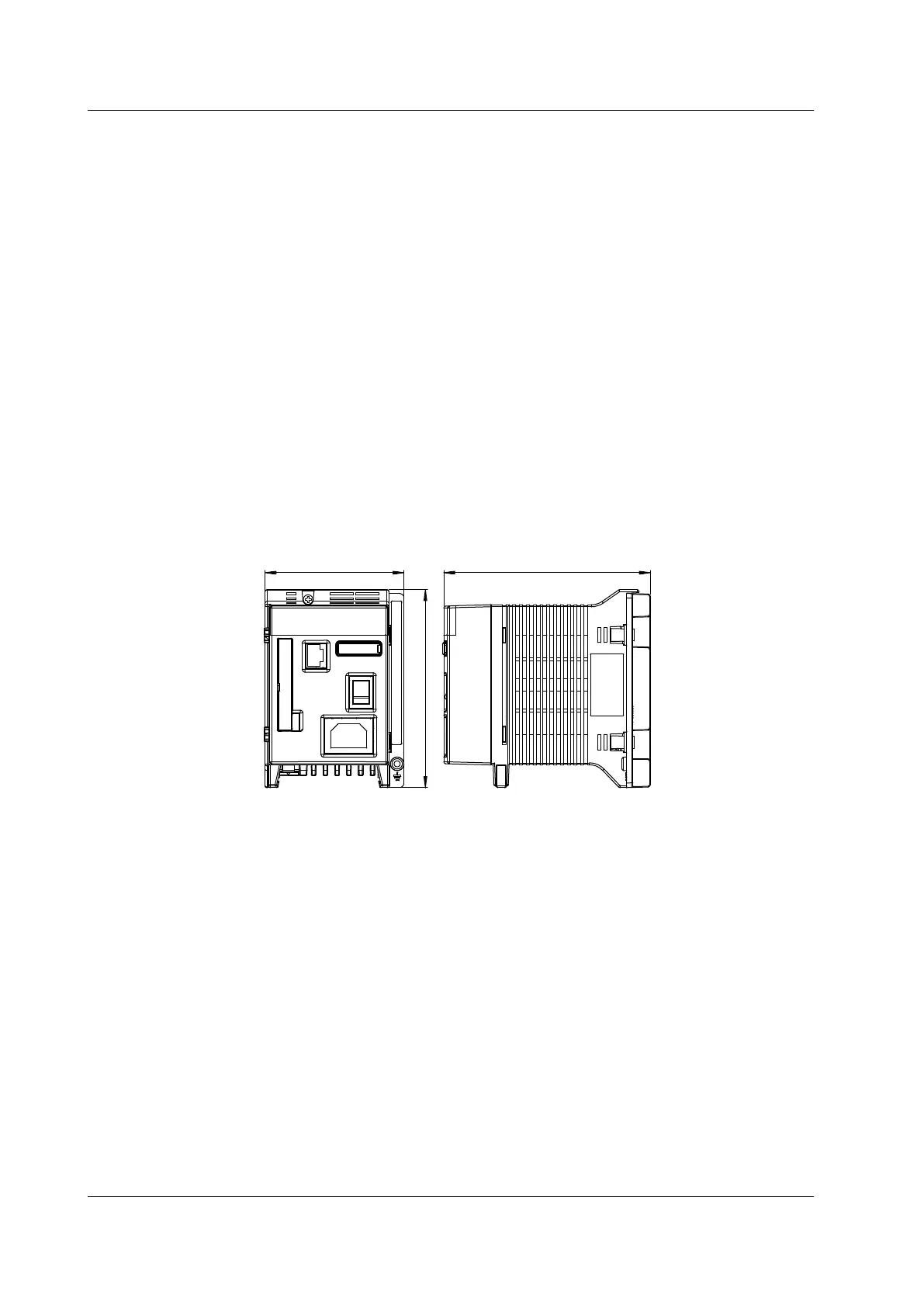

External Dimensions
Unit: mm
92 136.7
131
Ifnotspecified,thetoleranceis±3%.However,incasesoflessthan10mm,the
toleranceis±0.3mm.
