Operation Mode Hold Function Display (Only When the /DS Option
Function is Installed)
Following the self-check, the /DS option function execution confirmation (“ ” is
displayed.

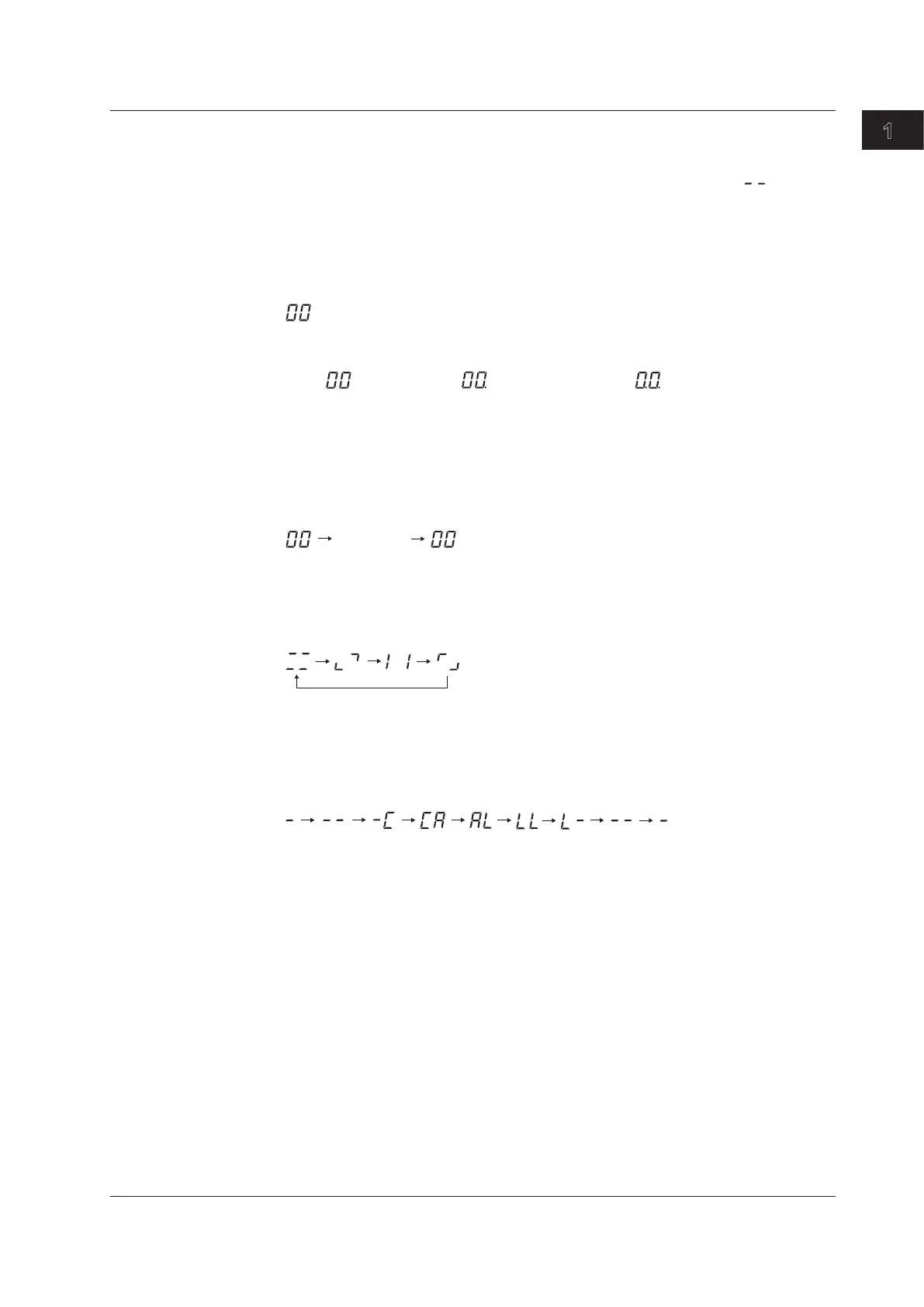

Operation Mode Display
The MX100 Data Acquisition Unit has three operation modes: idle mode, measurement
mode, and backup mode (measured data saved to a CF card due to the disconnection
of communications). The modes are displayed as shown below. In the figure below,
indicates the unit number. If the unit number is not 00, the specified unit number is
displayed.
• Idle mode
• Measurement mode
• Backup mode
Two zeroes
Two zeroes and a dot
Two zeroes and two dots
Display When Operation Is Complete
The figure below shows the display that appears when an operation such as IP address
configuration and measurement condition change is completed. In the figure below, the
unit number is “0.” If the unit number is not 00, the specified unit number is displayed.
Display during Processing
The displays shown below repeats when the CF card is accessed, when the CF card is
being formatted, or when calibration is taking place.
Unit Confirmation Display
The figure below shows the display that appears when you confirm the MX100 Data
Acquisition Unit that is connected using the MX100 Standard Software or MXLOGGER
(software sold separately). The word –CALL– flows through the display from left to right.
Operation Error Display
For details on the display and meaning of errors, see section 3.1, “Error Display on the
7-Segment LED and Corrective Actions.”
