YOKOGAWA PT500 User Manual

19-6
SM80B22M02E

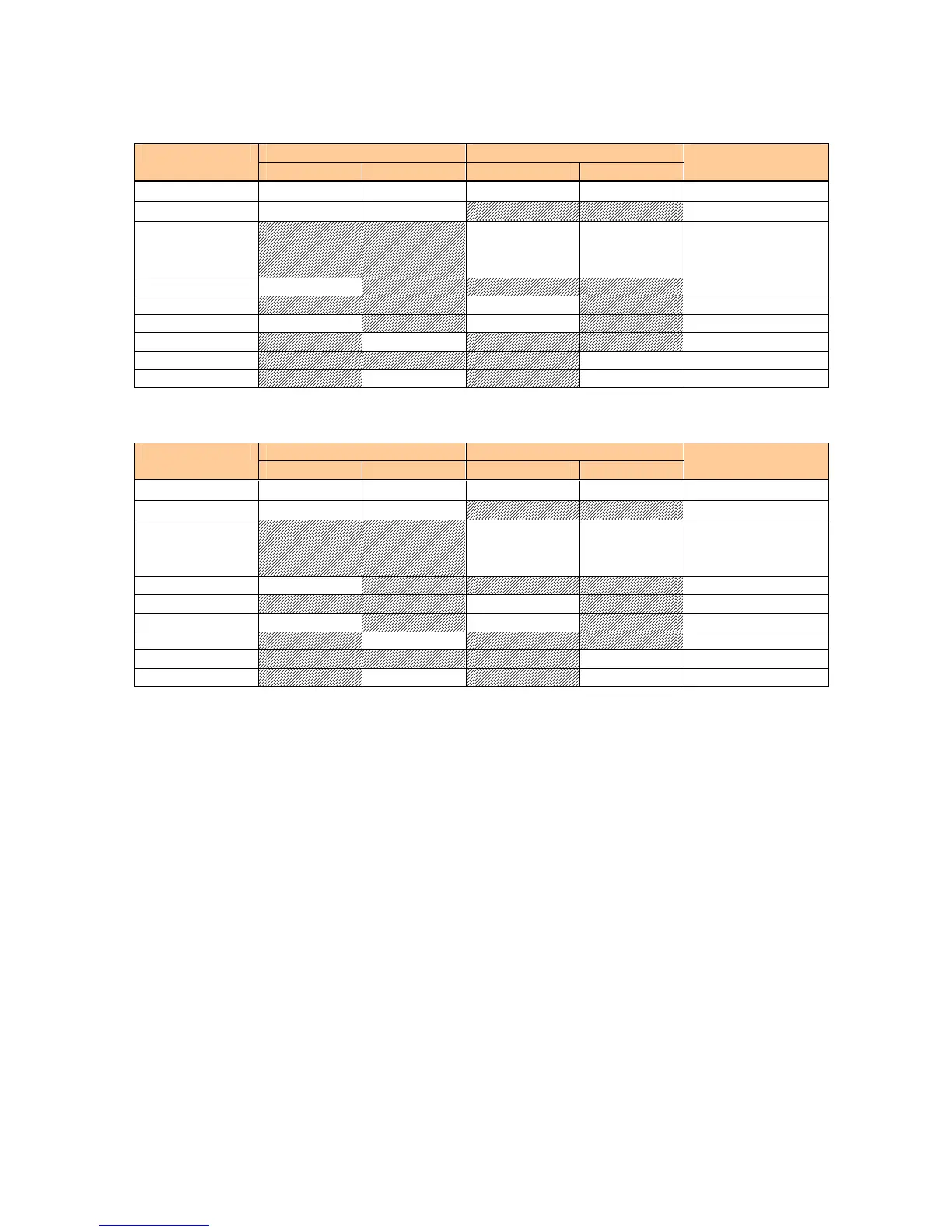

<WIDE-1 MODE> ±35°／±60°、±65°、±70°
NORMAL ANGLE MODE WIDE ANGLE MODE
SINGLE PARALLEL SINGLE PARALLEL
Setting range
Min. Angle
5° 5° 5° 5° 2° ~ 10°
Max. AngleN
70° 70° 70°~ 90°
Max. AngleW
140°
(In case of
70° steering)
140° 70°~ 160°
Max. TimeSN 30s 15s ~ 160s
Max. TimeSW 60s 15s ~ 160s
Min. TimeS 7s 7s 3s ~ 12s
Max. TimePN 22s 7s ~ 80s
Max. TimePW 45s 7s ~ 80s
Min. TimeP 6s 6s 3s ~ 12s
<WIDE-2 MODE> ±35°／±105°
(NOTE: The monitoring of Servo loop error is available within P/S70 degrees.)
NORMAL ANGLE MODE WIDE ANGLE MODE
SINGLE PARALLEL SINGLE PARALLEL
Setting range
Min. Angle
5° 5° 5° 5° 2° ~ 10°
Max. AngleN
70° 70° 70°~ 90°
Max. AngleW
140°
(In case of
70° steering)
140° 70°~ 160°
Max. TimeSN 30s 15s ~ 160s
Max. TimeSW 60s 15s ~ 160s
Min. TimeS 7s 7s 3s ~ 12s
Max. TimePN 22s 7s ~ 80s
Max. TimePW 45s 7s ~ 80s
Min. TimeP 6s 6s 3s ~ 12s
