YOKOGAWA PT500 User Manual

2-36
SM80B22M02E
３．５ Software setting of LOG input format

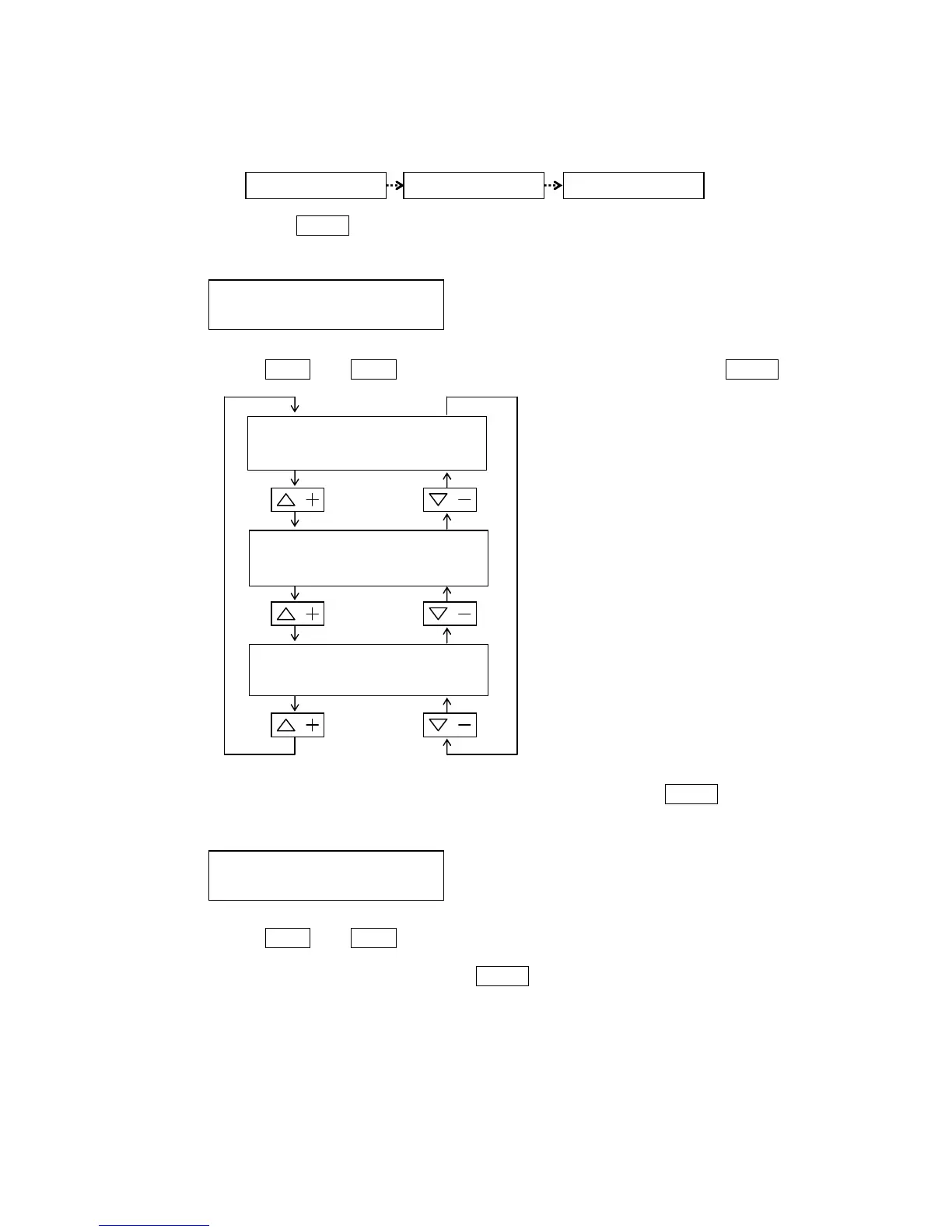

Set the input data of the LOG data
（１）Set the mode.
Then press the ENTER
ENTERENTER
ENTER key.
Display the current setting item for LOG data on the Data display.
（２）Press the △
△△
△ +
++
+ or ▽
▽▽
▽ -
--
- key to select the LOG format. Then press the ENTER
ENTERENTER
ENTER key.
（３）In case of you change the input data. Back to (1) item, Then press the ENTER
ENTERENTER
ENTER key.
Data display become under setting mode
（４）Press the △
△△
△ +
++
+ or ▽
▽▽
▽ -
--
- key. After the display,
NONE ⇔ EXIST ⇔ NEW ⇔ NONE .
After selected the setting mode, press the ENTER
ENTERENTER
ENTER key.
If you choose the EXIST or NEW mode, move to the 3.5.1 or 3.5.2 setting item.
MAINTENANCE 1
…
I/F SET-UP
I/F SET
-
UP
…
SOFTWARE SET
I/F SOFT SET
-
UP
…
PORT= LOG
LOG SOFT
…
FORMAT = EXIST
LOG SOFT
…
FORMAT =
EXIST
LOG SOFT
…
[PREV]
LOG
SOFT
…
[TOP]
LOG SOFT
…
FORMAT< aaaaa
