3D Oral image radiography (**)

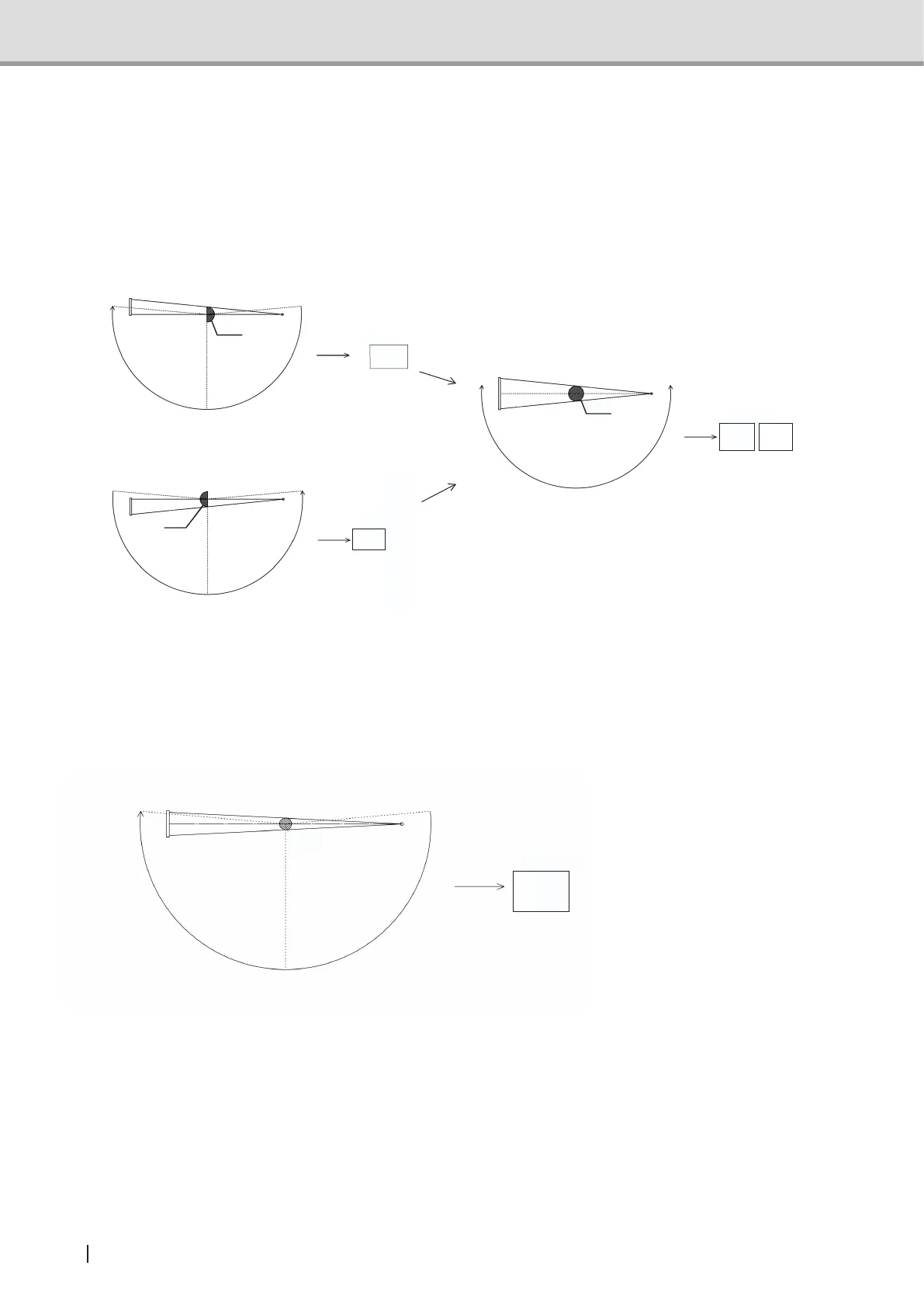

Images acquired from clockwise image acquisition (irradiation time 11.5 seconds) and
counter-clockwise image acquisition (irradiation time 11.5 seconds) are combined.
RecongurethecombinedimagestoacquirealargeFOV3Dimage.
(FOV:Diameter77mm,height54mm)
First image acquisition (clockwise)
Second image acquisition (counter-clockwise)
projection image
projection image
projection image
combining images
left
side
left
side
right
side
right
side
FOV
FOV
FOV
3D Dental image acquisition (**)
Reconguretheacquiredimagefromtheclockwiseimageacquisition(irradiationtime11.5
seconds). 3D image can be acquired.
(FOV:Diameter40mm,height57mm)
projection image
center
* For equipment with Cephalometric
** For equipment with 3D function
