1.3.11 Headxatorfor3Dimageacquisition(**)

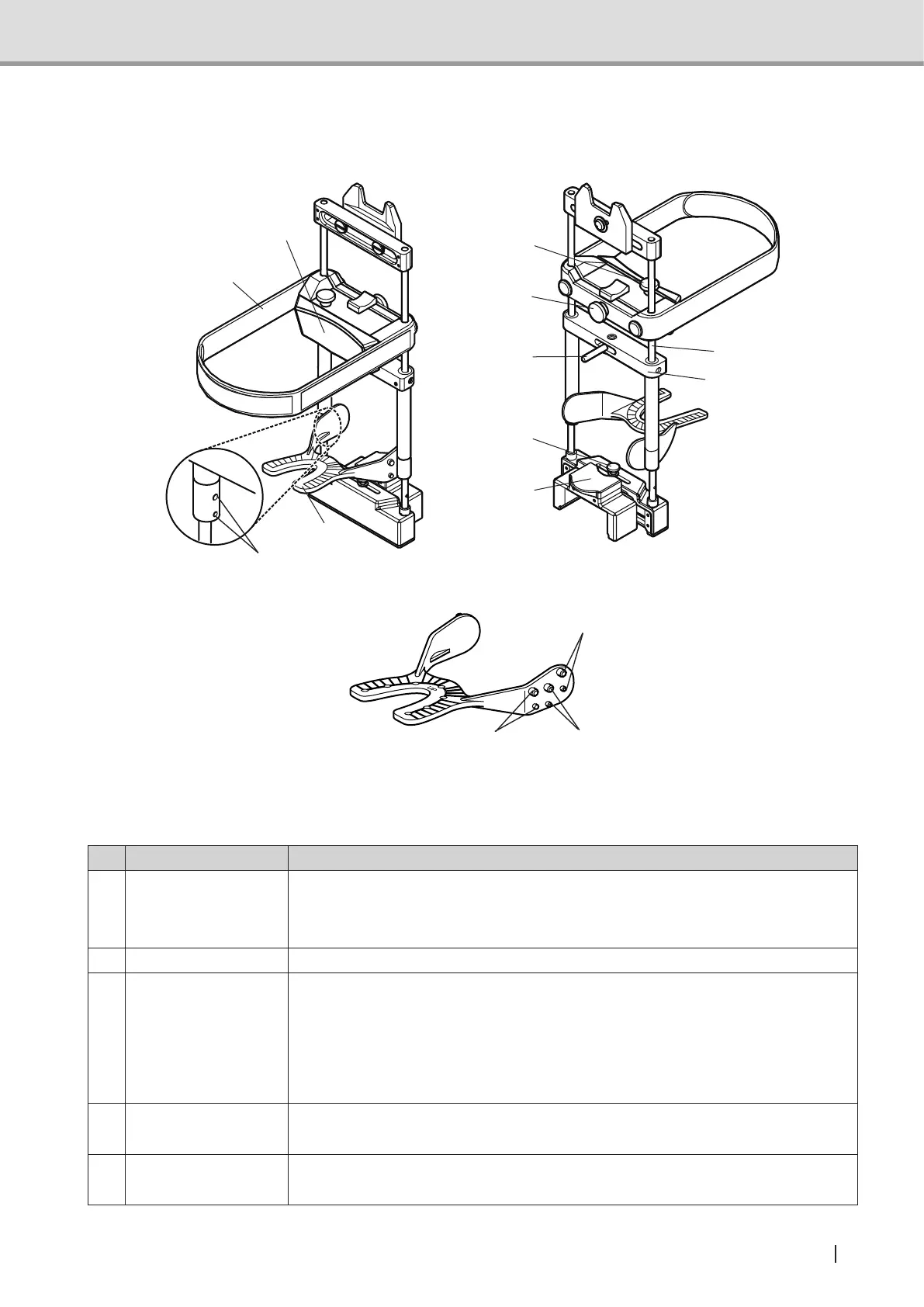

This part is attached to chin rest base for patient positioning while 3D image acquisition.
Attaching pin (for
molar teeth image)
Attaching pin (for
front teeth image)
Attaching pin (for
wisdom teeth image)
Bite plate
1
2
Bite plate attaching hole
3
4
5
6
7
8
9
10
Name Function
1 Forehead support
Holds patient's forehead to support patient's head. Place on the
patient's forehead. Adjust the position using the front-back slide
adjustment knob.
2 Head band Fixes the patient's head.
3 Bite plate
Placeinthepatient'smouthforbitingtoxposition.Attachingpins
are placed on both sides which correspond to image acquiring
position. Front row pins x 2 for wisdom teeth image, center row pins
x 2 for molar teeth image and rear row pins x 2 for front teeth image
(three position type). Each of the upper pin is thicker.
4
Front-back slide
xingknob
Fixes the front-back sliding. Loosen to adjust the front-back position
of the forehead support.
5
Up-down slide
xingknob
Fixes the up-down sliding. Loosen to adjust the up-down position of
the forehead support.
