2.5 Procedure of 3D Radiography
2.5.1 About 3D image acquisition

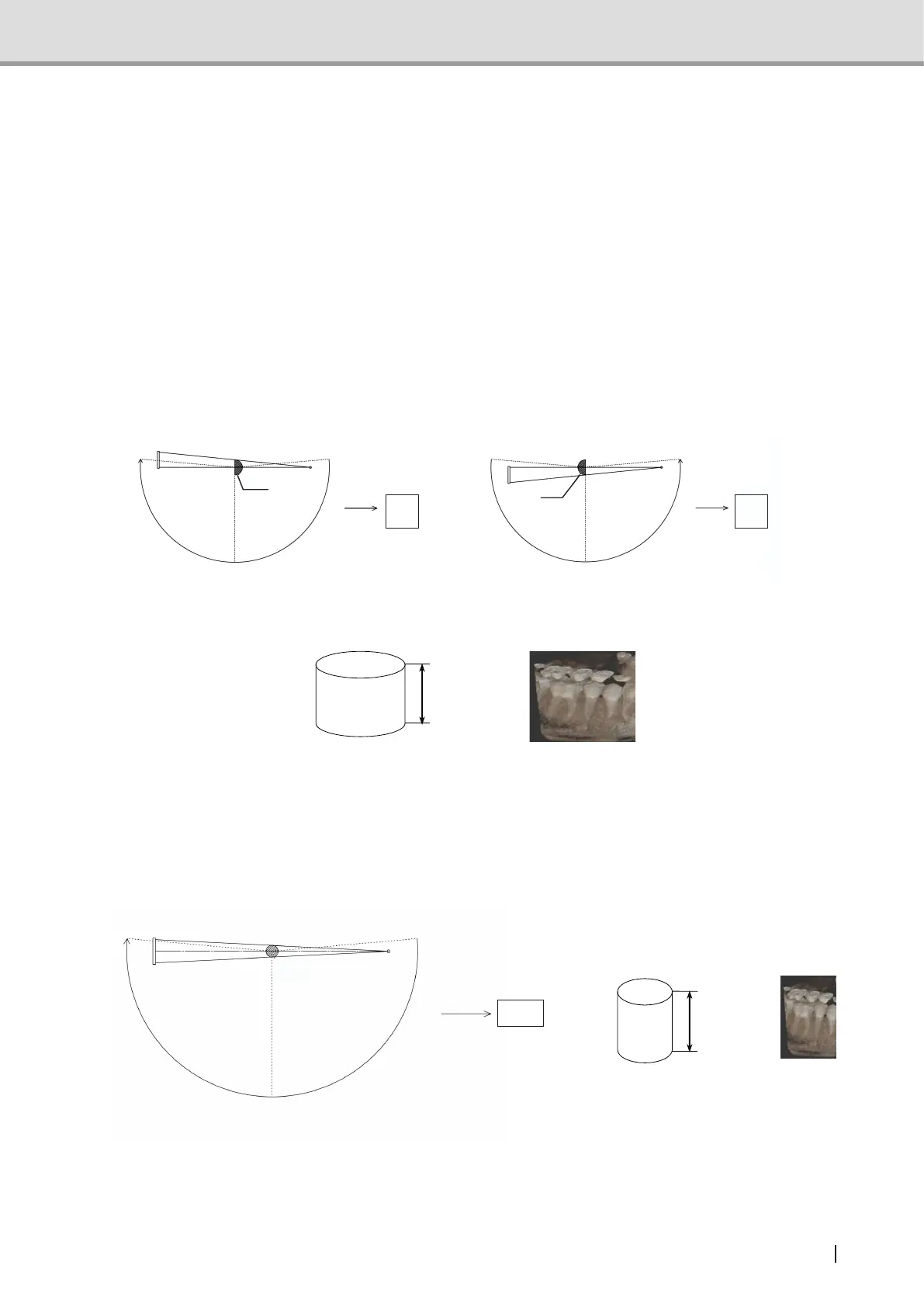

(a) 3D Acquisition mode
3D Acquisition mode has "3D Oral Image" and "3D Dental Image".
1. 3D Oral image
Move the 3D sensor position to the right. Images acquired from clockwise image acquisition
(irradiation time 11.5 seconds) and counter-clockwise image acquisition (irradiation time 11.5
seconds)arecombinedandreconguredtoacquirealargeFOV3Dimage.
(FOV:Diameter77mm,height54mm)
FOV
FOV
projection image projection image
right
side
left
side
54mm
φ77mm
2. 3D Dental image
Movethe3Dsensorpositiontothecenter.Reconguretheacquiredimagefromthe
clockwise image acquisition (irradiation time 11.5 seconds). 3D image can be acquired.
(FOV:Diameter40mm,height57mm)
57mm
φ40mm
center
projection image
