Zapi DUALACE2 NEW GENERATION User Manual

Page 154/169 AFNZPxxx – DUALACE2 NEW GENERATION – User Manual
13 APPENDICES
The goal of this chapter is to give the operator a general overview about the use
of Zapi PC CAN Console and Zapi Smart Console.
The description focuses on the basic information about connection and settings.
For additional functionalities available for both tools, it is suggested to contact
Zapi technicians in order to receive more detailed information or dedicated
documentation.
13.1 Appendix A: PC CAN Console user guide
Windows Pc CAN Console uses standard Zapi communication protocol to display
inverter information. It provides all standard Zapi Console functions with the
easier handling of Windows environment. Besides, Pc CAN Console offers the
possibility to save parameter configurations into a file and to restore them onto
the control afterwards.
Before running Pc CAN Console, the user must install it launching "setup.exe".
13.1.1 PC CAN Console configuration

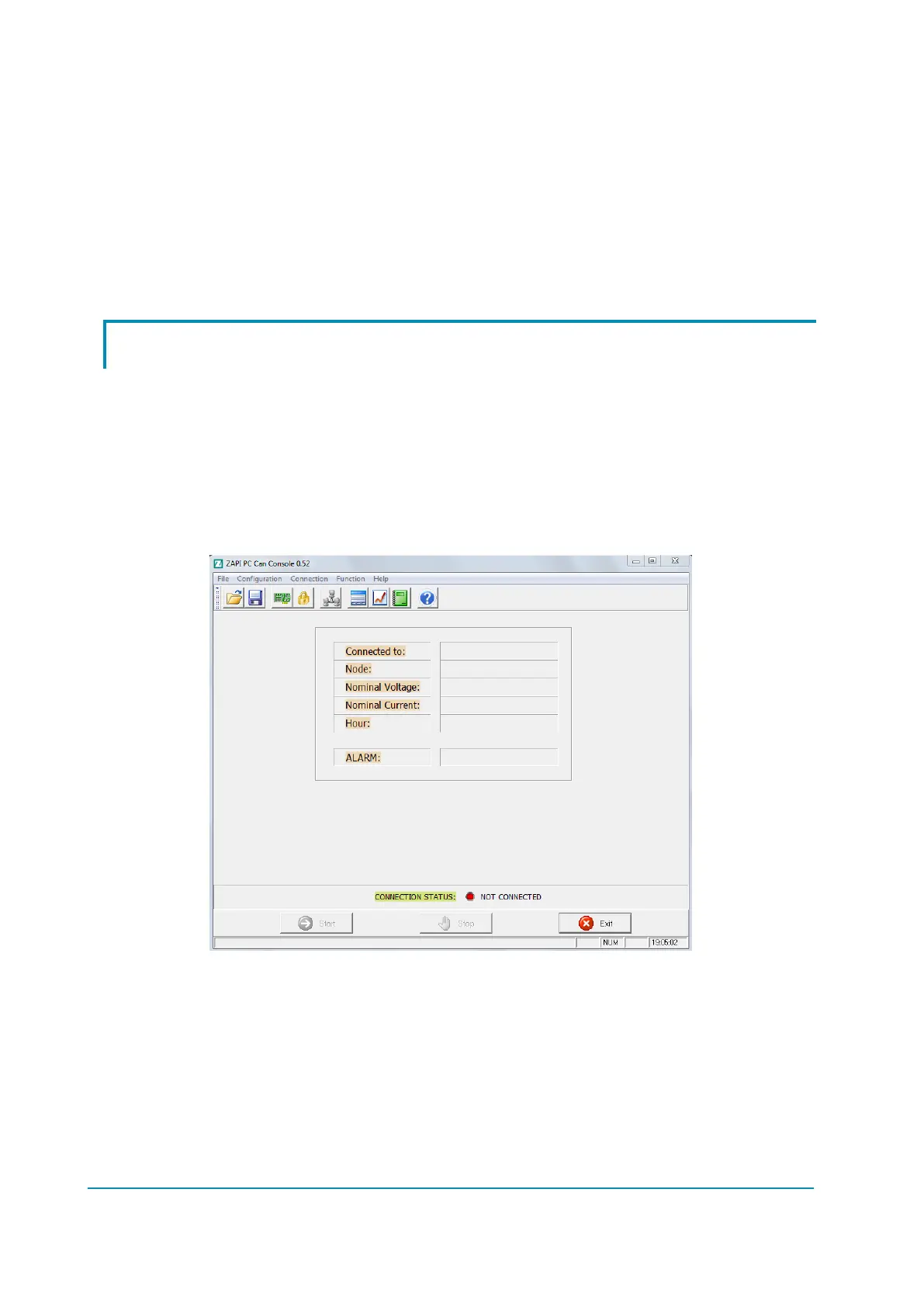

Running the PC Can Console software, the following window appears:
The first step to accomplish is to define the CAN device attached to the PC, so
select the “Configuration” (Alt-C)  Can Device (Ctrl-C) menu or click on Can
Device icon.
