AFNZPxxx– DUALACE2 NEW GENERATION – User Manual Page 27/169

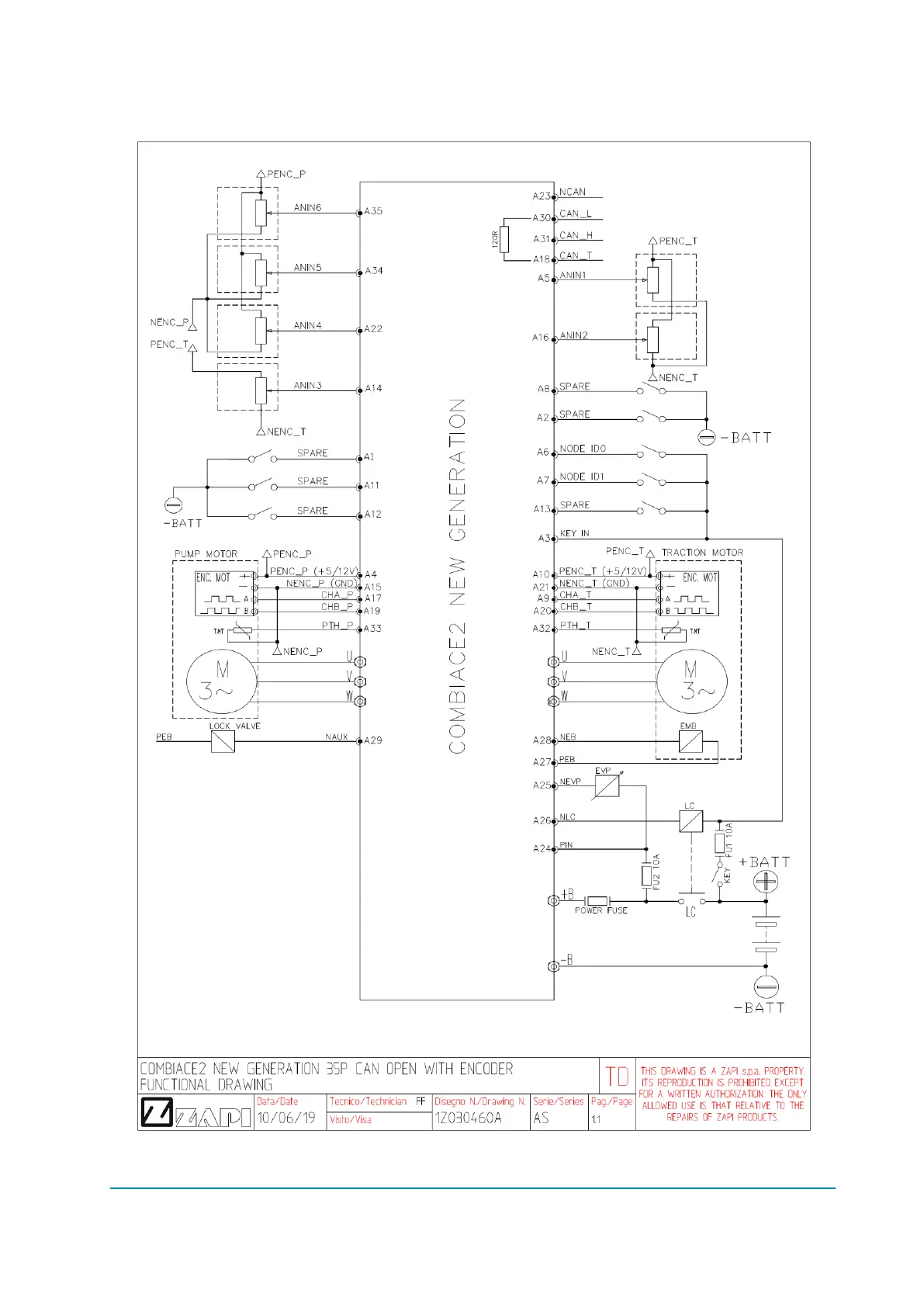

3.2.11 Premium version – CAN controlled Combi AC configuration (AC traction +

AC pump)
