Zapi DUALACE2 NEW GENERATION User Manual

Page 32/169 AFNZPxxx – DUALACE2 NEW GENERATION – User Manual
DUALACE2 NEW GENERATION Standard
Pin
Type
Name
Description
A19
Output
NEB_L
Driving output for the left-hand side electromechanical brake
(driving to -B); PWM controlled; 3 A maximum continuous
current.
A20
Output
CANL
Low-level CAN bus line.
A21
Output
CANH
High-level CAN bus line.
A22
Input
PTH_R
Analog input for the thermal sensor of the right-hand side traction
motor.
Internal pull-up is a 2 mA current source.
A23
Input
PTH_L
Analog input for the thermal sensor of the left-hand side traction
motor.
Internal pull-up is a 2 mA current source.
4.2.2 Premium version

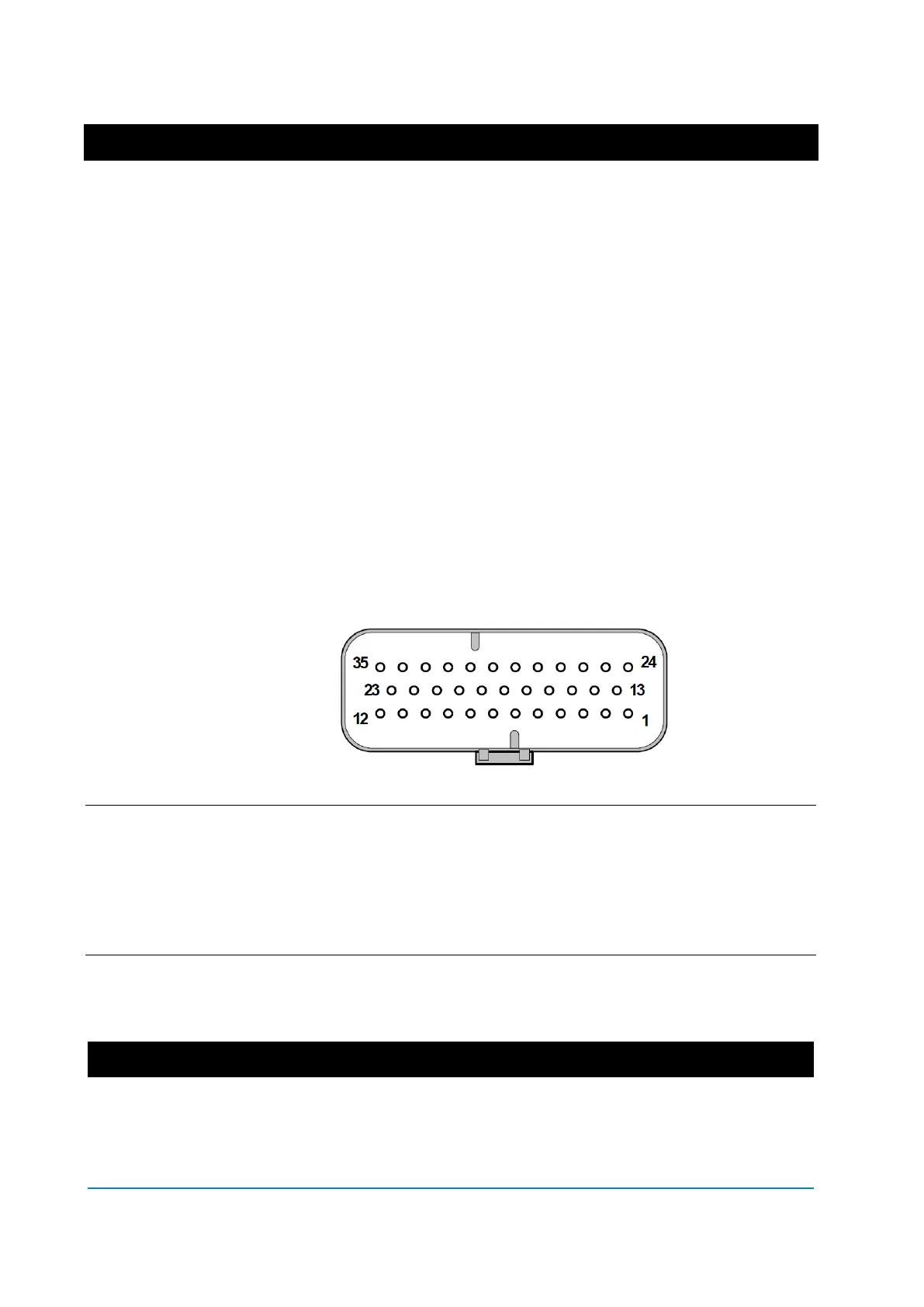

DUALACE2 NEW GENERATION Premium is equipped with a 35-poles Ampseal
connector like that of the figure. Each of the 35 pins is referred to as “A#”, where
“A” denotes the connector name and “#” the pin number, from 1 to 35.
35-poles Ampseal connector of DUALACE2 NEW GENERATION Premium.
 For each I/O pin, the default Zapi function is indicated. The function of each pin
can be changed in the customized software.
 Some I/O pins can have special functionality depending on controller
configuration.
4.2.3 Dual AC traction configuration
DUALACE2 NEW GENERATION (dual traction)
Pin
Type
Name
Description
A1
Input
SPARE
Digital input, active when connected to -B.
The default function is not defined.
