AFNZPxxx DUALACE2 NEW GENERATION User Manual Page 165/169

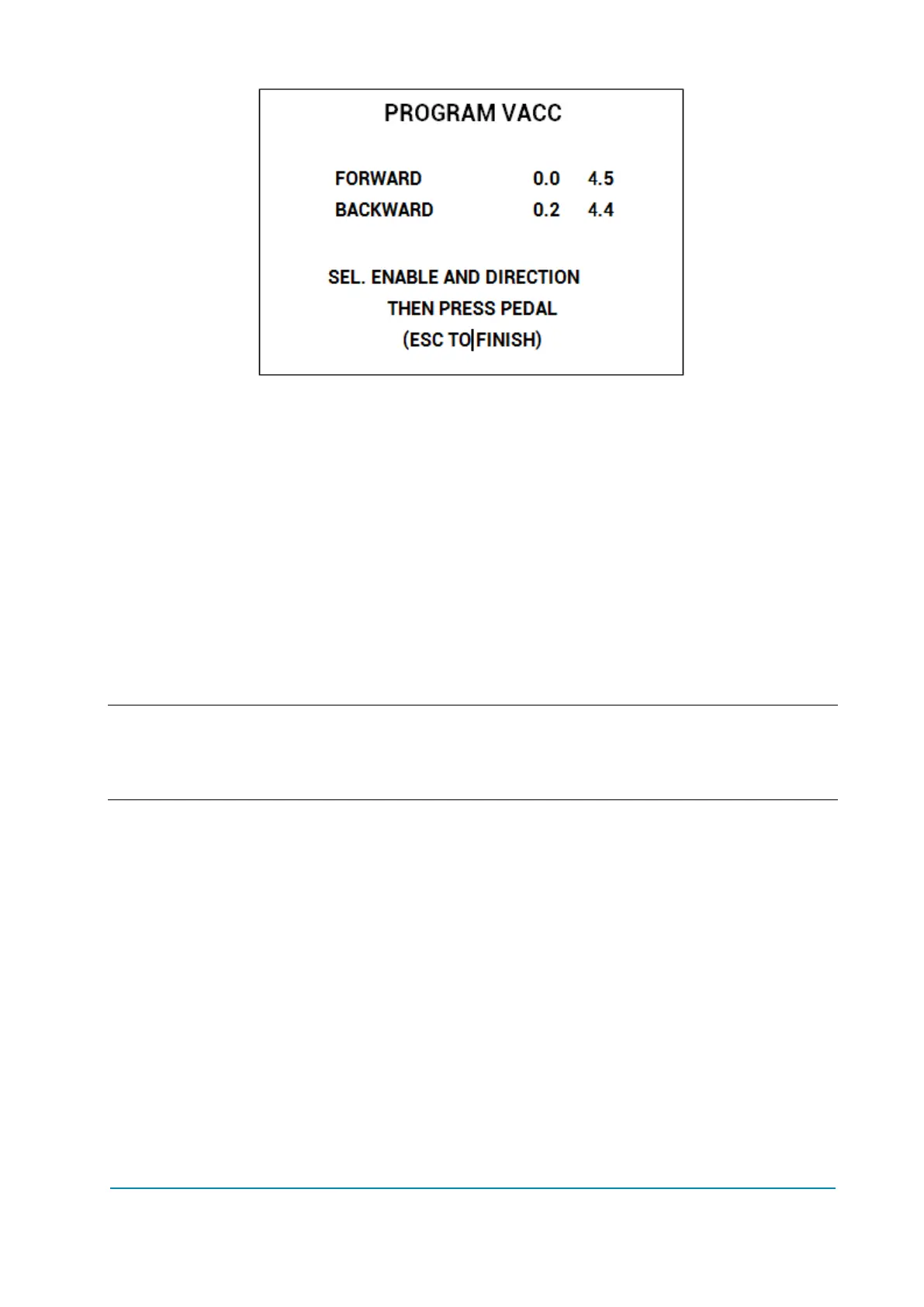

When ESC is pressed, console asks if programmed values must be saved or
discarded.
13.2.7 Lift and Lower acquisition
From MAIN MENU go into the Adjustment menu.
With UP and DOWN keys you can scroll the list: once you have highlighted a
value you want acquire, press OK.
When OK is pressed, the procedure starts:
select the Enable switch, if any;
select the control switch if any (either lift or lower);
move the control sensor (lift/lower potentiometer) to the correct position
according to what you are acquiring.
Displayed values vary accordingly to operator inputs.
Sequence above can slightly vary depending on controller firmware. Anyway the
logic remains the same: before programming the min/max values, execute any
starting sequence which is necessary, then press the pedal or push the joystick.
It is possible to acquire all the values in only one session.
At the end you can press ESC and the console will prompt a request to
confirm/discard changes.
