CAN Console: enter this menu to establish a CAN connection.
AUTOSCAN CAN: another way to establish a CAN connection.
Console Utilities and Menu Console: ignore them at the moment.
The current hour is shown at the bottom right.
Moreover, the green LED is on and still.
The “RS232” line is already highlighted at the start-up. Press OK key to start a
serial connection.
Display prompts a message to inform you that a connection attempt is ongoing.
If serial connection fails a “NO COMMUNICATION” warning will be shown after
some seconds: press ESC key and look for what is preventing the connection.
Please notice the red dot appearing on the top right of the display every time you
press a button. It indicates that the console has received the command and it is
elaborating the request. If the red dot does not appear when a button is pressed,
there is probably a failure inside the keyboard or the console has stalled.
13.2.4 Connected

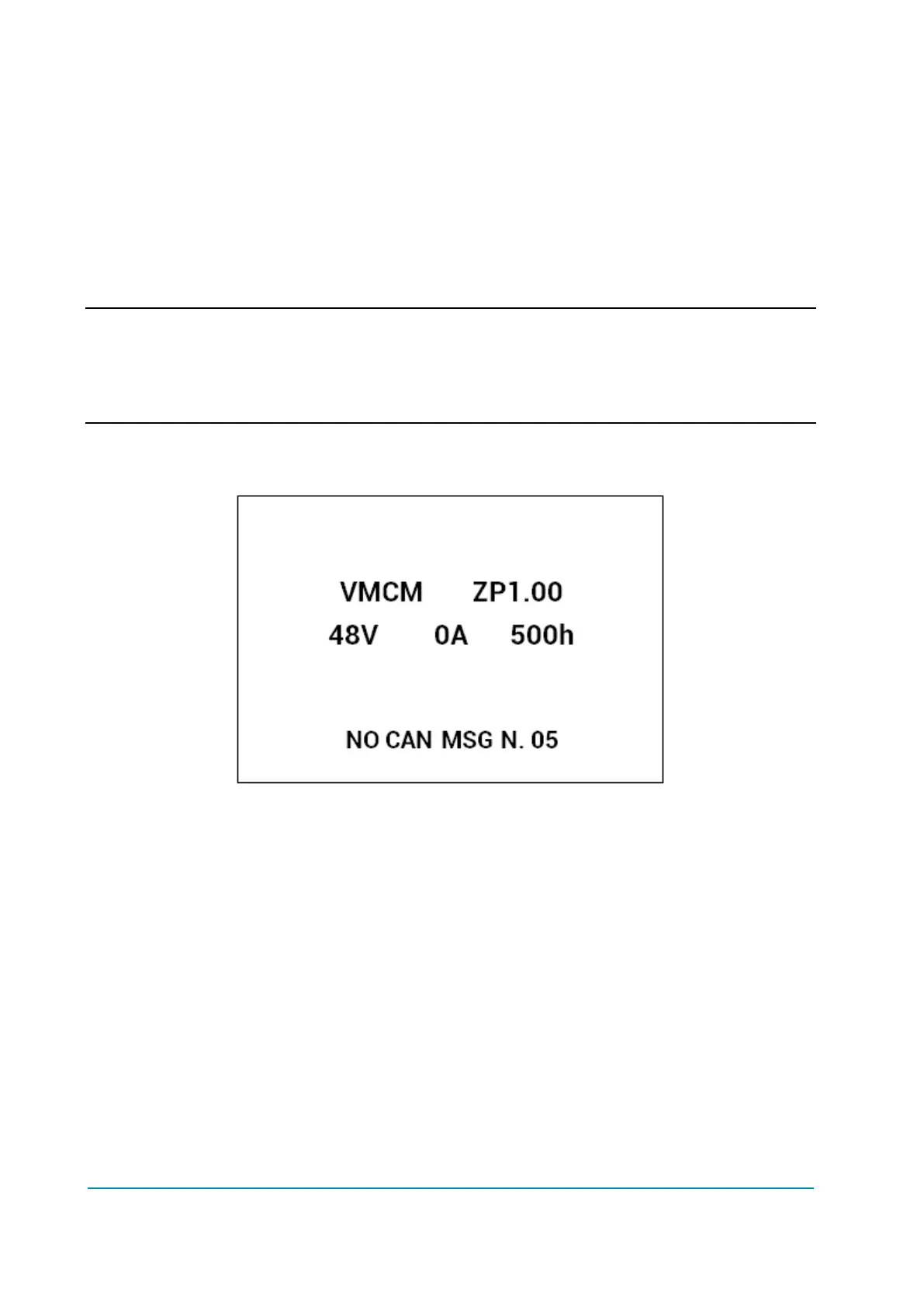

If connection is successful, the display will show a page similar to the next one.
This menu shows basic information about the controller, in a similar way to the
console Ultra.
First line displays the controller firmware.
Second line shows controller voltage, controller current and hour meter.
Last line shows the current alarm code, if present.
Press OK to access the MAIN MENU.
