AFNZPxxx– DUALACE2 NEW GENERATION – User Manual Page 167/169
Five is the maximum number of alarm codes which is stored inside the controller.
Colors are used to separate recurrent alarm codes from rare events. In order of
increasing frequency, alarm names can be:
White: up to 5 occurrences
Yellow: up to 20,
Orange: up to 40,
Red: more than 40.

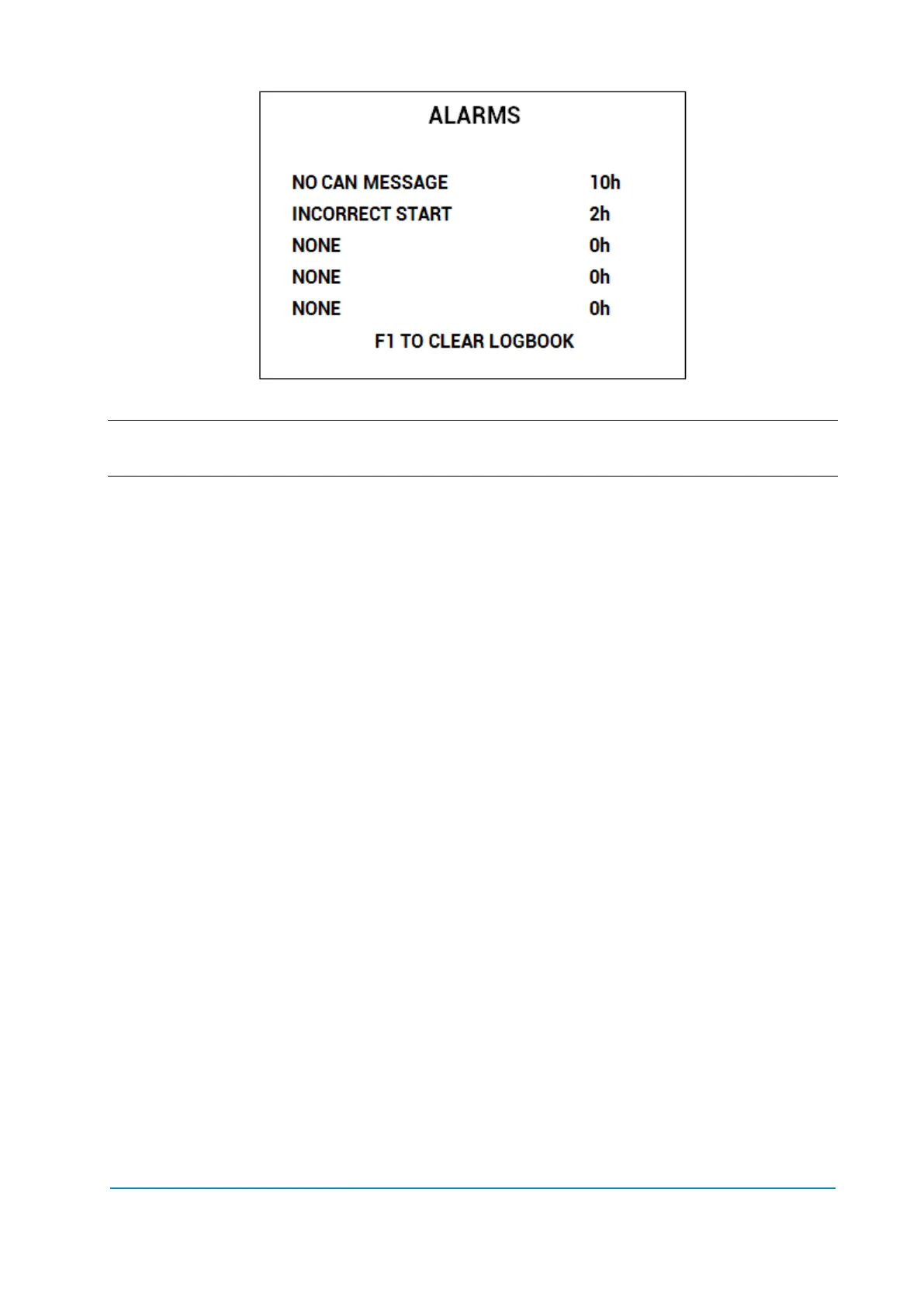

Use UP/DOWN to select a certain alarm in the list: if OK is pressed, additional
pieces of information about that alarm are displayed.
Press F1 to clear the alarm logbook of the controller: once F1 is pressed, the
console asks for confirmation.
13.2.11 Download parameter list into a USB stick
When Smart Console is connected to a controller, it has the possibility to
download all parameters into a USB stick.
To use this function, go into the menu SAVE PARAMETER USB in the
MAIN MENU.
File format
The complete list of parameters is saved as a csv file in order to be opened with
Microsoft Excel
®
or any other spreadsheet tool.
The file is formatted in the same way as if it has been created with the PC CAN
Console. Thus it contains the whole list of parameter and, for each one, various
data are available, in particular:
Parameter value as it is saved within controller (“Value” column).
Parameter value as it is shown by console or similar tools (“Scaled Value”
column).
Name of the menu where parameter is placed tools (“Name menu”
column).
File name is generated as a hexadecimal code of the time and date of save.
This codification prevents any overwrite of previously saved files.
Download procedure
After entering SAVE PARAMETER TO USB, the Smart Console checks the
presence of a USB stick. If the stick is not connected, it asks the operator to
connect one.
