User Preferences 5 - 9

Beeper Tone

Parameter # 145 (SSI # 91h)

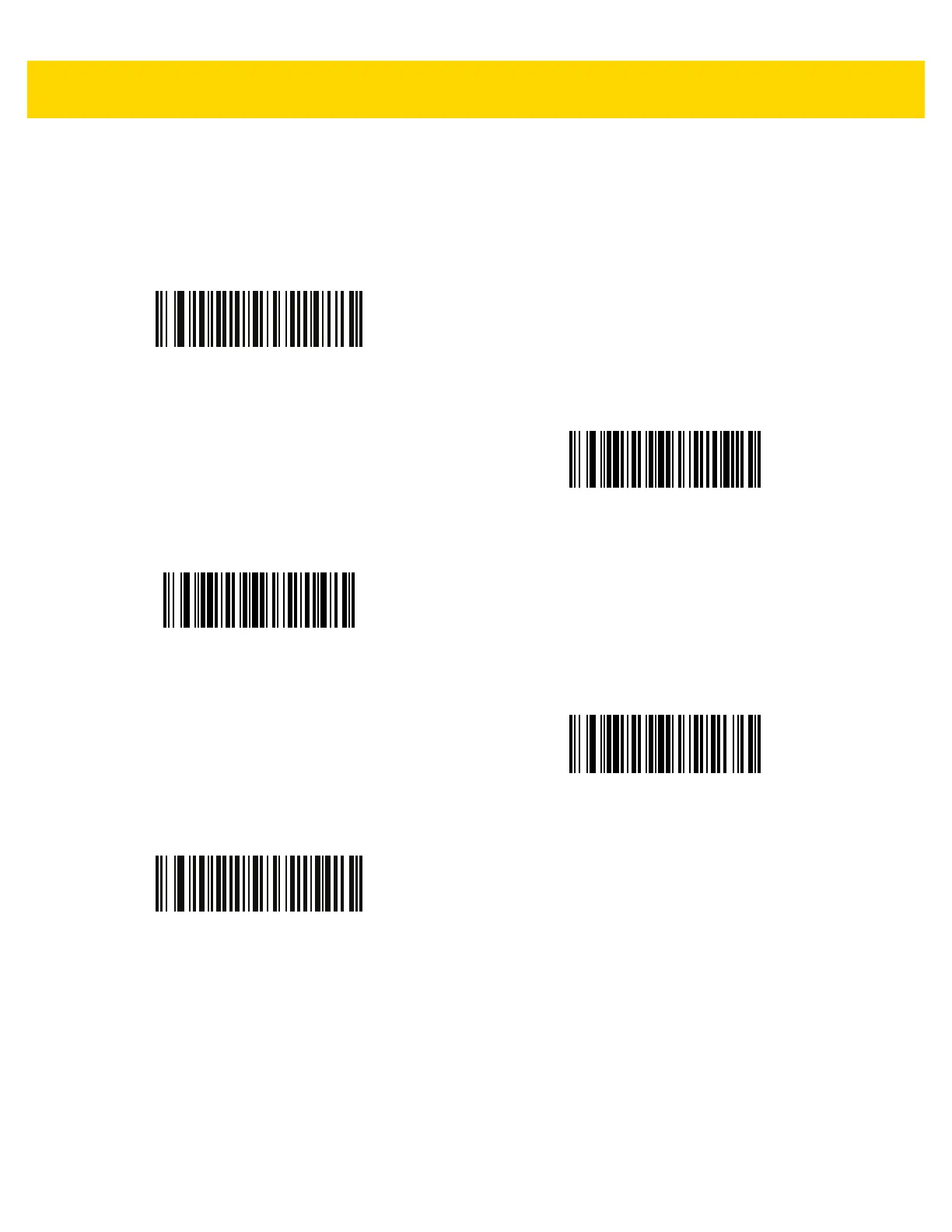

To select a beeper tone, scan one of the following bar codes.

Off

(3)

Low Tone

(2)

* Medium Tone

(1)

High Tone

(0)

Medium to High Tone (2-tone)

(4)
