Zebra DS8178 Product Reference Guide

Symbologies 12 - 15

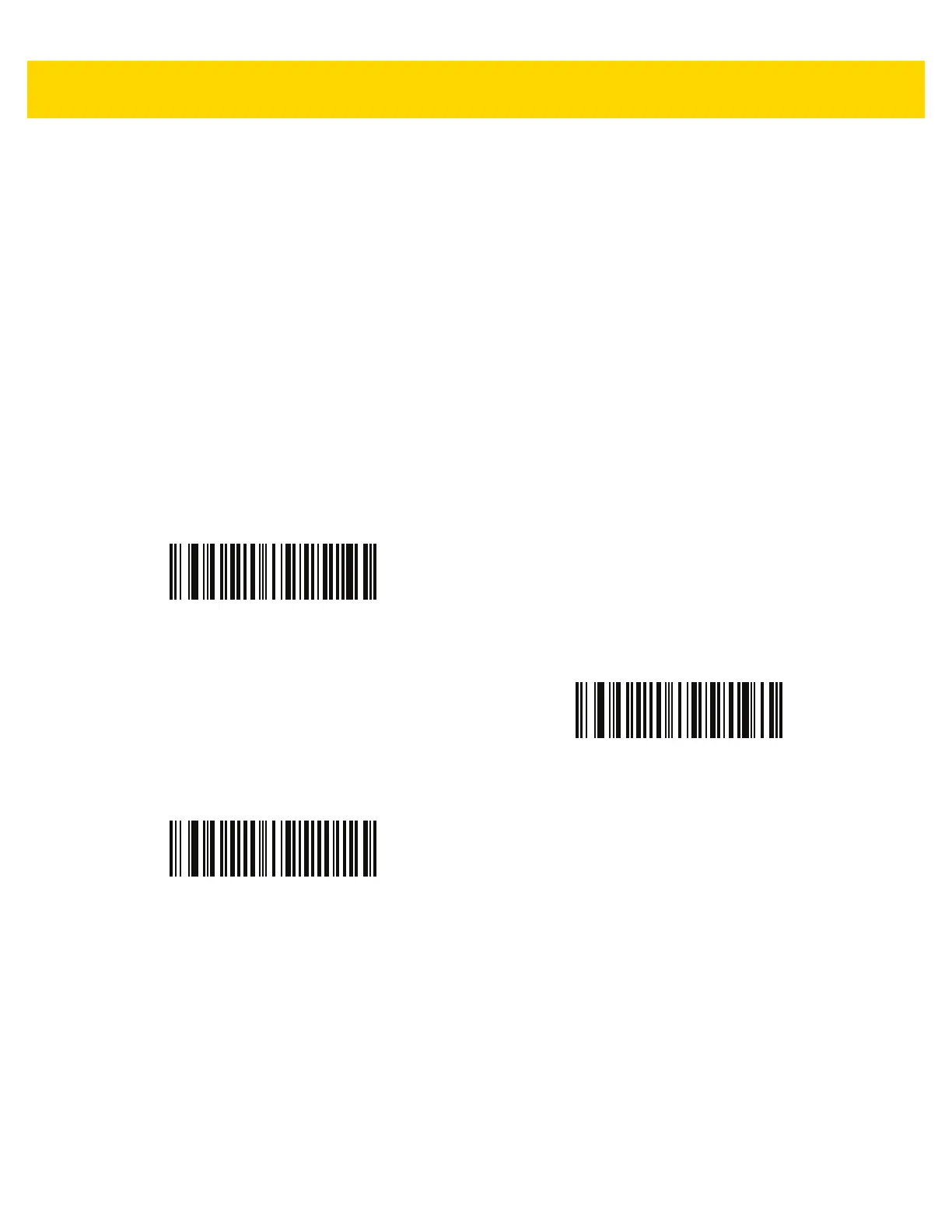

UPC/EAN/JAN Supplemental AIM ID Format
Parameter # 672 (SSI # F1h A0h)
Select an output format when reporting UPC/EAN/JAN bar codes with Supplementals with Transmit Code ID
Character on page 5-36 set to
AIM Code ID Character:
• Separate - transmit UPC/EAN with supplementals with separate AIM IDs but one transmission, i.e.:
]E<0 or 4><data>]E<1 or 2>[supplemental data]
• Combined – transmit UPC/EAN with supplementals with one AIM ID and one transmission, i.e.:
]E3<data+supplemental data>
• Separate Transmissions - transmit UPC/EAN with supplementals with separate AIM IDs and separate
transmissions, i.e.:
]E<0 or 4><data>
]E<1 or 2>[supplemental data]
Separate
(0)
*Combined
(1)
Separate Transmissions
(2)

Zebra DS8178 Specifications

General

Product color	Black
Housing material	-
International Protection (IP) code	IP42
Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	Photo diode
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °
Optical sensor resolution	1280 pixels
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
PC connection	RS-232/USB
Wireless range	100 m
Bluetooth version	4.0
Standard interfaces	USB, RS-232, Bluetooth
Connectivity technology	Wired & Wireless
Battery life	83 h
Battery capacity	2500 mAh
Power source type	Battery

Weight and Dimensions

Depth	107 mm
Width	66 mm
Height	168 mm
Weight	235.3 g
