Zebra DS8178 Product Reference Guide

2 - 6 DS8178 Digital Scanner Product Reference Guide
2. Press the trigger until the digital scanner beeps, indicating the bar code is successfully decoded. For more
information on beeper and LED definitions, see Beeper and LED Indications on page 2-1.

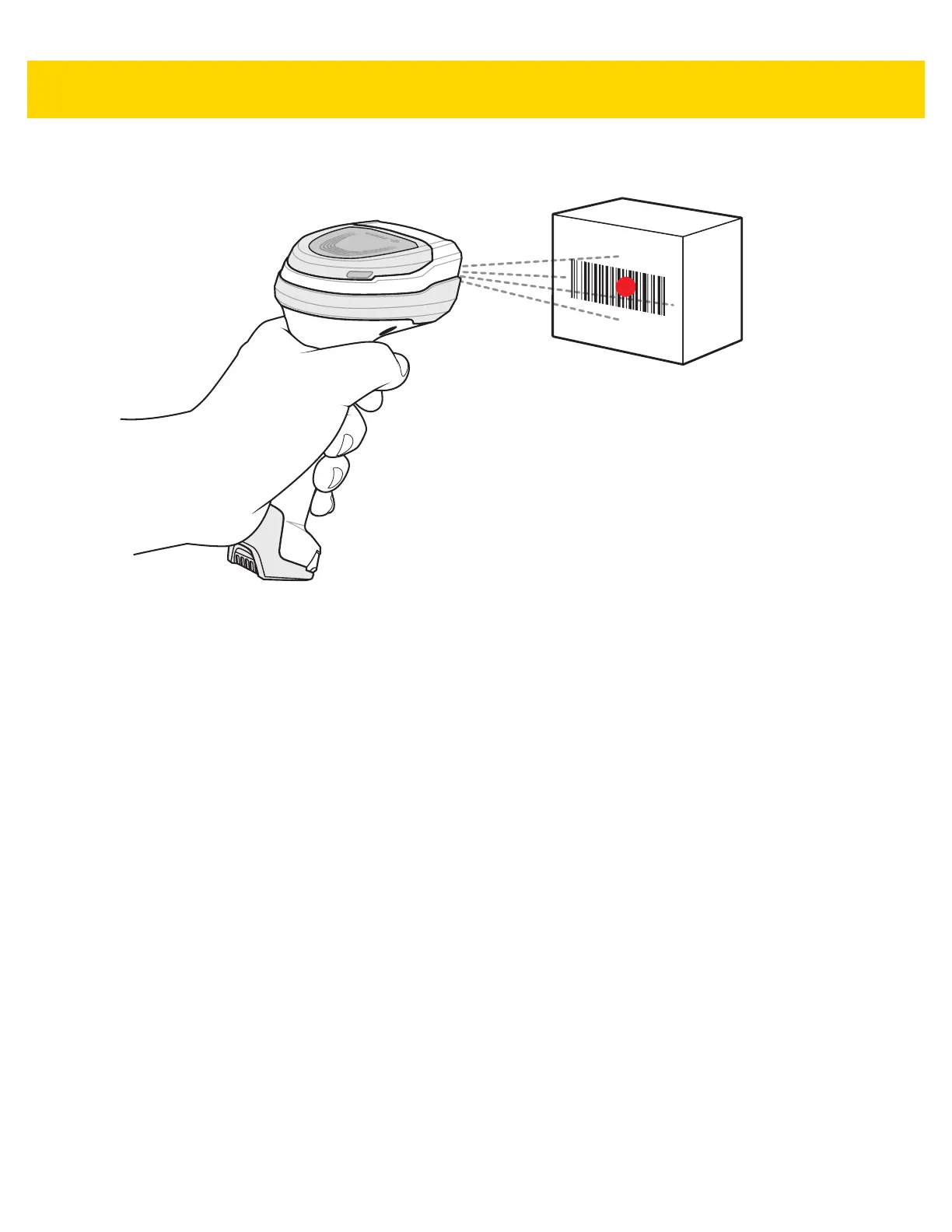

Figure 2-1 Scanning in Hand-Held Mode
Hands-Free Scanning
The scanner is in hands-free (presentation) mode when it sits in the CR8178-PC cradle. During idle conditions the
scanner operates in object detection mode, where it automatically wakes up to decode a bar code presented in the
field of view. In object detection mode it is normal for the illumination LEDs to be dimly lit.
To scan:
1. Ensure all connections are secure (see appropriate host chapter).
2. Present the bar code in the scanner field of view.

Zebra DS8178 Specifications

General

Product color	Black
Housing material	-
International Protection (IP) code	IP42
Type	Handheld bar code reader
Wavelength	617 nm
Sensor type	Photo diode
Scanner type	1D/2D
Tilt reading angle	0 - 360 °
Pitch reading angle	0 - 60 °
Optical sensor resolution	1280 pixels
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
PC connection	RS-232/USB
Wireless range	100 m
Bluetooth version	4.0
Standard interfaces	USB, RS-232, Bluetooth
Connectivity technology	Wired & Wireless
Battery life	83 h
Battery capacity	2500 mAh
Power source type	Battery

Weight and Dimensions

Depth	107 mm
Width	66 mm
Height	168 mm
Weight	235.3 g
