Symbologies 12 - 81

Netherlands KIX Code

Parameter # 326 (SSI # F0h, 46h)

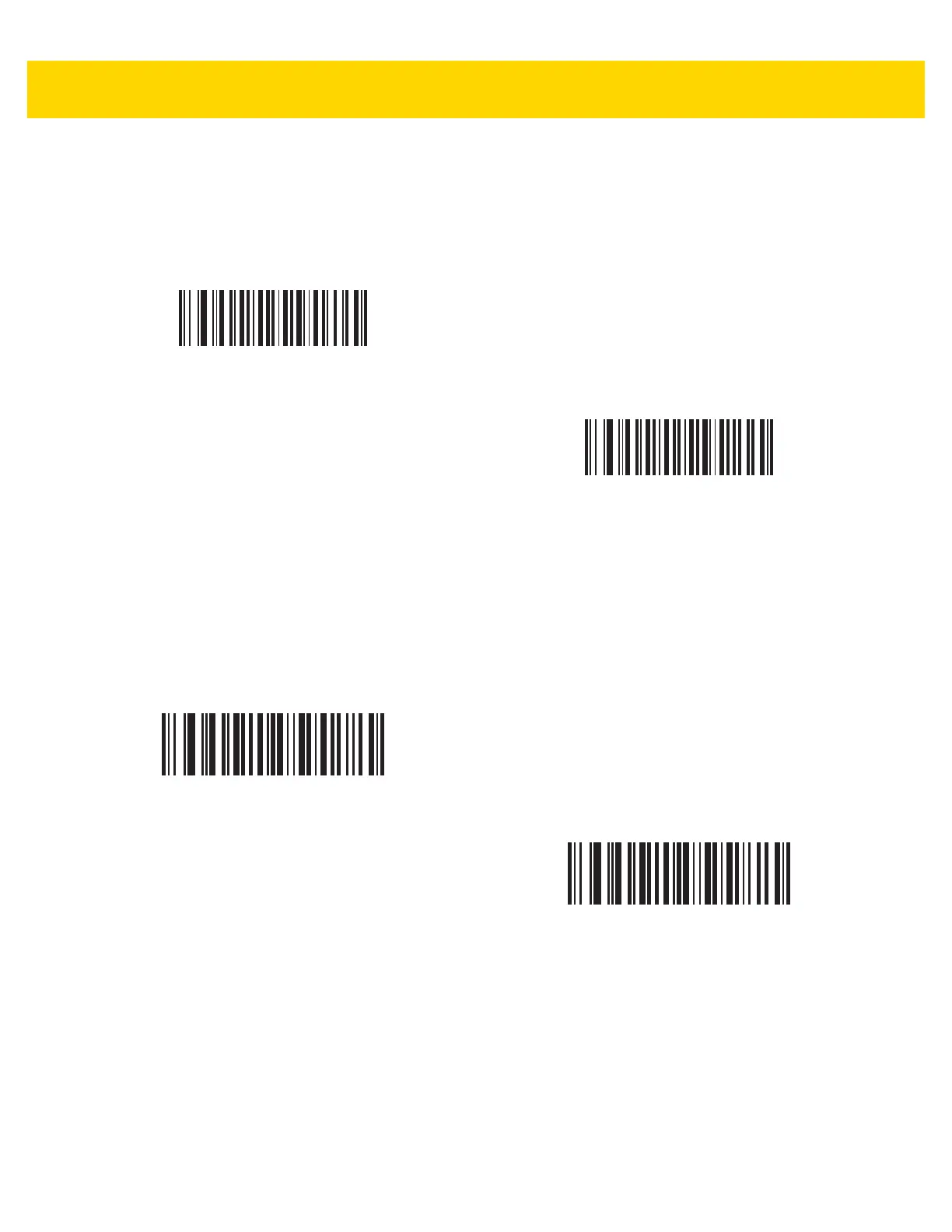

To enable or disable Netherlands KIX Code, scan the appropriate bar code below.

USPS 4CB/One Code/Intelligent Mail

Parameter # 592 (SSI # F1h 50h)

To enable or disable USPS 4CB/One Code/Intelligent Mail, scan the appropriate bar code below.

Enable Netherlands KIX Code

(1)

*Disable Netherlands KIX Code

(0)

Enable USPS 4CB/One Code/Intelligent Mail

(1)

*Disable USPS 4CB/One Code/Intelligent Mail

(0)
