12 - 10 DS8178 Digital Scanner Product Reference Guide

Enable/Disable EAN-13/JAN-13

Parameter # 3 (SSI # 03h)

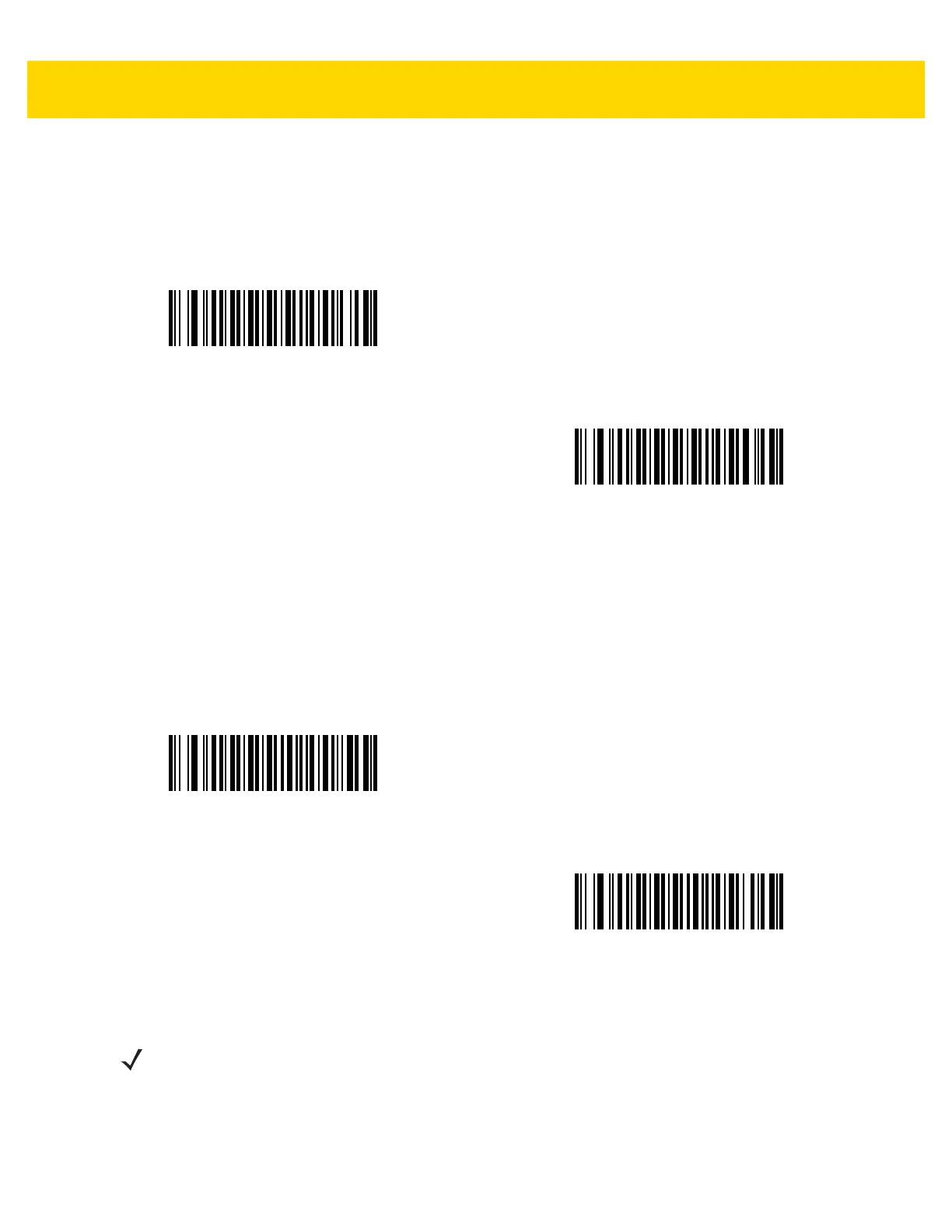

To enable or disable EAN-13/JAN-13, scan the appropriate bar code below.

Enable/Disable Bookland EAN

Parameter # 83 (SSI # 53h)

To enable or disable Bookland EAN, scan the appropriate bar code below.

*Enable EAN-13/JAN-13

(1)

Disable EAN-13/JAN-13

(0)

Enable Bookland EAN

(1)

*Disable Bookland EAN

(0)

NOTE If you enable Bookland EAN, select a Bookland ISBN Format on page 12-22. Also select either Decode

UPC/EAN Supplementals, Autodiscriminate UPC/EAN Supplementals, or Enable 978/979 Supplemental

Mode in Decode UPC/EAN/JAN Supplementals on page 12-11.
