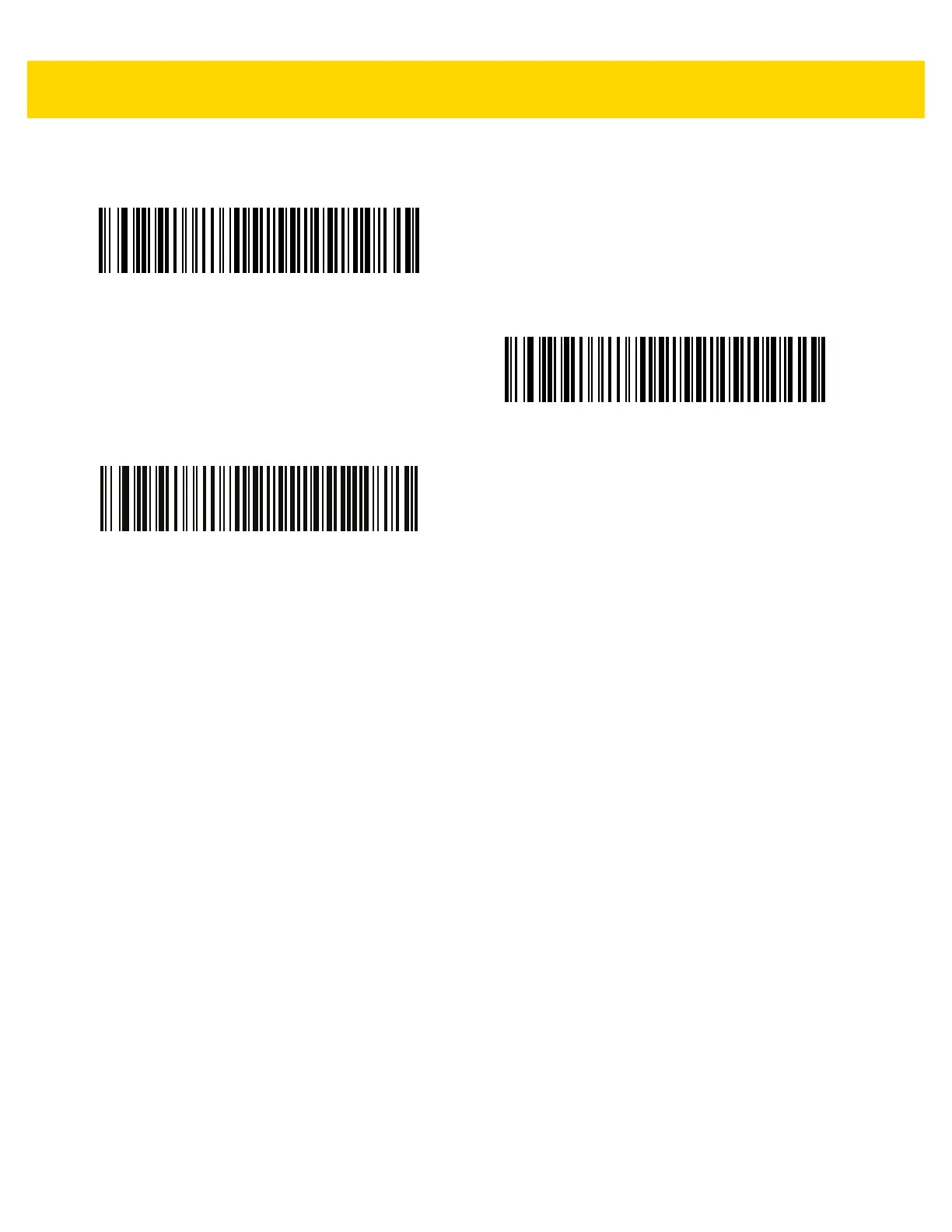

RS-232 Interface 9 - 7

RS-232 Host Types (continued)

The CUTE host disables all parameter scanning, including Set Defaults. If you inadvertently select CUTE, scan

*Enable Parameter Bar Code Scanning (1) on page 5-6, then change the host selection.

OPOS/JPOS

Fujitsu RS-232

CUTE
