Zebra Z4Mplus User Manual

70 Z4Mplus and Z6Mplus User Guide
Configuration
Configuration and Calibration Sequence
CALIBRATING
PLEASE WAIT
The printer automatically adjusts the scale (gain) of the
signals it receives from the media and ribbon sensors based
on the specific media and ribbon combination you are using.
On the sensor profile, this corresponds to moving the graph
up or down to optimize the readings for your application.
RELOAD ALL When RELOAD ALL is displayed:
Open the printhead and pull the media forward until a label
is positioned under the media sensor.
Move the ribbon back to its proper position.
Close the printhead.
MEDIA AND RIBBON
CALIBRATE
Now that the scale has changed, the printer performs another
calibration. During this process, the printer checks the
readings for the media and ribbon based on the new scale
you have established, determines the label length, and
determines whether you are in Direct Thermal or Thermal
Transfer Print Mode. The process is now complete. To see

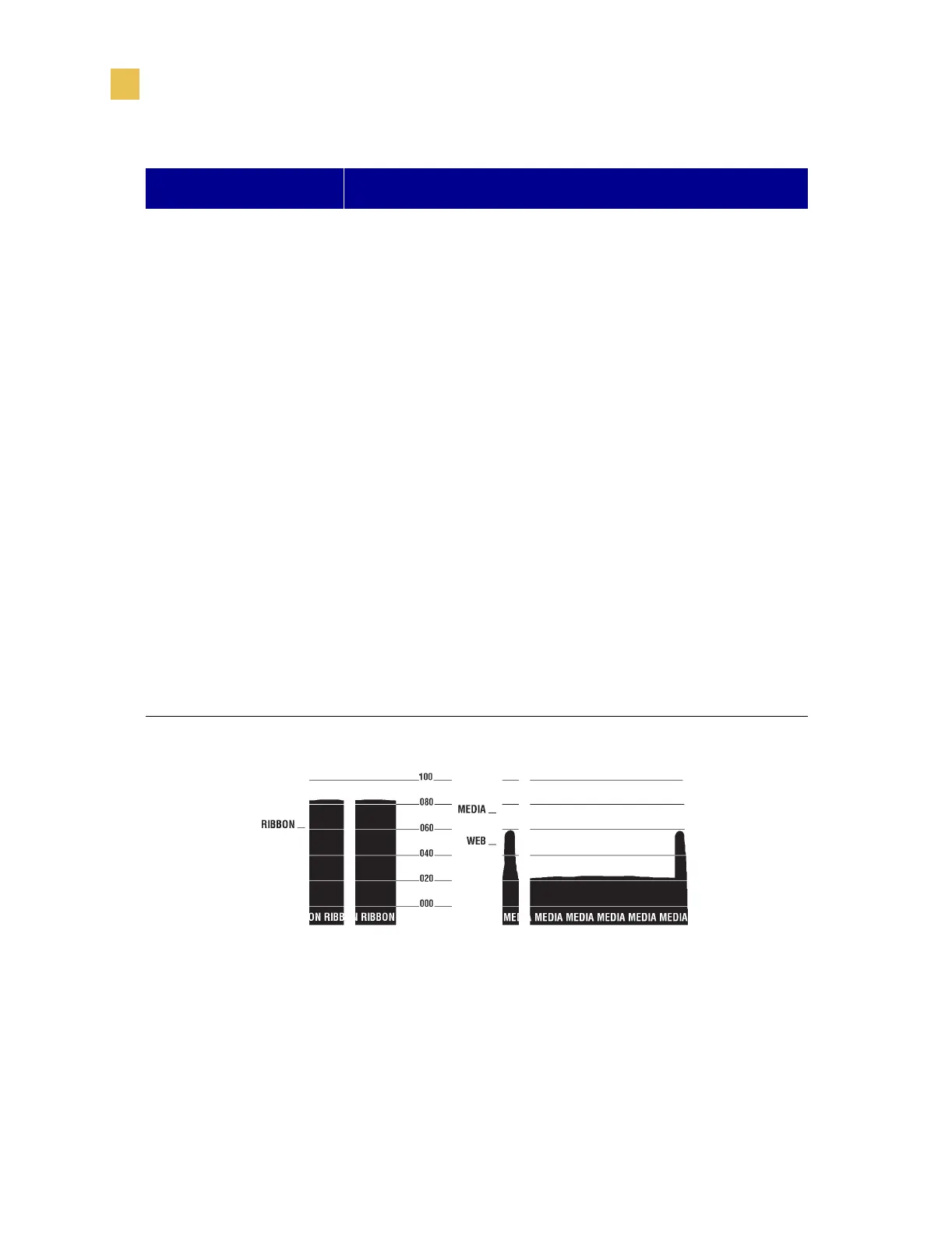

the new readings on the new scale, print a sensor profile. See
illustration below.
Press SELECT to accept the calibration.
Press Plus (+) to go to the next display.
Display Shows Action/Explanation

Zebra Z4Mplus Specifications

General

Print Method	Thermal transfer or direct thermal
Resolution	203 dpi
Max Print Width	4.09 inches
Max Print Length	39 inches
Max Print Speed	10 inches per second
Memory	4 MB Flash, 8 MB DRAM
Interface	Parallel, Serial
Media Sensors	Reflective and transmissive
Media Width	0.79 inches to 4.5 inches
Media Length	0.38" (9.6 mm) to 39" (991 mm)
Ribbon Width	2 inches to 4.33 inches
Power Requirements	100-240 VAC, 50/60 Hz
Operating Temperature	40°F to 105°F
Storage Temperature	-40 to 140°F (-40 to 60°C)
Humidity	20 to 85% non-condensing
