Zebra Z4Mplus - RS-232 Interface Connections

126 Z4Mplus and Z6Mplus User Guide
DB-9 Connectors
Printer Interface Technical Information
RS-232 Interface Connections

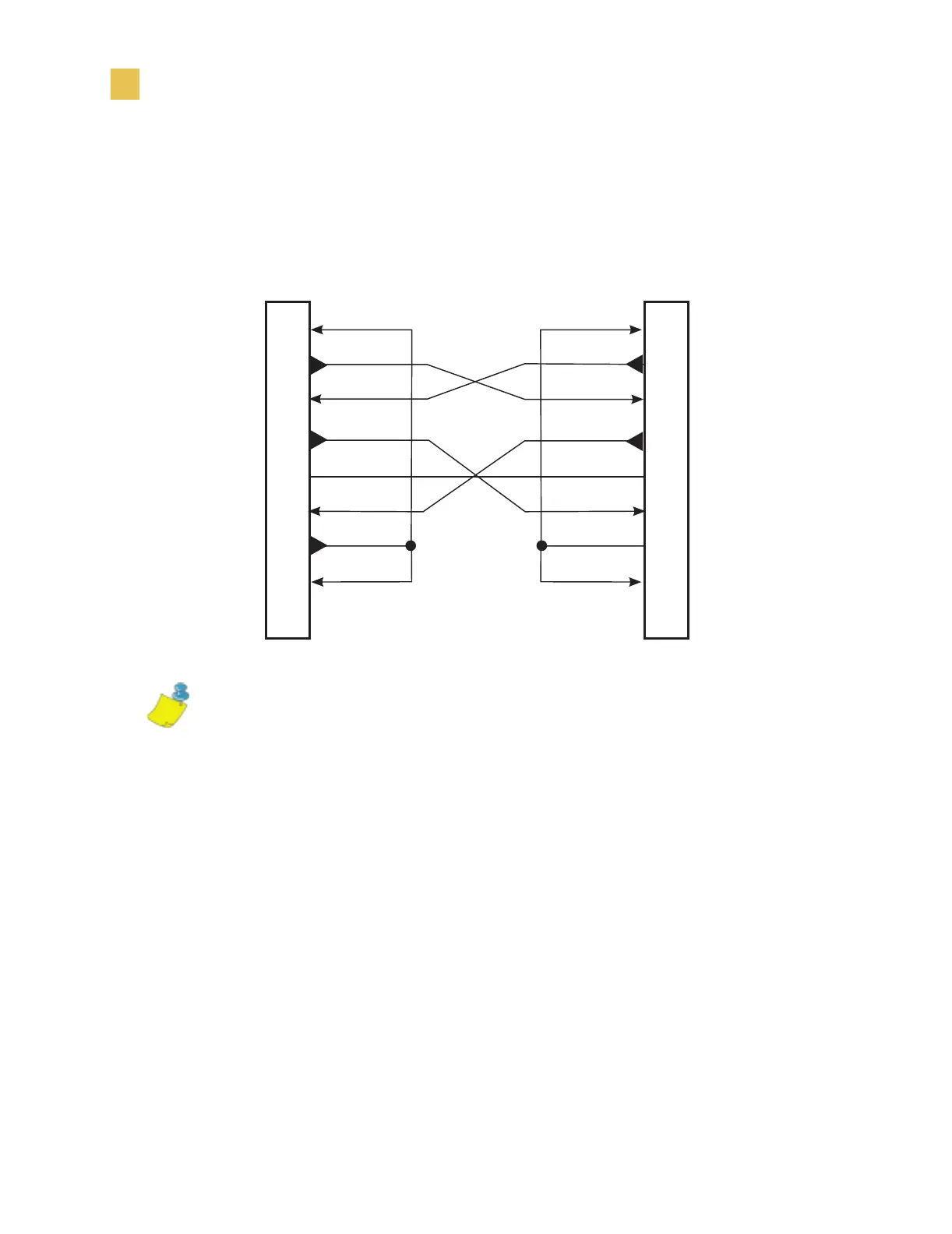

The printer is configured as Data Terminal Equipment (DTE). The illustration below
shows the internal connections of the printer’s RS-232 connector.
Note • The cable used to connect the printer to a computer must be a null modem
(crossover) cable. If you want to connect the printer to any other DTE devices, a
null modem cable must also be used.
1
(TD)
(TD)
(RD) (RD)
(RTS) (RTS)
(DSR) (DSR)
(SG) (SG)
(DTR) (DTR)
DTE DTE
1
22
33
44
55
66
77
88
99
