5: Replacement Procedures
Procedures
P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 131

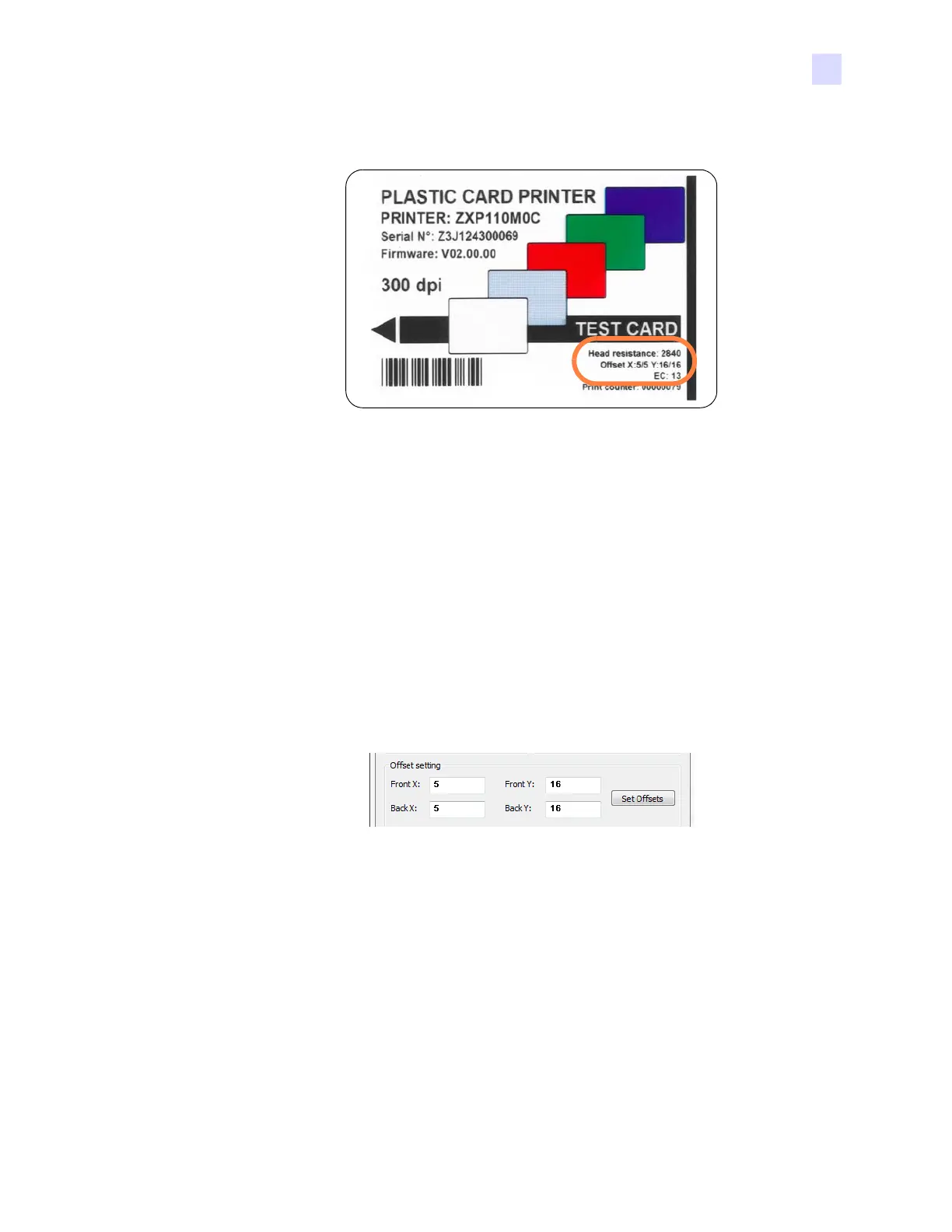

Step 4. From the information on the Standard Test Card, update the printer’s parameters.
a. In the Command to send to printer field, type the Print Head Resistance (!R)
command, a space, and the resistance of the Printhead. From the Standard Test
Card shown above, the complete command is !R 2840.
b. Click the Execute button.
c. In the Command to send to printer field, type the End of Print (+EC) command,
a space, and the end-of-print value. From the Test Card shown above, the
complete command is +EC 13.
d. Click the Execute button.
e. In the Offset setting section of the Tools display, enter the X and Y offsets for the
card front in the Front X and Front Y fields respectively. From the Standard Test
Card shown above, set Front X = 5 and Front Y = 16.
f. In the Offset setting section of the Tools display, enter the X and Y offsets for the
card back in the Back X and Back Y fields respectively. From the Standard Test
Card shown above, set Back X = 5 and Back Y = 16.
g. Click the Set Offsets button.
Step 5. The Parameter Update is complete.
