5: Replacement Procedures
Procedures
P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 145

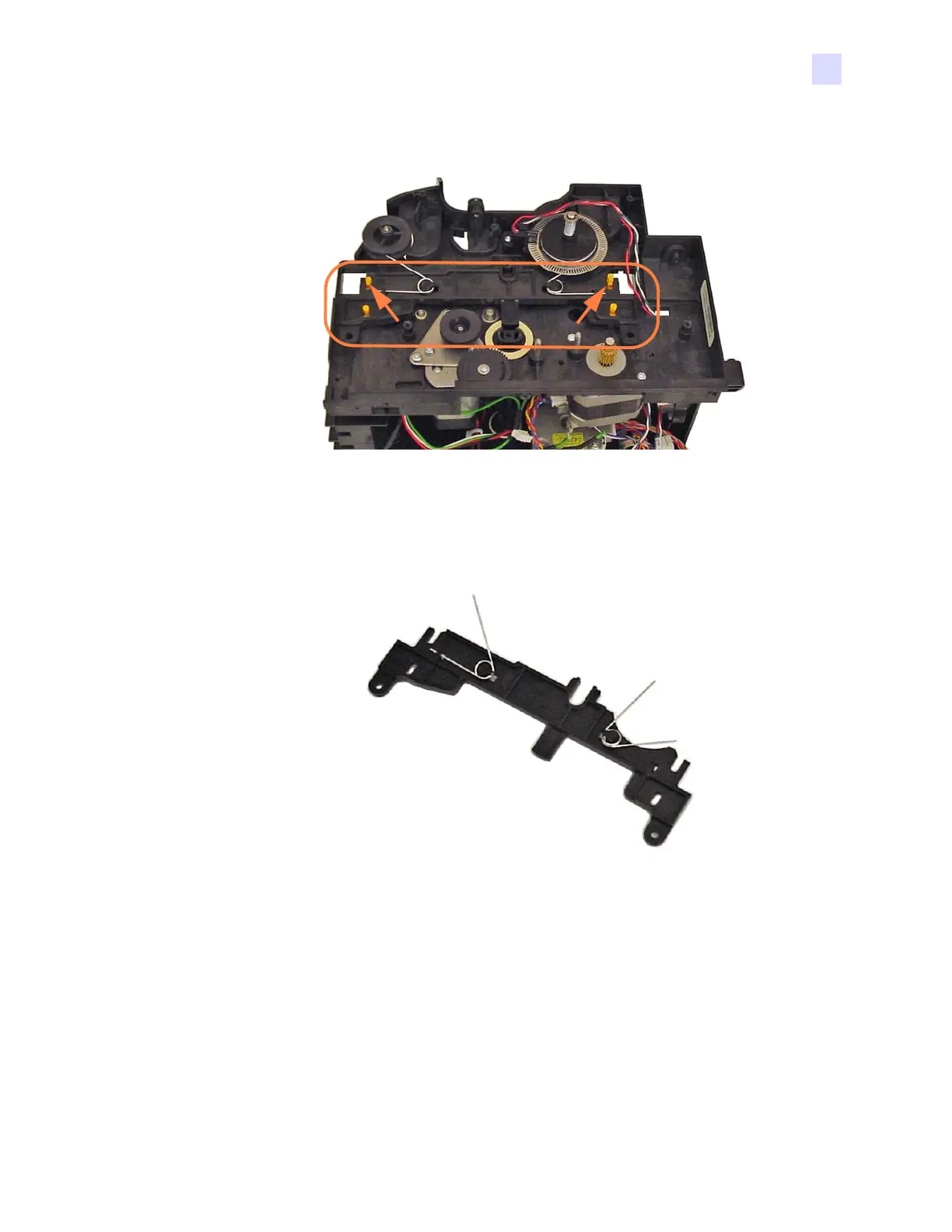

Step 5. Release the two Rocker Springs (arrows below).
Step 6. Remove the Rocker Assembly (circled above).
Step 7. Set the Rocker Assembly aside.
