166 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001
5: Replacement Procedures
Procedures

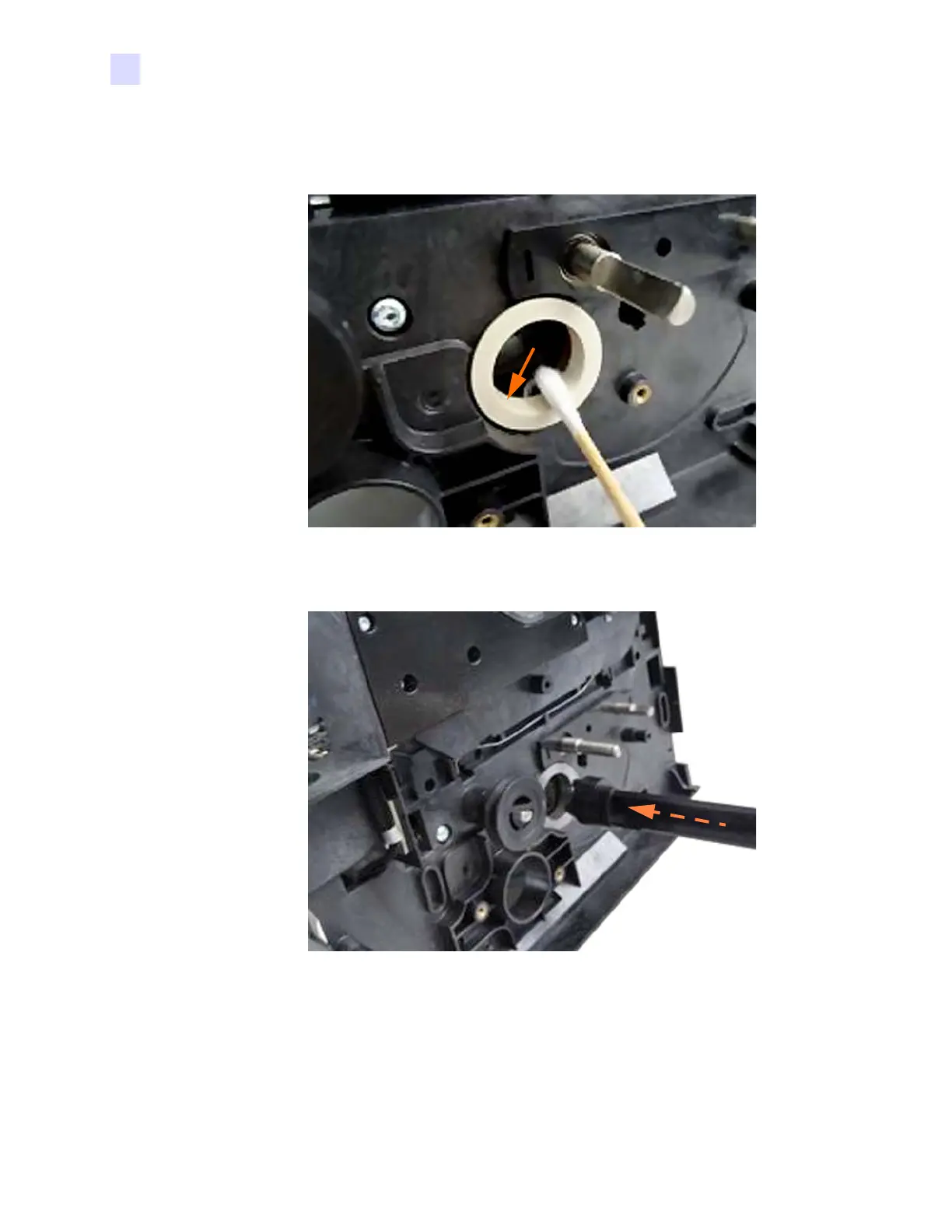

Step 3. Apply Super Lube Synthetic Multi-Purpose Grease to the inside surface (arrow
below) all the way around.
.
Step 4. Slide the Printhead Lift Cam into the Frame.
