Zebra ZXP 1 Series User Manual

5: Replacement Procedures
Procedures
P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 167

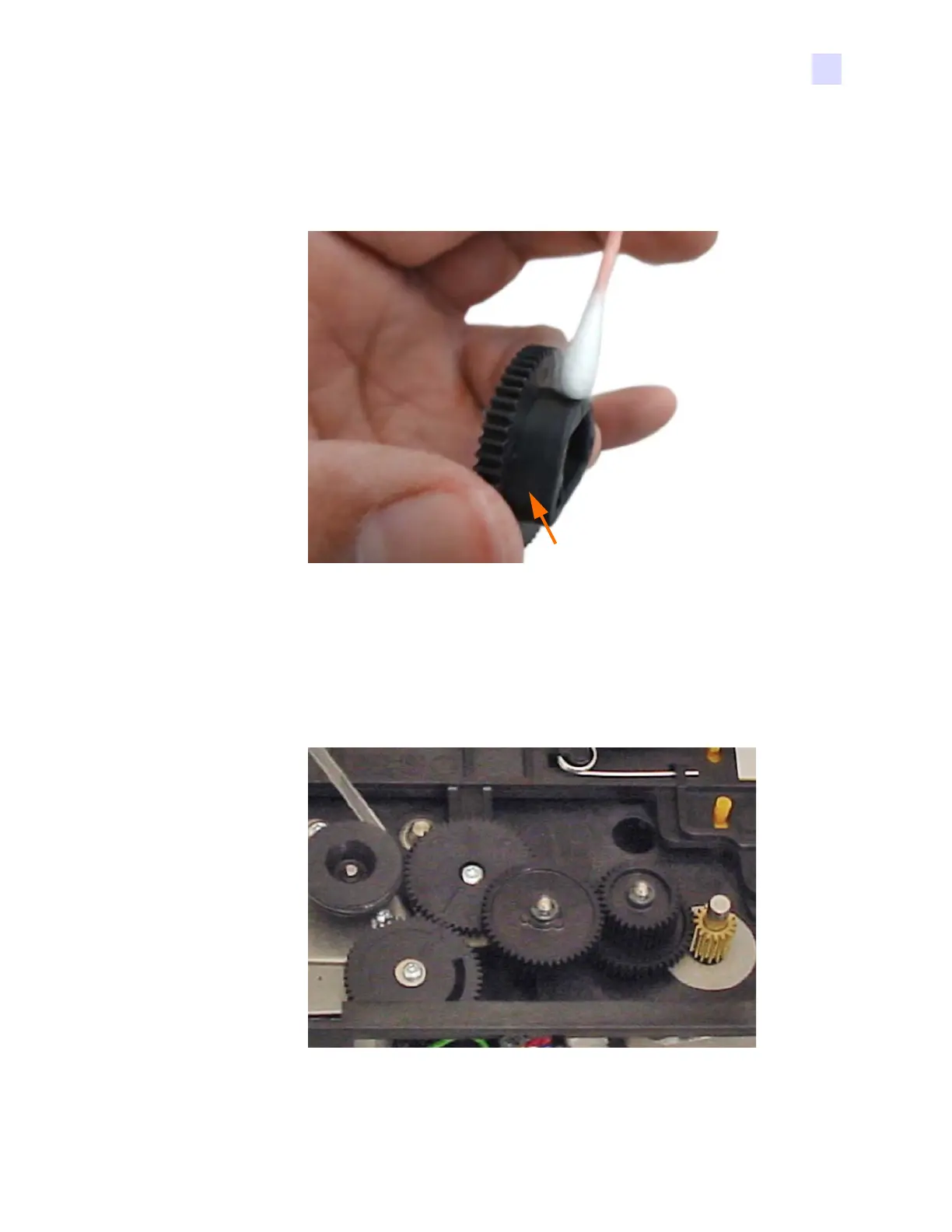

Note the following when re-installing the Gears
a. Before installing Gear #3, apply Super Lube Synthetic Multi-Purpose Grease to
the surface (arrow below) all the way around.
Step 1. Slide the gears on their respective shafts in the order indicated below.
NOTE: Check the part number on the bottom of your printer. If your printer has a
“0” in the sixth position, example Z3x-xxxxx
0xxxxxx, the washer (P1047187)
goes behind Gear #3 (P1038244). If your printer has a “2” in the sixth position,
example Z3x-xxxxx
2xxxxxx, the washer is not used.
#3
#2
#1

Zebra ZXP 1 Series Specifications

General

Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50-60 Hz
Print Technology	Dye sublimation
Card Capacity	100 cards (input hopper)
Card Size	CR-80 ISO 7810
Dimensions	368 mm (D)
Memory	32 MB
Operating Temperature	15°C to 30°C
Operating Humidity	20% to 65% non-condensing
Card Thickness	0.3mm - 1.06mm
