168 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001
5: Replacement Procedures
Procedures
Step 2. Then lock the gears in place (screw for Gear #1, clips for Gears #2 and #3) in
that order.

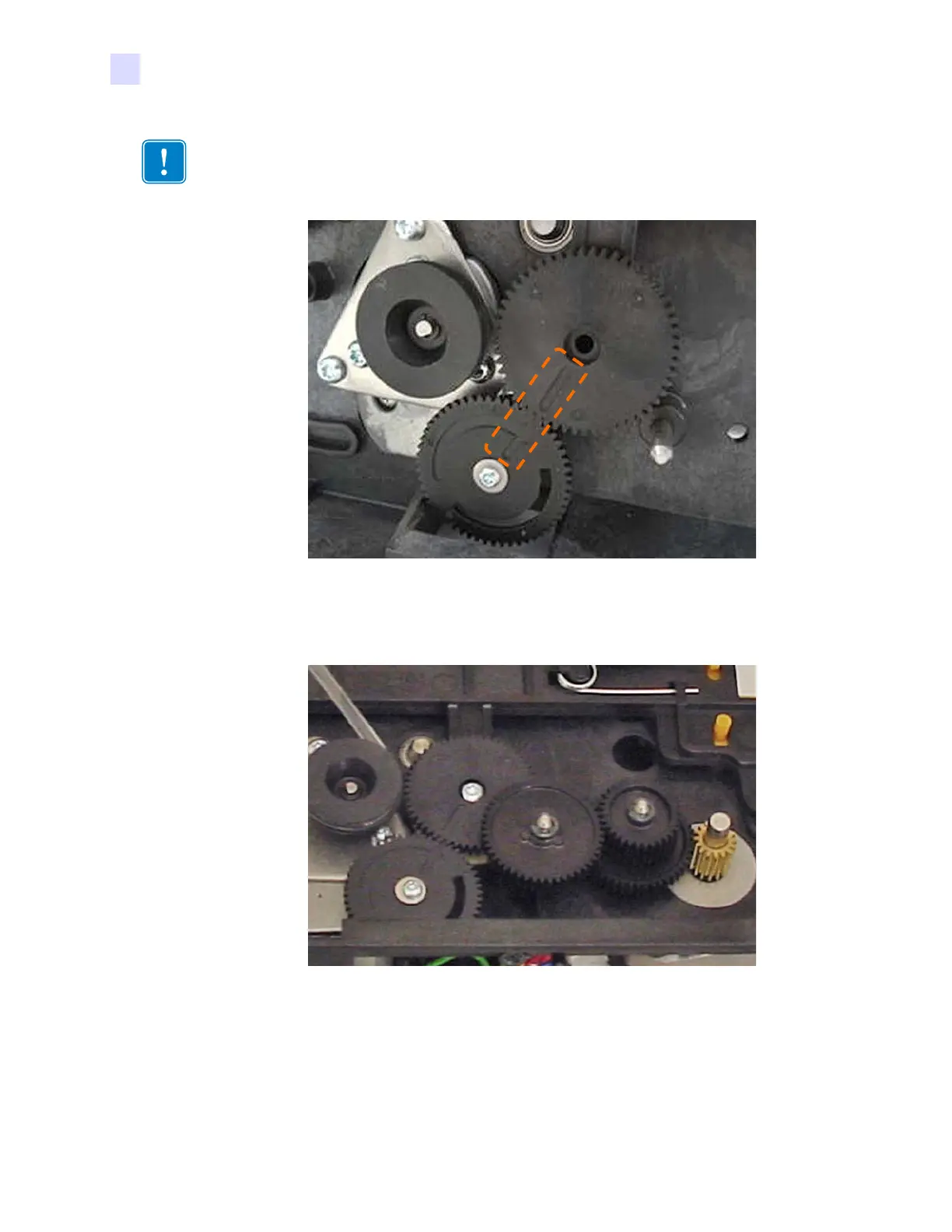

Important • When installing the Gear #1, ensure that the grooves (dashed circle below) are
aligned as indicated.
#3
#2
#1
