Zebra ZXP 1 Series User Manual

F: Half-Panel Ribbon Operation
P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 227
Step 4. Enter the half-panel command.

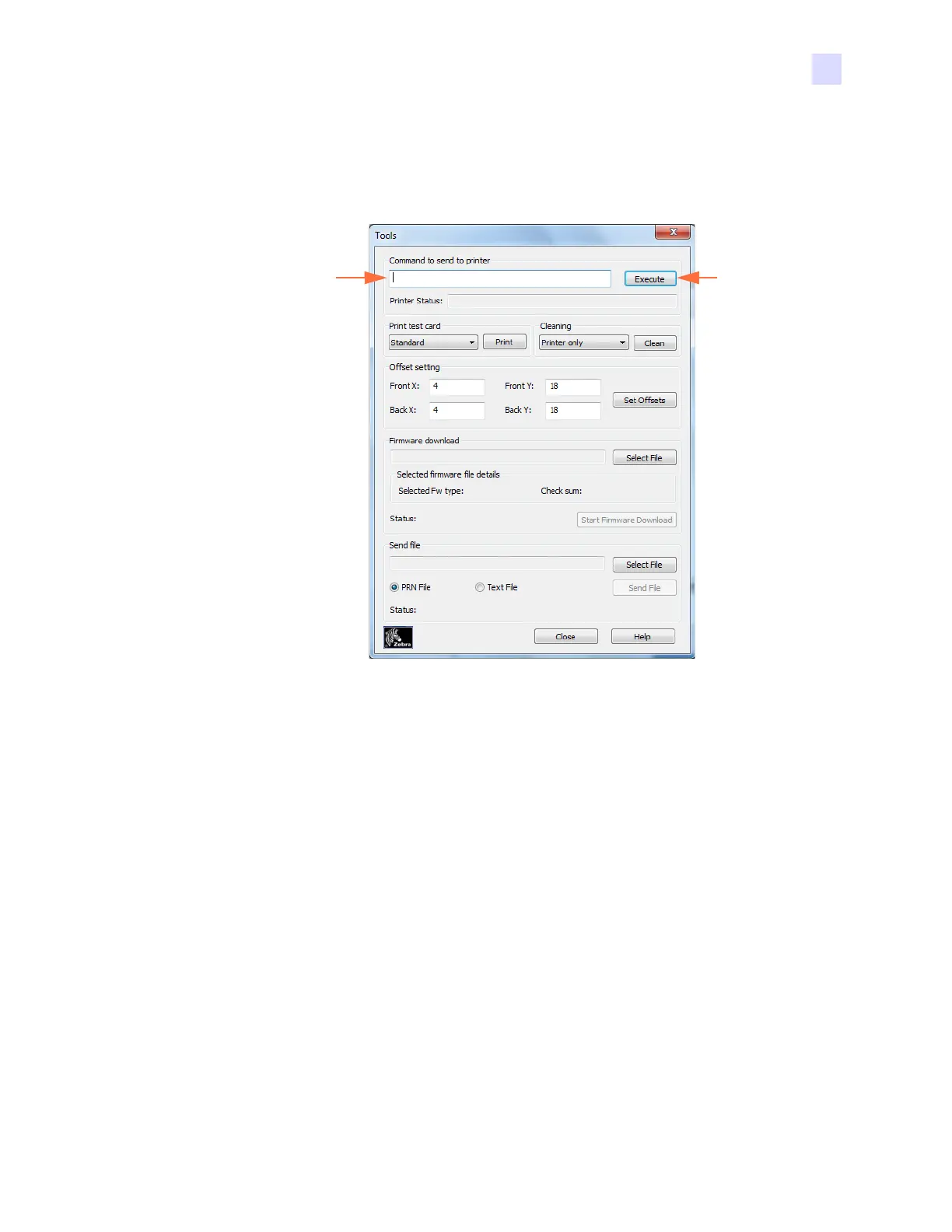

a. From the Tools dialog box, type the command in the “Command to send to
printer” field to position the print window on the card; e.g., HALF 0.
b. Click the Execute button. If successful the printer will respond with <ACK> in
the Printer Status field directly under the “Command to send to printer” field.
c. Click the Close button to close the Tools dialog box.
d. Click the OK button to exit the Printer Properties.
Step 5. From your card printing application, print your card(s).
Type the
command
here ...
... then
click the
Execute
button.
HALF 0

Zebra ZXP 1 Series Specifications

General

Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50-60 Hz
Print Technology	Dye sublimation
Card Capacity	100 cards (input hopper)
Card Size	CR-80 ISO 7810
Dimensions	368 mm (D)
Memory	32 MB
Operating Temperature	15°C to 30°C
Operating Humidity	20% to 65% non-condensing
Card Thickness	0.3mm - 1.06mm
