G: Upgrade Kit Instructions
P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 237
Remove the Left Side Cover
Step 1. Press the Lid Release Button, and raise the Lid.

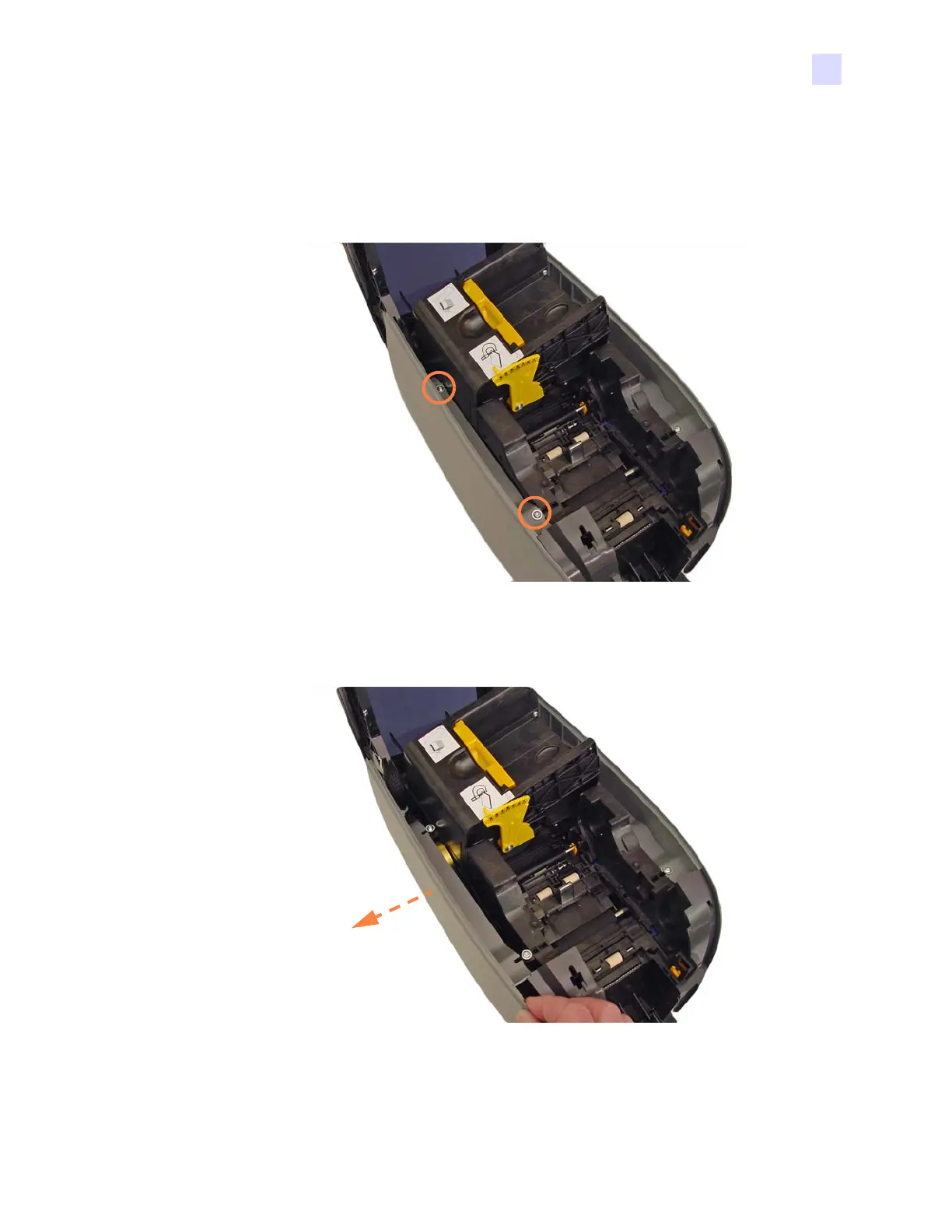

Step 2. Locate the two screws (circled below) that hold the Left Side Cover in place.
Step 3. With a TORX T10 driver, loosen the two screws. When reinstalling the cover,
tighten the screws to 9.0 in-lbs.
Step 4. Remove the Left Side Cover.
