240 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001
G: Upgrade Kit Instructions
Remove the Front Bezel

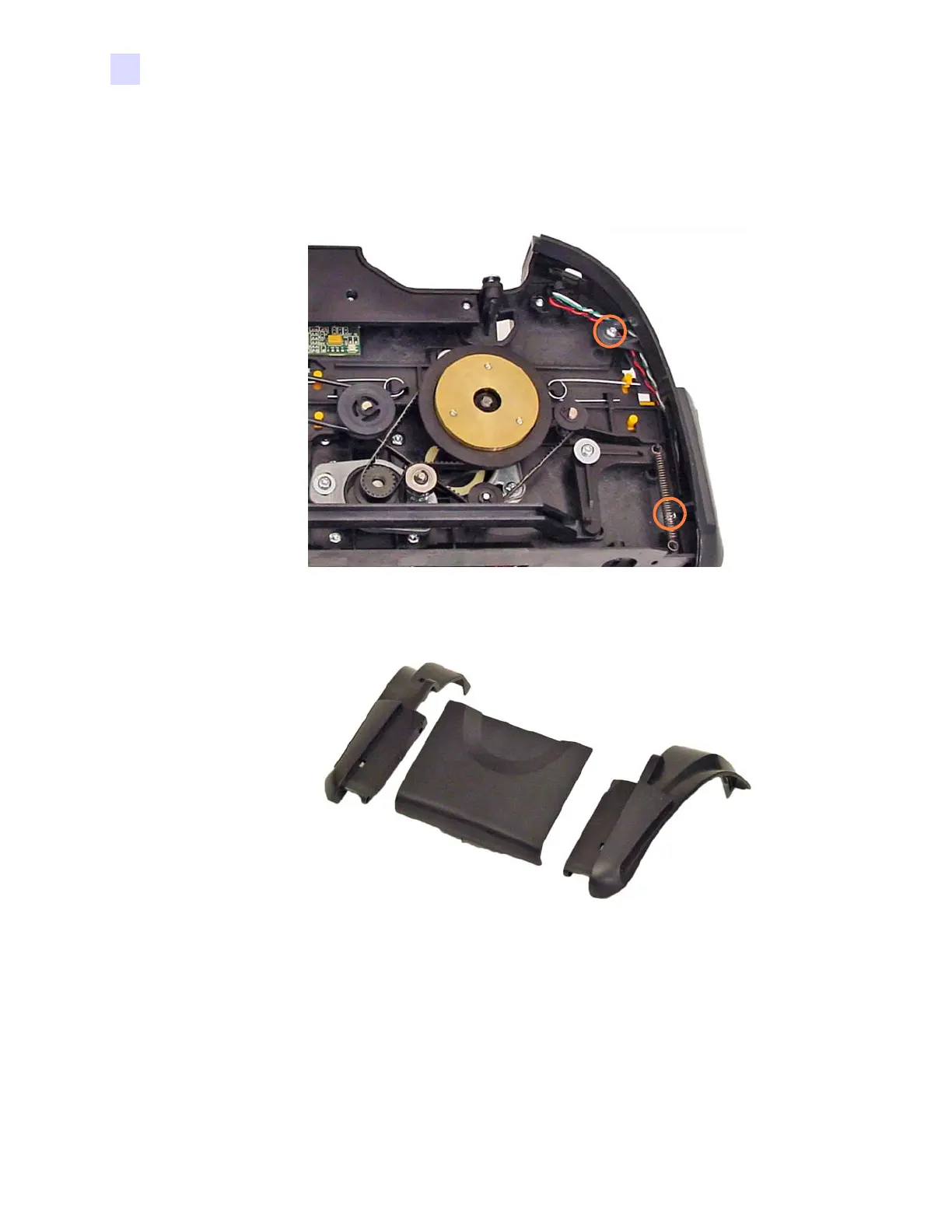

Step 1. With a TORX T10 driver, remove the four screws, two per side, holding the Left
and Right Bezels to the Frame; the two left-side screws are circled below.
Step 2. Remove the Front Bezels (and card catcher).
Step 3. Set the Front Bezels aside.
