G: Upgrade Kit Instructions
P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 239
Remove the Bottom Cover

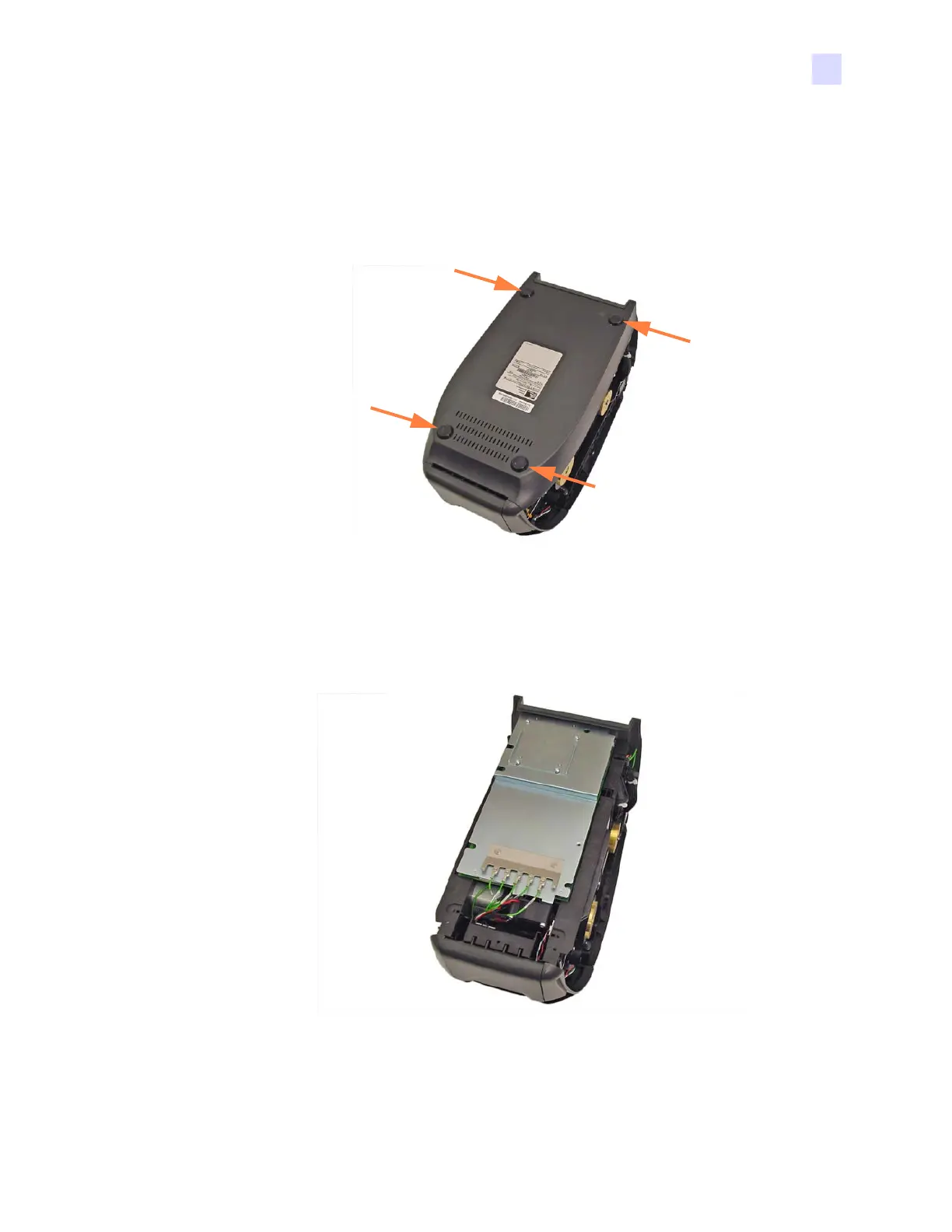

Step 1. Turn the Printer over, bottom-side up.
Step 2. With a flat-blade screwdriver, carefully pry off the four rubber feet (they are held
in place with adhesive).
Step 3. With a TORX T10 driver, remove the four screws (SCR, PLAST, 4-.37L,7.0 in-lb);
see arrows above.
Step 4. Remove the Bottom Cover.
Step 5. Turn the Printer over.
Step 6. Raise the Lid.
To Next Page
