Zebra ZXP 1 Series User Manual

G: Upgrade Kit Instructions
P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 243
Step 11. Peel protective wrapper from the adhesive Cleaning Roller by gently pulling on the
blue tape, and discard the wrapper.

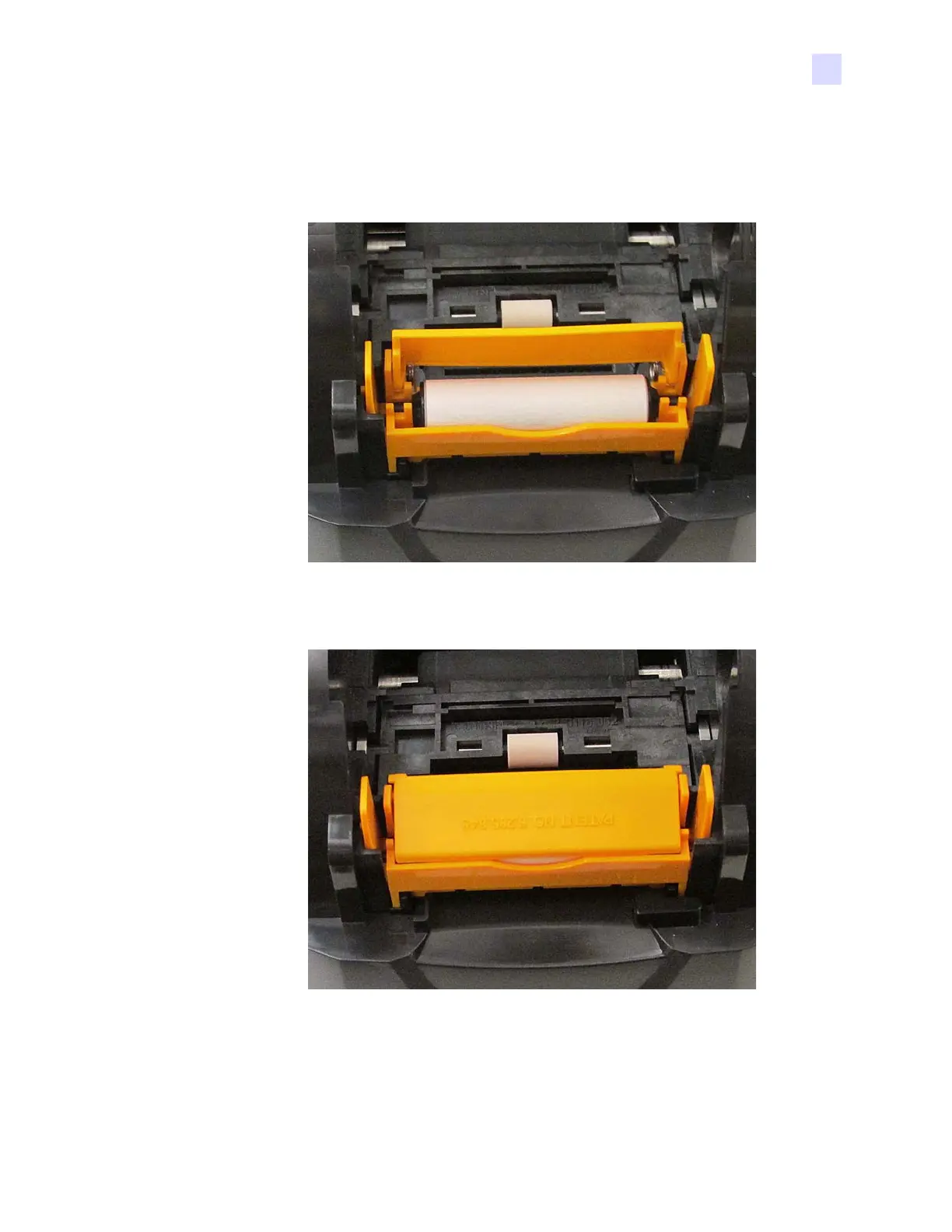

Step 12. Insert the Cleaning Roller into the Cleaning Cartridge Housing.
Step 13. Close the lid of the Cleaning Cartridge Housing.
Step 14. Close the Printer Lid.

Zebra ZXP 1 Series Specifications

General

Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50-60 Hz
Print Technology	Dye sublimation
Card Capacity	100 cards (input hopper)
Card Size	CR-80 ISO 7810
Dimensions	368 mm (D)
Memory	32 MB
Operating Temperature	15°C to 30°C
Operating Humidity	20% to 65% non-condensing
Card Thickness	0.3mm - 1.06mm
