Zebra ZXP 1 Series User Manual

2: Installation and Setup
Changing the Printer Driver Options
P1061942-001 Zebra ZXP Series 1 Card Printer Service Manual 43

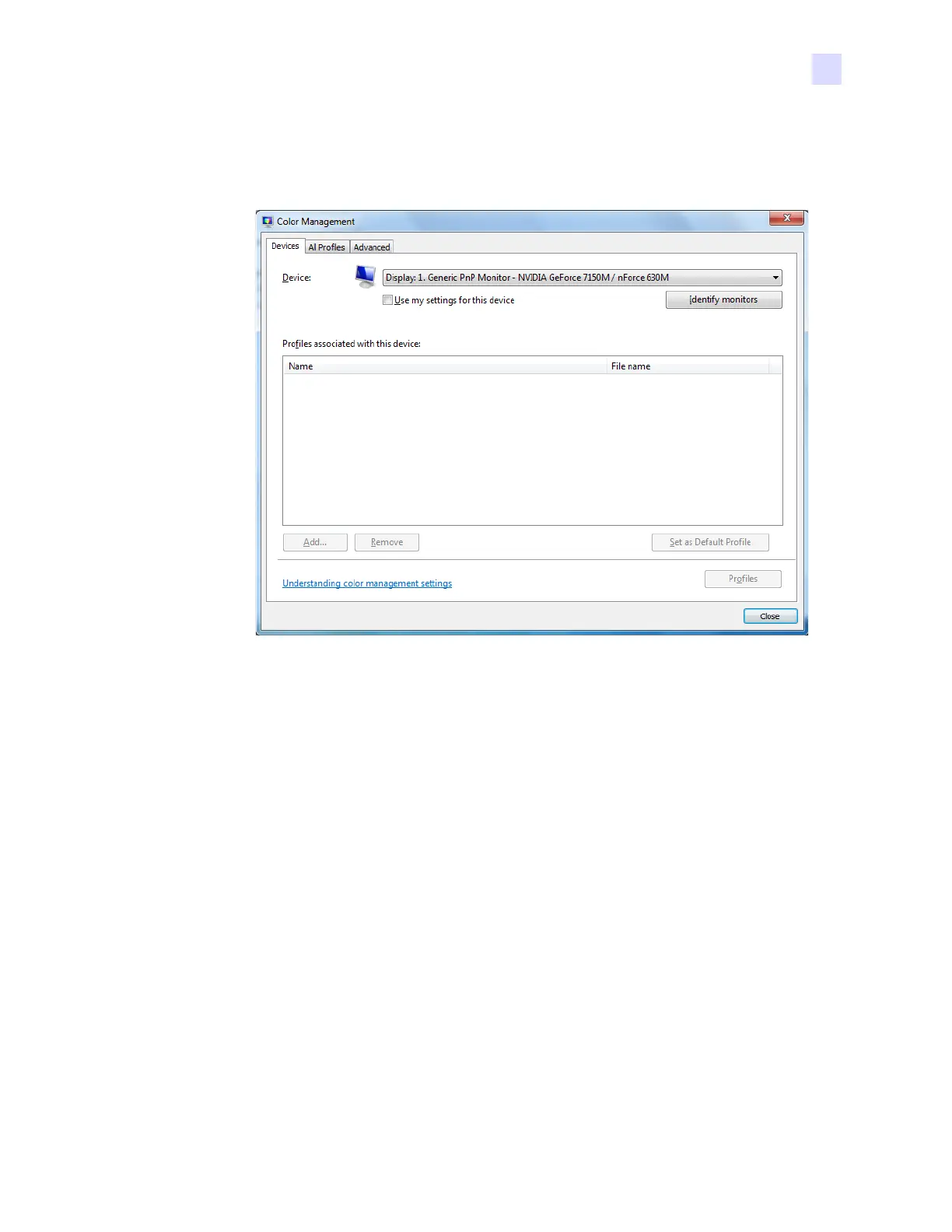

Devices Tab
Use the Devices tab to set your display and printing devices.
The Use my settings for this device checkbox must be selected to enable the following
button functions:
•The Add button allows you to add additional profiles to the color profile list.
•The Remove button allows you to remove profiles from the color profile list.
The Set As Default button allows you to set the selected profile as the default profile.

Zebra ZXP 1 Series Specifications

General

Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50-60 Hz
Print Technology	Dye sublimation
Card Capacity	100 cards (input hopper)
Card Size	CR-80 ISO 7810
Dimensions	368 mm (D)
Memory	32 MB
Operating Temperature	15°C to 30°C
Operating Humidity	20% to 65% non-condensing
Card Thickness	0.3mm - 1.06mm
