Zebra ZXP 1 Series User Manual

44 Zebra ZXP Series 1 Card Printer Service Manual P1061942-001
2: Installation and Setup
Changing the Printer Driver Options

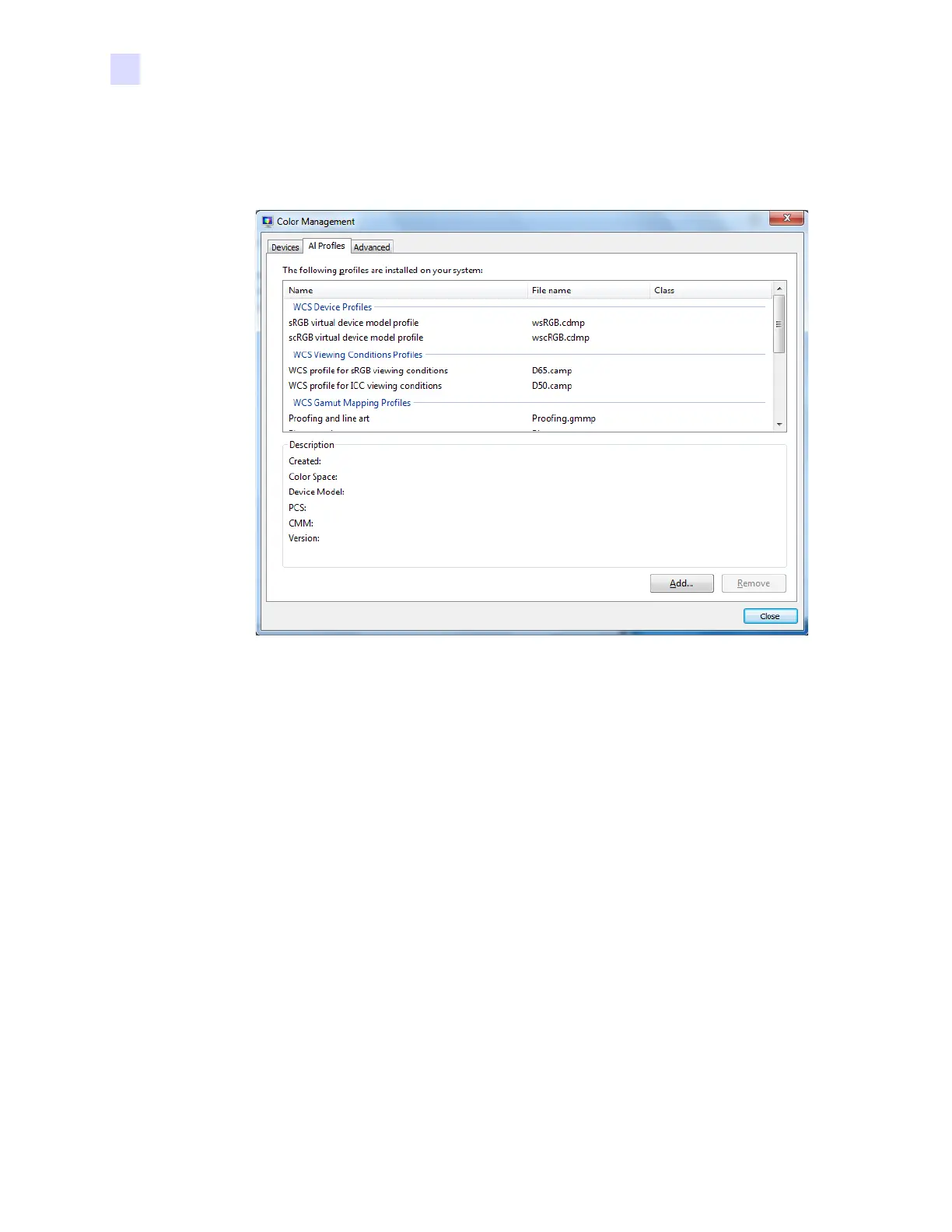

All Profiles Tab
Color profiles are usually added automatically during the installation of new devices.
If you need to install a new profile, follow these steps:
Step 1. Click on the Add button.
Step 2. Observe the Install Profile browse window.
Step 3. Locate the desired color profile.
Step 4. Click on the Add button (in the Install Profile browse window).

Zebra ZXP 1 Series Specifications

General

Resolution	300 dpi
Connectivity	USB 2.0
Power Requirements	100-240 VAC, 50-60 Hz
Print Technology	Dye sublimation
Card Capacity	100 cards (input hopper)
Card Size	CR-80 ISO 7810
Dimensions	368 mm (D)
Memory	32 MB
Operating Temperature	15°C to 30°C
Operating Humidity	20% to 65% non-condensing
Card Thickness	0.3mm - 1.06mm
