OPERATION
Carl Zeiss Operating the motorized microscope via the touchscreen of the TFT display Axio Imager
122 430000-7344-001 M70-2-0020 e 06/2009
(2) Reflector tab
With the controls on this tab, you can configure
the reflector turret.
The tab shows up to ten buttons dependent on the
actual number of positions on the reflector turret,
which is detected by the system during
initialization (and on activation of the
Settings/Components page). As long as you have
not configured any reflectors yet, the buttons are
labeled only with the numbers of the turret
positions.
After you configured a reflector position, the
following data will be displayed: Designation
(Type), Reflected-light module (RL), Transmitted-
light position / module (TL).
• To start configuring a reflector turret position,
press the corresponding button.
• In the Configure reflector position # popup
window, you can choose the respective reflector
from the list. In the Resulting Configuration
line, you can read the current selection.
• Press the button for RL and/or TL, as
appropriate.
• Press the Save button. If the turret position was
already configured, a safety query will appear.
The type of module can first be chosen from the
reflector list:
− Contrast module
− Optovar
− Beam splitter
− Filter
− Fluorescence filter set
Under Contrast modules and Optovars, the selection can subsequently be specified via the
subselection options provided on the right-hand side.
The same applies to Beam splitter. Please note that additional laser safety functions are activated when
LSM components are selected. For more details, see the LSM Operator Instructions.
Empty modules and RGB modules can be found in the Filter list. RGB filters are used, for example, when
color images are to be generated with a monochrome camera via the multi-channel image recording
module within the Axio Vision software. This option is used exclusively in transmitted light.

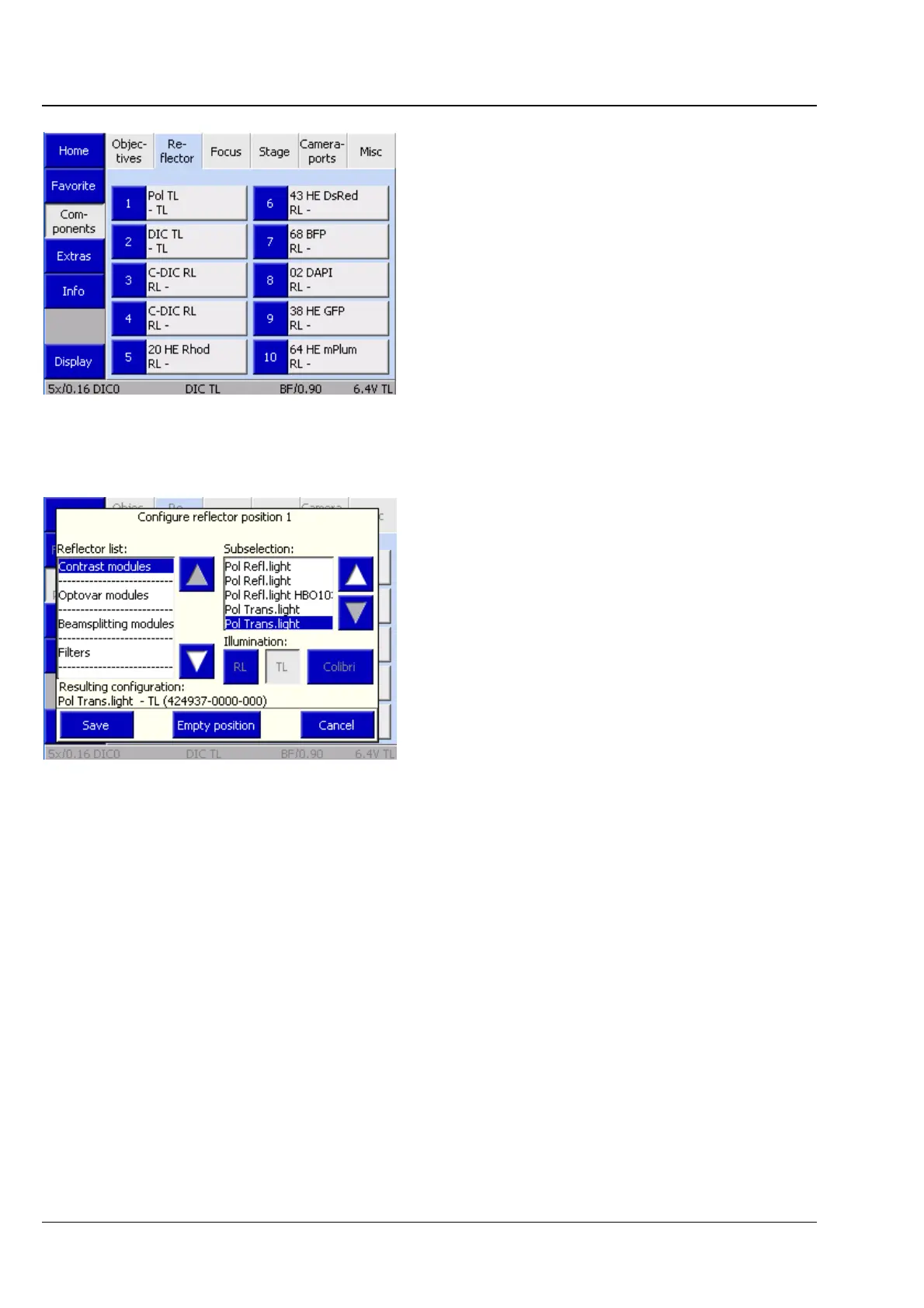

Fig. 4-61 Microscope -> Settings ->
Components -> Reflector
Fig. 4-62 Configuring the reflector position
