OPERATION
Axio Imager Operating the motorized microscope via the touchscreen of the TFT display Carl Zeiss
M70-2-0020 e 06/2009 430000-7344-001 123
Instead of fluorescence filter sets, just dyes may be selected. If this is the case, the user would choose the
relevant dye from the subselection options listed.
Fluorescence filter sets can be selected by their numbers. Additionally, a suitable dye may be picked for
each filter set from the submenu.
Once a new reflector has been allocated, the relevant reflector button on the Microscope
operation page will show the corresponding information.
Configuring a reflector position, using Colibri
as a source of illumination
Once Colibri has been recognized and configured
as a source of illumination, an appropriate LED can
be selected for each filter set or dye.
• To do this, press the Colibri button.
• From the following pop-up menu (Fig. 4-64),
pick one or several LEDs matching the reflector
position selected.
• As an alternative, an optionally installed white-
light source (HXP 120) can be picked as well.
Note that LED and HXP cannot be chosen at the
same time.
• Acknowledge the selection procedure by
pressing Save or press Cancel to discard the
selection.
• Acknowledge the selection procedure a second
time by pressing Save or press Cancel to
discard the selection.
• Acknowledge the safety query with OK.

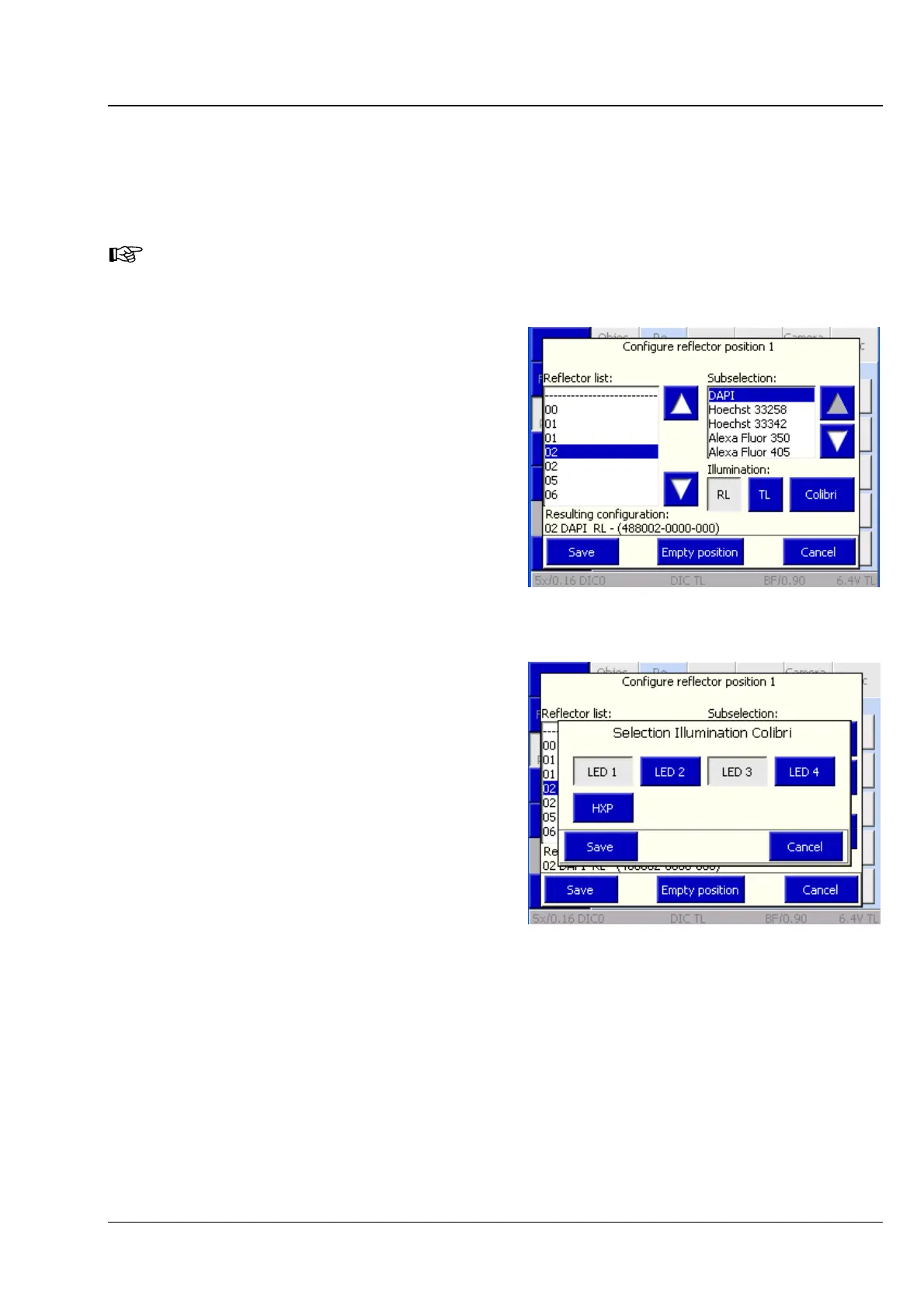

Fig. 4-63 Configuring the reflector position
using Colibri
Fig. 4-64 Selecting Colibri / HXP 120
illumination
