Carl Zeiss Operating the motorized microscope via the touchscreen of the TFT display Axio Imager
132 430000-7344-001 M70-2-0020 e 06/2009
With the second-generation Axio Imager, it is possible to configure a number of positions for
the motorized condenser. This is done, however, within the MTB 2004 configuration program,
with the configuration written directly into the condenser. The following options are available:
− Plate – Serves as a shutter when there is no shutter in the transmitted-light path and an LED
light source is used on the lamp socket or when an LED light source is mounted directly
under the condenser.
− Polarizer
− DIC prisms
Any condenser configured by the user in this way is fully integrated in the light and contrast
manager. This means the following:
− Plate: When the contrast manager is used, any front lens existing is swiveled out, with the
plate moved in front of the transmitted-light path as soon as the fluorescence function is
selected.
− Polarizer: When the POL contrast is selected in transmitted light, the polarizer is
automatically moved into the light path.
− DIC prisms: The correct DIC prism is swiveled in for the objective chosen.
Lens turret
The tube Lens turret allocation selection list
allows the user to choose the appropriate
magnification factor for turret positions 2, 3 and 4.
Reflected-light configuration
Whenever a motorized stop slider or an attenuator
is used in reflected light, the component in
question needs to be specified here. The settings
are transferred through a restart of the instrument.

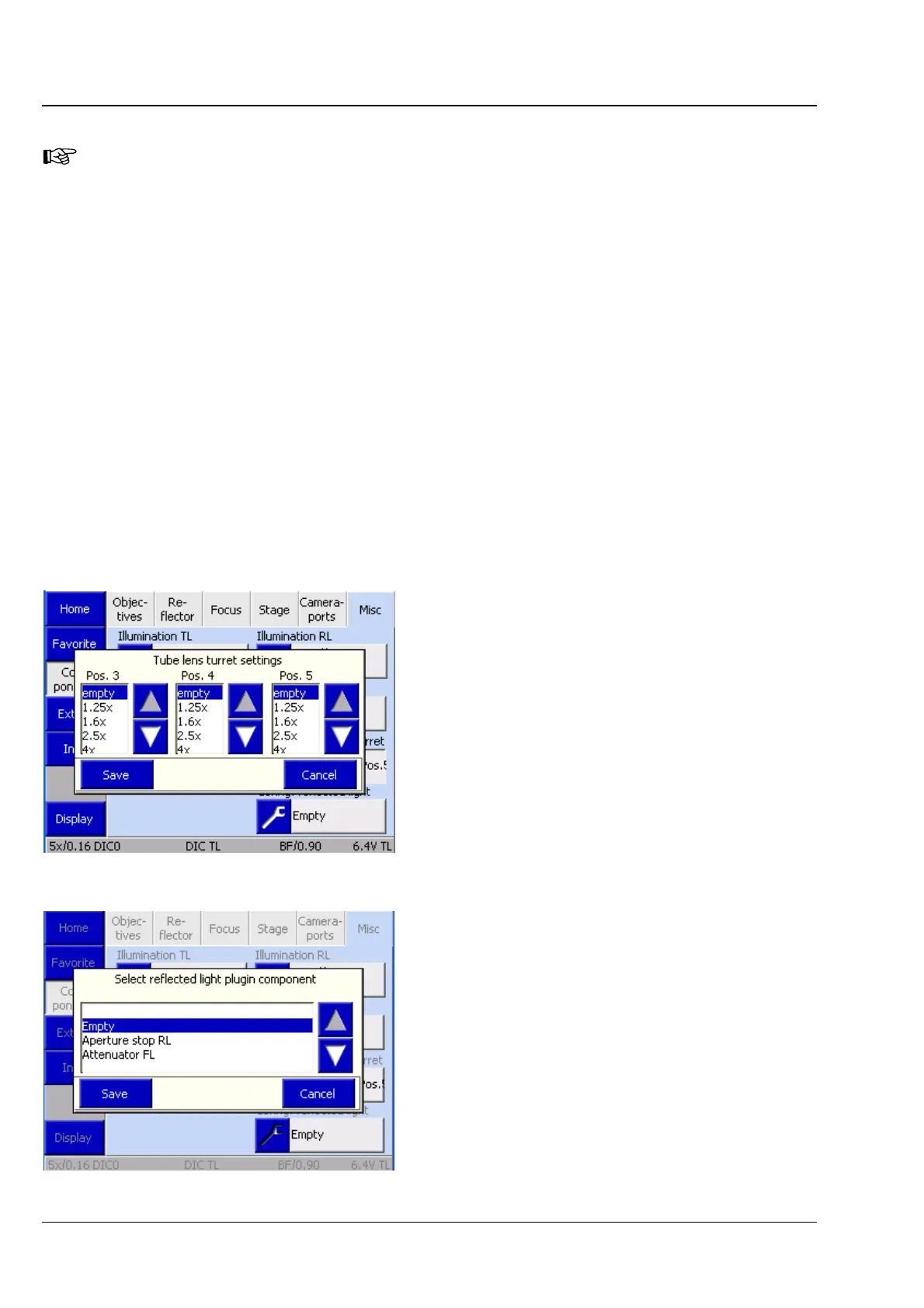

Fig. 4-83 Lens turret
Fig. 4-84 Reflected-light configuration
