4.8.6.2 Extras page
From the Extras page, you can get to the Light
manager, Contrast manager, Oil stop, Dazzle
protection, Ethernet and Miscellaneous tabs.
(1) Light manager tab
This tab allows the user to switch the light
manager on and off.
With the aid of the light manager, light intensity is
adjusted automatically. For its uses, see Section
4.7.
Buttons accessible under Load light manager
values:
The User-defined button serves to load that the
values last saved via the LM set button.
Pressing the Default button will load the factory
settings back in.
New filter set combinations for transmitted light and reflected light (neutral-density filters, as
well as color and neutral-density filters) are offered for second-generation Axio Imagers. Those
filters are fully integrated into the light manager functions. For the sake of clarity, the MTB
2004 configuration program writes those filters directly into the filter wheel, without the user
having to do so through the TFT. What is more, this component is an ACR-enabled component.
This means that the equipment mounted on it is automatically read out by the microscope
during initialization. For this reason, a filter wheel of this type can be installed on every stand
without having to be reconfigured.
(2) Contrast manager tab
This tab serves to switch the contrast manager
globally ON and OFF. These functions come in
handy for the user whenever contrast-dependent
motorized components are not to be moved
automatically.

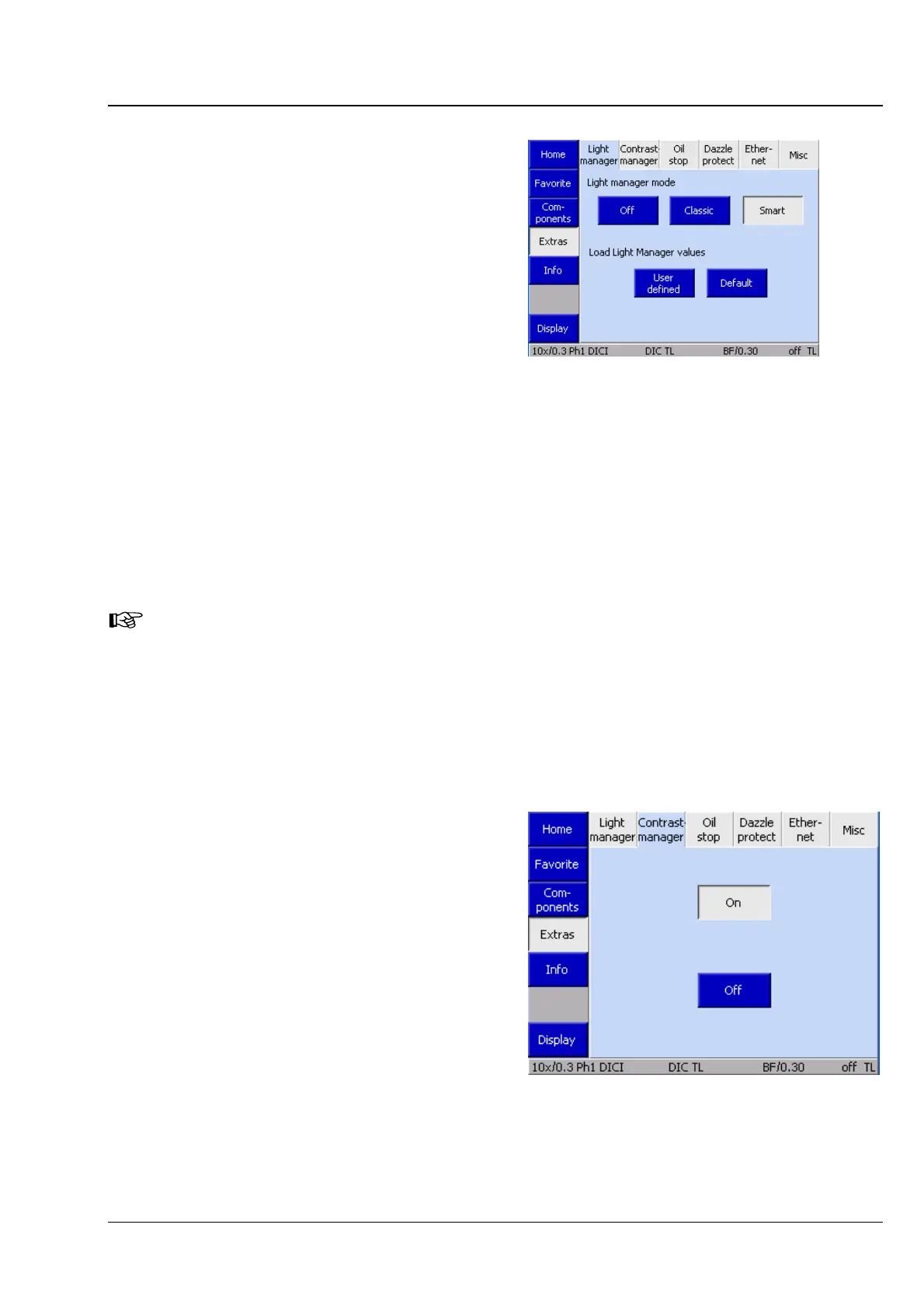

Fig. 4-85 Microscope -> Settings -> Extras ->
Light manager
Fig. 4-86 Microscope -> Settings -> Extras ->
Contrast manager
