OPERATION
Carl Zeiss Binocular phototube 30 /25 mot. with two camera ports (2TV tube mot.) Axio Imager
88 430000-7344-001 M70-2-0020 e 06/2009
You can set the light path and the eyepiece shutter
via the buttons of the control panel (
4-11/4,
4-13/1) on the right side of the tube.
If you activated the dazzle protection via the TFT
display (see Section
4.8.6.2), you can use the
eyepiece shutter instead of the light path shutter.
In addition, the 2TV tube has two receptacles
(
4-14/1 and 2), into which P&C modules (4-14/3)
can be inserted.
One of these receptacles is factory-fitted with a
100% mirror, allowing 100% of the light to be
directed to either the front or the rear TV port.
Two receptacles for P&C modules are available to
the user to install, for instance, an additional beam
splitter for dual camera operation.
• To insert P&C modules into the 2TV tube,
remove the corresponding cover (
4-11/1 and 5)
held magnetically by lifting them off.
• Insert the P&C module(s) and reattach the
cover(s).

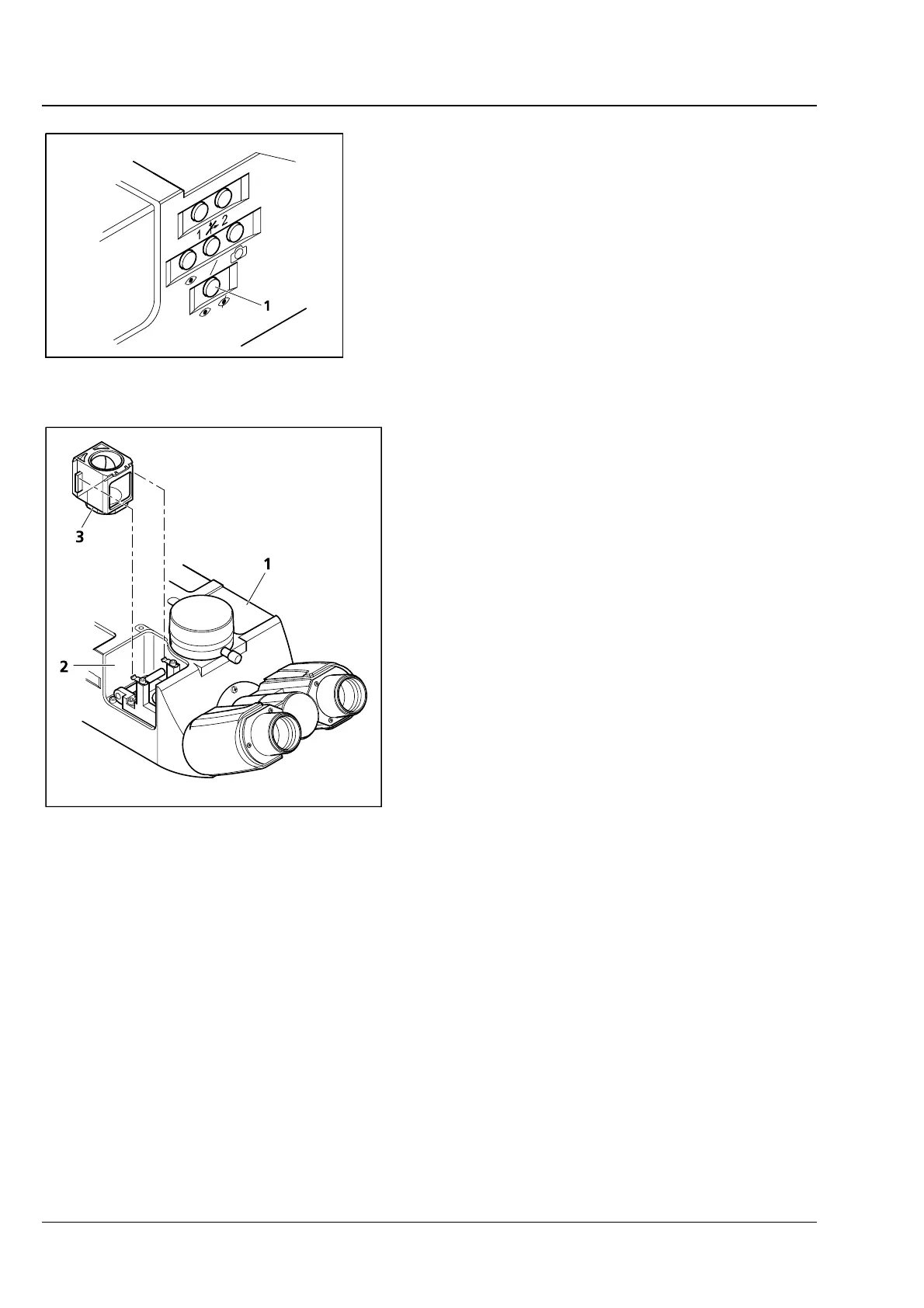

Fig. 4-13 Control panel
Fig. 4-14 Receptacles for P&C modules
