MSC-3 Instruction Manual
MSC-3 Start Up
Connect the input and motor power wiring in accordance with the installation information on pages
9 - 18. Select the terminal conguration you require. Connect the control wiring according to the
appropriate Control Wiring Diagram or follow a quick setup. The MSC-3 is now ready to run. Before
applying power ensure that rotation of the motor shaft will not cause injury or damage.
After applying power it is recommended that you at least go through the B00 MOTOR, C00
PERFORMANCE and G00 INPUT/OUTPUT menus to set up the MSC-3 before running the motor to
present any unexpected motor operation.
The MSC-3 is supplied with a link between the EN terminal and the +5V terminal which is all that is
required to run the MSC-3 from the console. A connection between these two terminals must always be
made for the motor to run.

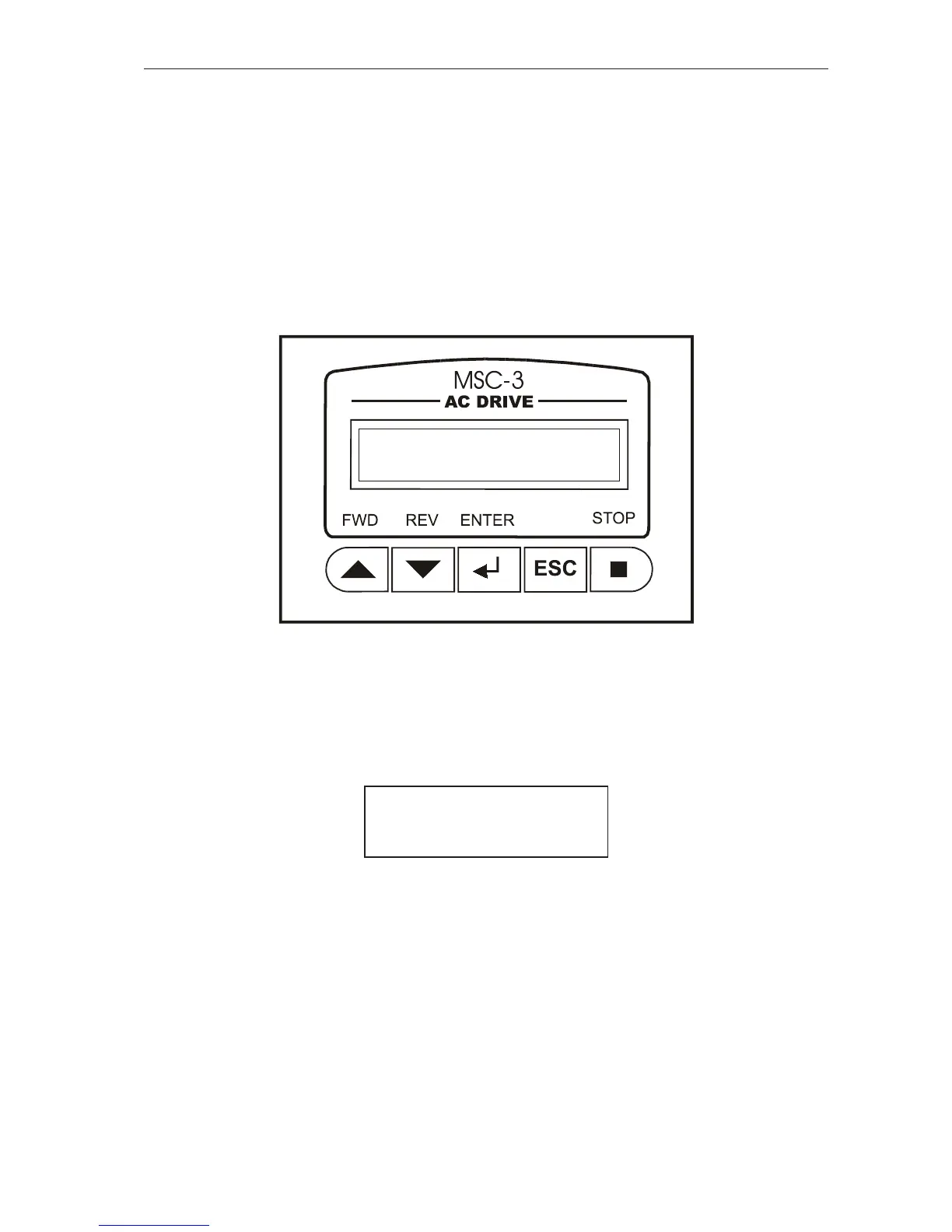

The ve pushbuttons and display form a console through which drive features and settings are altered to
suit the application. When the MSC-3 is rst powered up, the start banner is displayed for approximately
2 seconds. An example of the start banner is shown below. It displays the drive size and software
version. While the banner is displayed the internal fan is switched on to verify its operation. If the fan is
not required it will then be turned off.
R40
Ver 5.0.1
