Zener MSC-3 User Manual

IM00120
75
IM00120
MSC-3 Instruction Manual
C033 DUAL RAMP
C033 DUAL RAMP
> DISABLED
Available Choices: ENABLED
DISABLED
• Press  once to begin.
• Use the ▲ / ▼ buttons to enable or disable the menu lock.
• Press  to conrm the choice.
When this feature is enabled, the C032 S TIME parameter species the acceleration and deceleration
below the C010 MIN Hz setting. Above the C010 MIN Hz setting, the acceleration and deceleration
times are as per C030 ACCEL TIME and C031 DECEL TIME respectively. Note that there is no

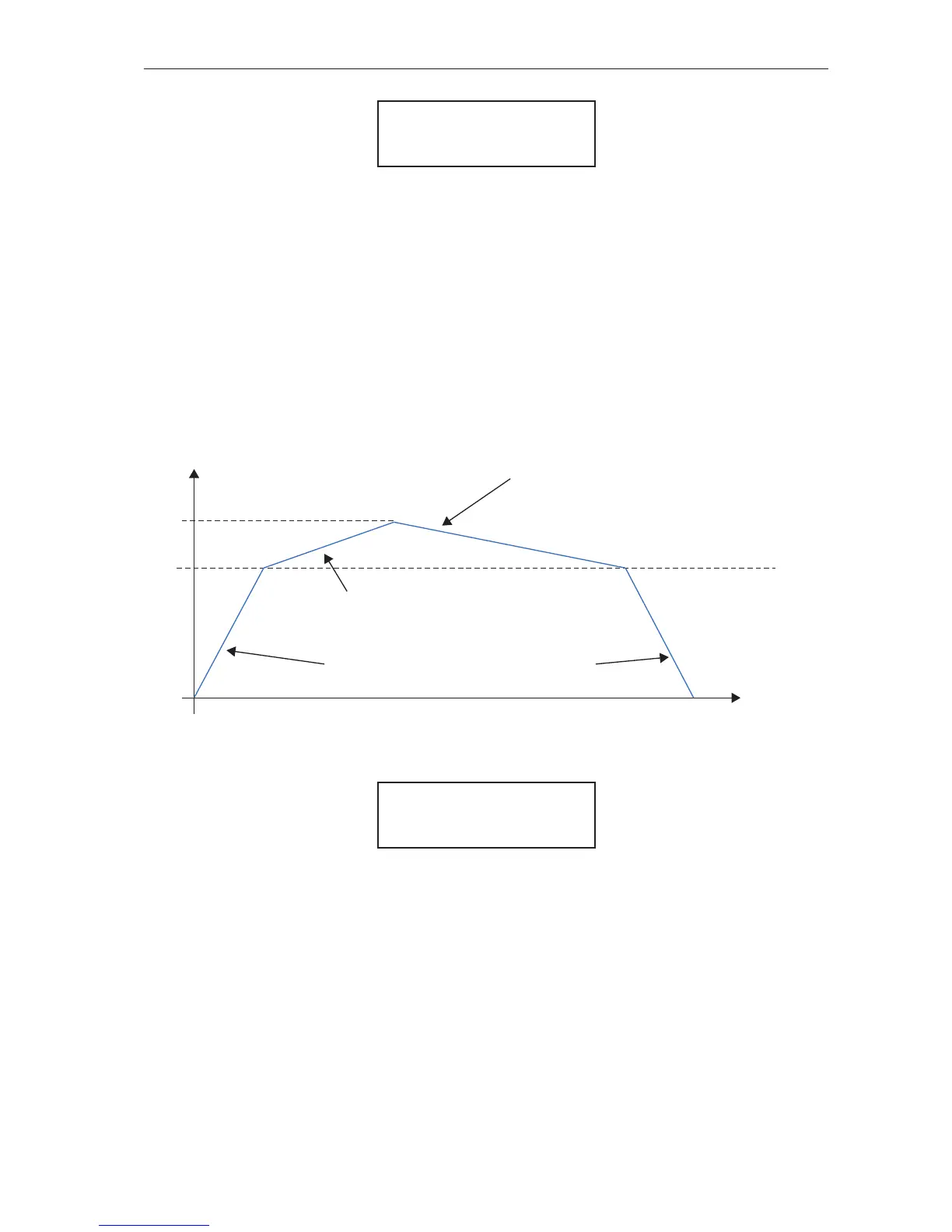

C032 S TIME when this feature is enabled. The following graph demonstrates this feature.
C010 MIN Hz
Speed
Time
Reference
Slope = B03 MOTOR Hz / C032 S TIME
Slope = B03 MOTOR Hz / C030 ACCEL TIME
Slope = B03 MOTOR Hz / C031 DECEL TIME
C034 ESO RAMP
C034 ESO RAMP
10.0 sec
Range: 0.5…600.0 seconds
• Press  to edit the value.
• Press ▲/ ▼ to make changes to the value.
• Press  to accept the new value OR
• Press ESC to abandon the value change.
When the drive is operating in ESO mode it will use the C034 ESO RAMP setting for acceleration and
deceleration instead of the C030 ACCEL TIME and C031 DECEL TIME settings. The ESO Ramp time is
the time taken for the motor to go from zero speed up to motor rated speed (assuming minimum C032 S
TIME). A MSC-3 with the B03 MOTOR Hz set to 50 Hz and an C034 ESO RAMP set to 10 seconds will
take 10 seconds to go from 0Hz to 50Hz.
